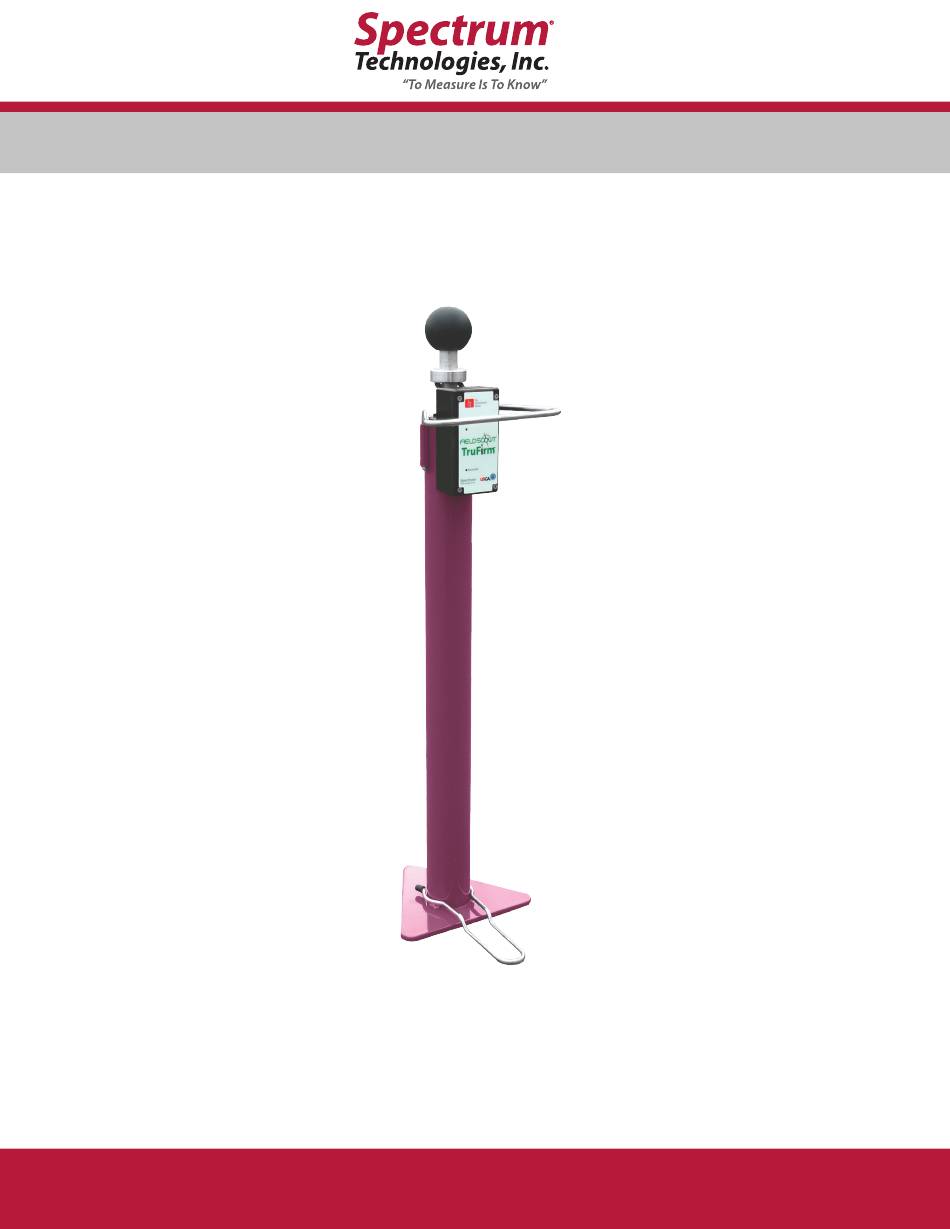

- Page 1 TruFirm® Turf Firmness Meter Product Manual Item #6490S “To Measure Is To Know” “To Measure Is To Know” info@specmeters.com www.specmeters.com 800.248.8873...
-
Page 2: Table Of Contents

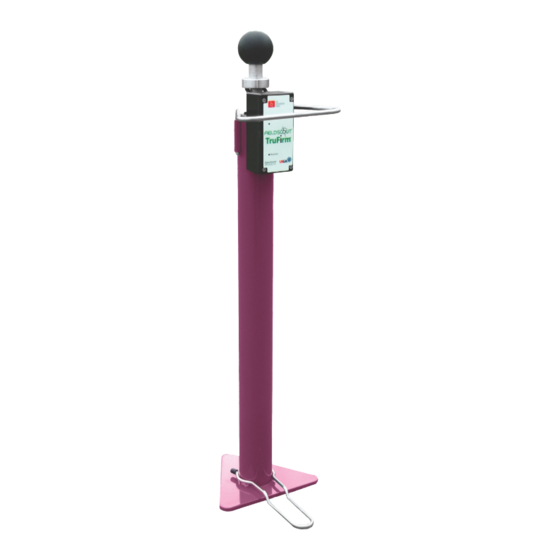

This manual will familiarize you with the features and operation of your new FieldScout TruFirm Turf Firmness Meter. Please read this manual thoroughly before launching the unit. For customer support or to place an order, call Spectrum Technologies, Inc. at 800-248-8873 or 815-436-4440, FAX at 815-436-4460, or e-mail at info@specmeters.com. - Page 3 Components The FieldScout TruFirm Turf Firmness Meter is made up of a Collar (A), Actuator Arm (B), Plunger Shaft (C), Button (D), Base (E) and Foot Support (F) - see below.
-
Page 4: Getting Started
GETTING STARTED Get your meter running in the following steps. Find a tutorial video online at www.specmeters.com/videos. QUICK OVERVIEW Download FieldScout Install 2 AA Batteries Connect SpecConnect Connect FieldScout Device Mobile App (included) Account via Bluetooth SETUP Installing the Batteries The TruFirm meter requires 2 AA Batteries (included). -
Page 5: Trufirm Operation
TRUFIRM OPERATION The TruFirm meter measures the depth the plunger depresses a surface when it is released from a set height. The value of this depth is displayed on an LCD readout. The unit will also display the average of a series of measurements and the num- ber of measurements included in the average on the LCD. -
Page 6: Data Logging & Storage
DATA LOGGING & STORAGE The data collected by the TruFirm Meter can be viewed on a Smartphone in two formats: Basic Grid Mode - Available with or without a SpecConnect subscription. The site is divided into a customizable 2-dimensional grid of 3 to 5 rows and 3 to 5 columns. Measurements are taken in each grid cell. Grid cells are color coded to show the firmness average (Figure 5). - Page 7 RMA number or for the loss of the package by any shipping company. 3600 Thayer Court Aurora, IL 60504 TruFirm is a registered trademark of the United States Golf Association. Form 103 (23-117) 800.248.8873 Rev. A 07/2023 Spectrum and FieldScout are registered trademarks of Spectrum Technologies, Inc. www.specmeters.com...
