Euroseats ET223-FZ01 Assembly Instructions

kantelbaar zit-sta frame - wit

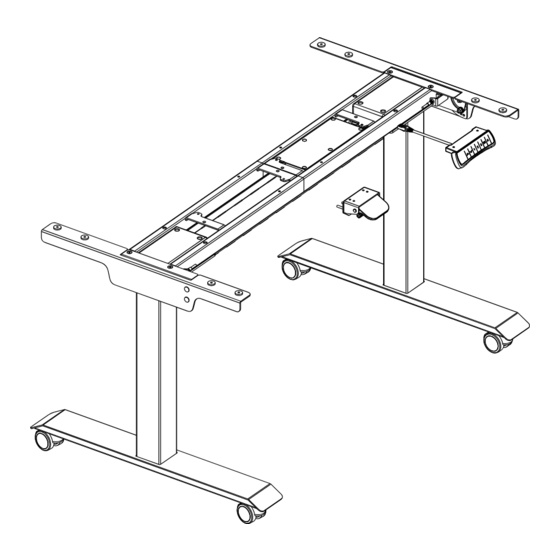

Technical data

3
Column Stage
125KG( horizontality )
Max. Weight Capacity
Height Range 630-1280mm
Width Range 1130-1700mm
0°/60°/70°/80°/90°
Desktop Angle Range

Component list

No. Part Qty No. Part
1 2 2
Feet Lifting Column
Qty No.
No. Part Part
3 1 4
Supporting Beam
Cable Management Tray with control box
Qty No.
No. Part Part
+
5 6
1
Support Plate Assembly Castors (two with brake)
No. Part Qty No. Part
+
7 1
8
Hand Switch(optional) +
Power Plug
Optional Screw

Accessory list

Attention: The drawings below are for guidance only and they may differ
slightly from the product and fittings received. Please contact our customer
service department should you have any queries.
No.
A
M6
B
M6
C
M6
D
St4.2
E
St4.2
F
Cable management
G
St4.2
Allen Key
H
4x4mm
Qty
2
Qty
1
Qty
3
2
4
Qty
8
1
1
6
STEP 1
A
x4
H
4x4
Spec Qty
4
5
12
8
8
4
STEP 2
4
B
x8
4
1
F
4x4
5
STEP 3
7
C
x8
H
4x4
Connect the feet (1) to the lifting column (2) with screw(C), and
tighten it with allen key(H)
Connect the support plate assembly with the supporting beam
Connect the support plate (5) to the supporting beam(4) with screw(A), and
A tighten it with allen key(H)
Install the lifting column
2
H
B
Connect the lifting column (2) to the supporting beam(4) with screw(B),
and tighten it with allen key(H)
STEP 4
Install the feet
H
C
1
6
1
2
Install the casters (6) on the feet(1), two of them with brakes are
installed on the side of the handle as the front side of the table, as
shown in the picture, and tighten with a wrench
H
A
5
4
4
Install the castor
with brake
tighten it
without brake
handle
