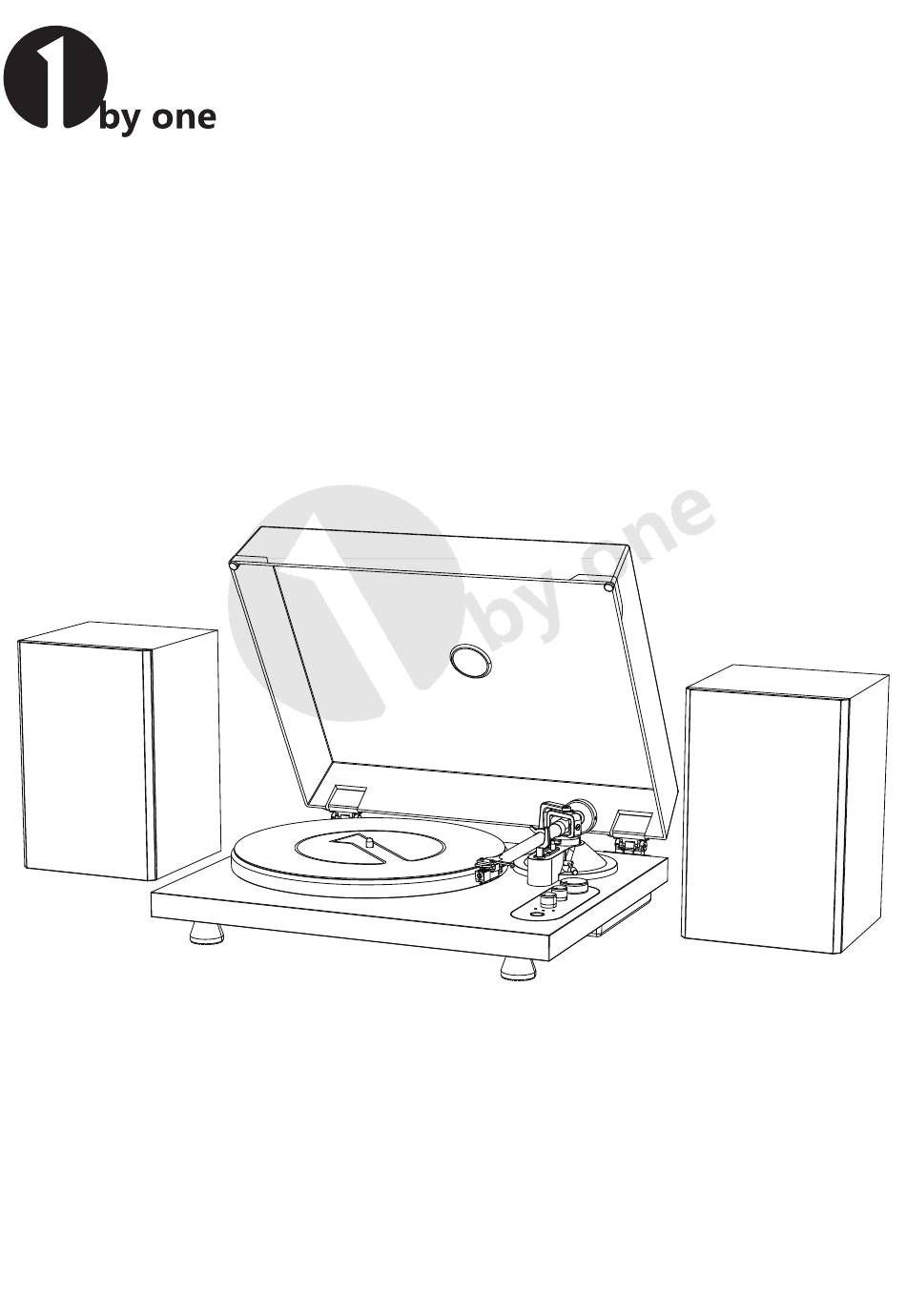

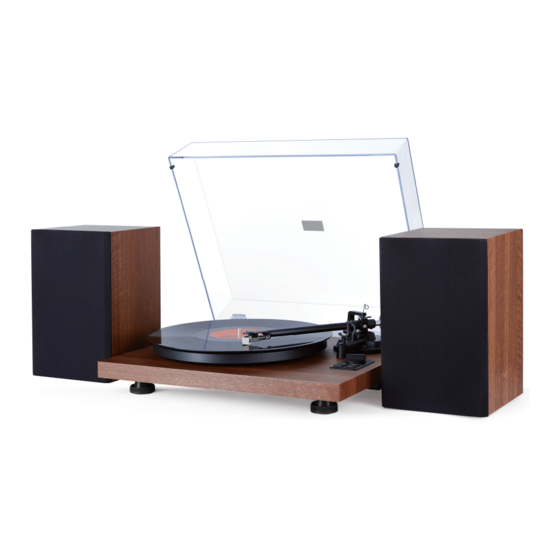

- Page 1 Turntable Hi-Fi System with Speakers Instruction Manual...
-
Page 2: Safety Instructions
Introduction Thank you for purchasing 1byone Turntable Hi-Fi System with Speakers. This instruction manual contains important information about safety, usage and disposal. Use the product as described and keep this manual for future reference. If you sell this turntable or pass it on, also give this manual to the new owner. Safety Instructions Read and understand this entire manual before using this product. - Page 3 11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings. 12. Unplug the product during lightning storms or when unused for long periods of time.
-
Page 4: Product Description
Product Description 2425 1. Motor Pulley 10. Volume Control 18. Phono & Line Out Switch 2. Drive Belt 11. Tonearm 19. USB Port for PC Link 3. Turntable Spindle 12. 33/45 RPM Selector 20. Power Cord Jack 4. Turntable Sub-platter 13. -
Page 5: Included Items
Included Items Before installing the turntable, check the package contents to ensure all parts below are included and free of visible damage. Please retain the original packaging materials for exchange or return purposes. 1 x Turntable Unit 1 x Drive Belt 2 x Speakers 1 x Sub-platter 1 x Turntable Lid... - Page 6 Turntable Platter and Belt Setup 1. Remove the protective packaging and ensure the turntable is placed on a sturdy and level surface. 2. Insert the sub-platter into the turntable spindle located in the middle of the turntable. 3. Loop the drive belt around the sub-platter and motor pulley (brass-colored). 4.
- Page 7 6. Place the slip mat on top of the platter. Make sure the 1byone logo on the mat is facing up. Cartridge Tracking Force Adjustment 1. Gently push the counterweight onto the rear of the tonearm. 2. Carefully push and pull the Counterweight and stop when it reaches the tick mark of recommended tracking force.
-
Page 8: Connecting To Speakers
3. If the counterweight loosens or moves during the usage, please gently turn the screw to make it tight again. Connecting to Speakers 1. Connection to the Included Speakers This turntable includes a built-in preamp and comes supplied with Hi-Fi speakers. Connect the speakers using the included audio cable (black cable to black cable clamp and red cable to red cable clamp). - Page 9 2.1 Setting pre-amplifier selector switch This product has a built-in phono equalizer function. You can use the product even if you do not have a phono amplifier or connectable equipment with a built-in phono amplifier. Use the pre-amplifier selector switch to set the output, as shown below. Connectable equipment Position of pre-amplifier Where to connect RCA...
- Page 10 2.2 Connecting the device Align the settings for the pre-amplifier selector switch and connect the RCA audio cable to an input jack that is compatible with the connectable equipment you are using (amplifier, active speakers, etc.). • The RCA audio cable's red jack is for the right (R) channel, and the white jack is for the left (L) channel.
-
Page 11: Main Power Connection
Main Power Connection 1. Insert the DC plug of the AC adapter cord into the DC INPUT Jack at the back of the turntable. 2. Plug the AC adapter into a normal power outlet. NOTE: Do not plug the AC power adapter into a power outlet before all turntable assembly is completed. - Page 12 2. Turntable Operation Sufficiently lower the volume of the amplifier, speakers, etc. 2.1 Connect the included power adapter to the turntable and slide the Power Switch to the “ON” position. 2.2 Remove the stylus protector from the stylus. 2.3 Place the record on the slip mat. If using 45RPM records, put the 45RPM adapter on the center spindle before placing the record on the platter.
-
Page 13: Wireless Operation
Wireless Operation This appliance is equipped with Bluetooth (TX and RX mode). TX mode allows this turntable to wirelessly transmit audio to your Bluetooth speaker or headphone. In RX mode, you can connect your media device to this turntable and play music through it. 1. - Page 14 2. Set up Audacity to record from the USB audio device. 2.1 Connect the USB device Use the supplied USB cable to connect your turntable and your computer. No extra driver is required. 2.2 System settings needed for Windows and Mac Windows: 1.
- Page 15 2.5 Devices Use Device Toolbar to set the recording and playback devices and to set the recording channels to "2 (Stereo) Recording Channels", as in the below example on Windows 10: • The Recording Device is set to the USB device (in this case the device name, but often called or including the phrase "USB Audio CODEC").
- Page 16 • Try to aim for a maximum peak of around –6 dB, which corresponds to around 0.5 on the waveform. You can always boost the level later with Effect > Amplify... or Effect > Normalize... after you have completed editing. 5. Recording Then, ignoring any instructions in the manufacturer's guide to select "stereo mix", simply press the Record button in Transport Toolbar to start recording from the...
-
Page 17: Replacing The Stylus
Replacing the Stylus It's suggested to replace the stylus after 400 hours of use. Removing the Stylus • In addition to the deterioration of sound quality, records may also be damaged as the cartridge’s stylus tip wears down. • Be sure to disconnect the product’s AC adapter from the outlet. •... -
Page 18: Replacing The Belt
Replacing the Belt • The belt is a consumable part. Replace the belt if the speed of playback slows down or irregular rotation occurs. As a rule of thumb, we suggest replacing the belt once a year. • Before replacing the belt, be sure to disconnect the product’s AC adapter from the outlet. -
Page 19: Cartridge Replacement
4. Using your hands, slowly rotate the platter ten times in the direction of the arrow. 5. Place the main platter back onto the sub-platter. Cartridge Replacement 1. Before replacement, put the stylus protector back on the stylus to prevent damage to the stylus during the replacement process. -
Page 20: When The Turntable Is Moved
5. Connect the wire leads to the new cartridge’s terminals .The wire lead color codes are as below: Wire Channel White Left channel positive (L+) Black Left channel negative (L–) Right channel positive (R+) Black Right channel negative (R-) 6. Adjust the cartridge’s position to make sure it is precisely aligned on the headshell so that the stylus will be appropriately tracking within the grooves. -
Page 21: Troubleshooting
Troubleshooting Problem Solution • Is the AC adapter connected to the outlet? -Connect the AC adapter to the outlet. • What's the status of the indicator light? - The indicator light is off. That means the turntable is not turned on. - Page 22 • Is the record warped? -Check the record. • Is the record scratched? The stylus skips. -Check the record. • Is the tracking force set too light? -Adjust the tracking force correctly. • Is the product picking up excessive vibrations from the floor, surfaces of the walls, or nearby speakers? -Decrease the vibrations or mount the product on a surface that is not subject to the effects of vibrations.
-
Page 23: Specifications
Counterclockwise: Slow down Counterclockwise: Slow down Clockwise: Speed up Clockwise: Speed up Specifications Turntable Model 471NA-0010, LP10 Power AC power adapter, DC output 15V 2000mA Power Consumption Turntable Speed 33 1/3, 45 RPM Wow and Flutter ±0.15%... - Page 24 Stylus Model Audio-Technica AT3600L Frequency Response 20Hz - 20kHz Channel Balance <2.5dB Channel Separation >18dB Output Voltage 2.5mV Recommended Load Resistance 47kΩ Amplifier Connection MM (Moving Magnet) - input Recommended Tracking Force 2.5±0.5g Weight 0.18oz (5.1g) Speaker Output Power 18W*2 Woofer: 4"...
- Page 25 Customer Service/Kundenservice Service Clients/Atención al cliente/Assistenza Clienti Phone: +1 909-391-3888 (Mon-Fri 9:00am - 5:00pm PST) UNITED STATES Email: ushelp@1byonebros.com CANADA Email: cahelp@1byonebros.com Phone: +44 158 241 2681 (Mon-Fri 9:00am - 6:00pm UTC) UNITED KINGDOM Email: ukhelp@1byonebros.com GERMANY/FRANCE Email: euhelp@1byonebros.com ITALY/SPAIN BRAND OWNER 1byone Products Inc.
