1 BY ONE MD950 Operation Manual

Nostalgic wooden turntable
Hide thumbs
Table of Contents

Advertisement

Quick Links

MD950
Nostalgic Wooden Turntable
Operation Guide
PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATION
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD950 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 1 BY ONE MD950

Summary of Contents for 1 BY ONE MD950

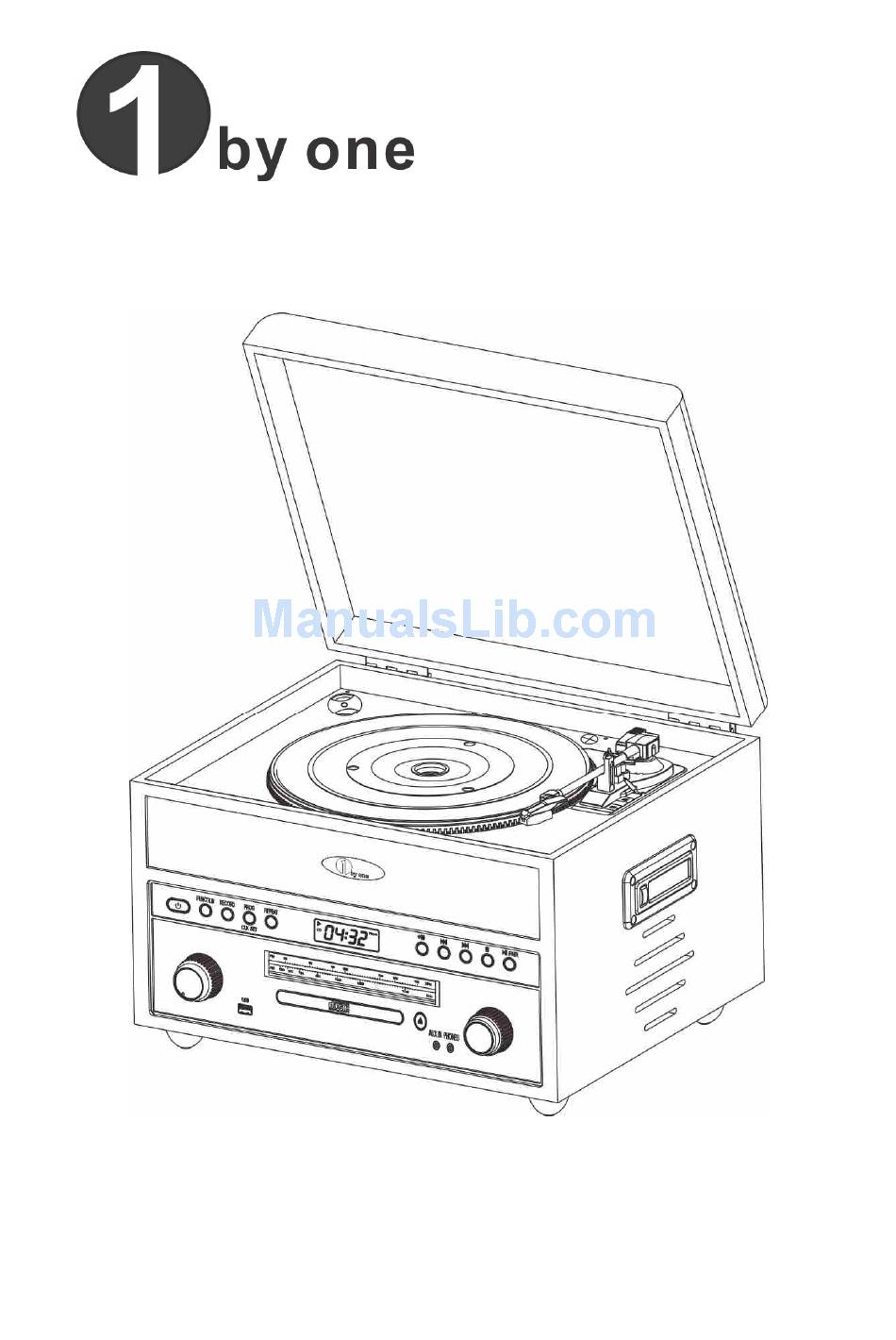

  • Page 1 MD950 Nostalgic Wooden Turntable Operation Guide PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATION...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 3 IMPORTANT WARNING The exclamation mark inside WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK, equilateral triangle DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE intended to alert user of the presence of the important CAUTION operating maintenance RISK OF ELECTRIC SHOCK (servicing) instructions in the DO NOT OPEN literature accompanying the...

  • Page 4: Important Warning

    IMPORTANT WARNING  NOTES: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 5: Table Of Contents

    FEATURES  Turntable Support 33 1/3,45 , 78 RPM  FM / AM Radio  CD Player Support CDs and MP3 Disc  Cassette Player  USB Jack For USB Memory Stick Play Back  Recording system from turntable to USB ...

  • Page 6: Location Of The Controls 1.0

    LOCATION OF THE CONTROLS 1.0...

  • Page 7: Location Of The Controls 1.1

    LOCATION OF THE CONTROLS 1.1 COVER 19. SCREW LOCK 45 RMP ADAPTOR 20. HOLD DOWN CLIP TURNTABLE 21. TONE ARM CONTROL Lever REPEAT Button 22. SPEED Selector PROG. / CLK SET Button 23. AUTO STOP CONTROL RECORD Button 24. TONE ARM REST FUNCTION Button 25.

  • Page 8: Getting Started / Main Operation

    GETTING STARTED / MAIN OPERATION Main Power Operation This unit operates using the supplied AC Adapter Connecting AC Adaptor Plug the AC adaptor into a normal power outlet socket. Insert the DC plug of the AC adaptor cord into the DC INPUT Jack at the back of the unit.

  • Page 9: Setting The Clock

    SETTING THE CLOCK 1. Connect power and press the button to power off unit.. 2. Press and hold the CLK SET button until the display digit blink on display. 3. Press the button to select hour format on 12 / 24 . 4.

  • Page 10: Listening To Phone (Turn Table )

    LISTENING TO PHONE ( Turn Table ) Gently Open The Dust Cover. Lift the COVER all the way up until it stop, the cover will now stay open. Use screw driver clockwise to unlock the screw lock ( for first time use) . Remove tie-wrap from under the TONE ARM.

  • Page 11: Listening To Cd Disc

    LISTENING TO CD DISC Loading a Disc 1. Connect power and press the button to turn on unit. 2. Set to CD mode, press the FUNCTION button until ”Cd” indicator show on display. After 1 sec the “---“ blink on display. 3.

  • Page 12: Listening To Cd Cassette

    LISTENING TO CASSETTE Loading a Cassette Tape 1. Connect power and press the button to turn on unit . 2. Set to cassette mode, press the FUNCTION until “TAPE and tAP” indicator show on display. 3. Insert your cassette tape into the CASSETTE SLOT. The side of cassette that your wish to listen to or record onto should be facing towards you.

  • Page 13: Listening To Usb Device

    LISTENING TO USB DEVICE Loading a USB (Support MP3 File) Connect power and press the button to turn on unit . Insert the USB device into the USB jack for a few seconds the unit will be start playing. Set to USB mode, press the FUNCTION until ”USB indicator show on display and the USB will be auto play and the track number show on display.

  • Page 14: Listening To Aux In ( Line In / Audio In )

    LISTENING TO AUX IN ( Line In / Audio In ) This will allow you to broadcast the external unit’s sound through your unit. CONNECTION: 1. Plug a 3.5mm audio cable into your MP3 or MP4 player Aux out / Line –out / Audio out or phones port.

  • Page 15: Using Recording

    USING RECORDING This unit can record the unit music sound to USB from CD disc / Turn table / Cassette / Aux in. Connect power and press the button to turn on unit . Insert the USB device into the USB jack. Press the FUNCTION to select desire mode that you want to recording.

  • Page 16: Trouble Shooting

    TROUBLE SHOOTING If you have followed the instructions and are having difficulty operating the unit, locate the PROBLEM in the left column below. Check the corresponding POSSIBLE CAUSE AND SOLUTION column to locate and fix the problem. PROBLEM POSSIBLE CAUSE AND SOLUTION ...

  • Page 17: Specifications

    SPECIFICATION AC Input :AC~ 100-240V 50/60Hz AC Power Adapter DC Output = 10.0V , 1500mA Turn Table Speed 33 1/3, 45 , 78 RPM Support MP3 format CD Player Support CDs and MP3 Disc Radio FM: 88-108 MHz ,AM: 525-1650KHz Power Output At Turn Table 2W X2 RMS Power Output Power Output At...
