Summary of Contents for 1 BY ONE Audio-Technica AT3600

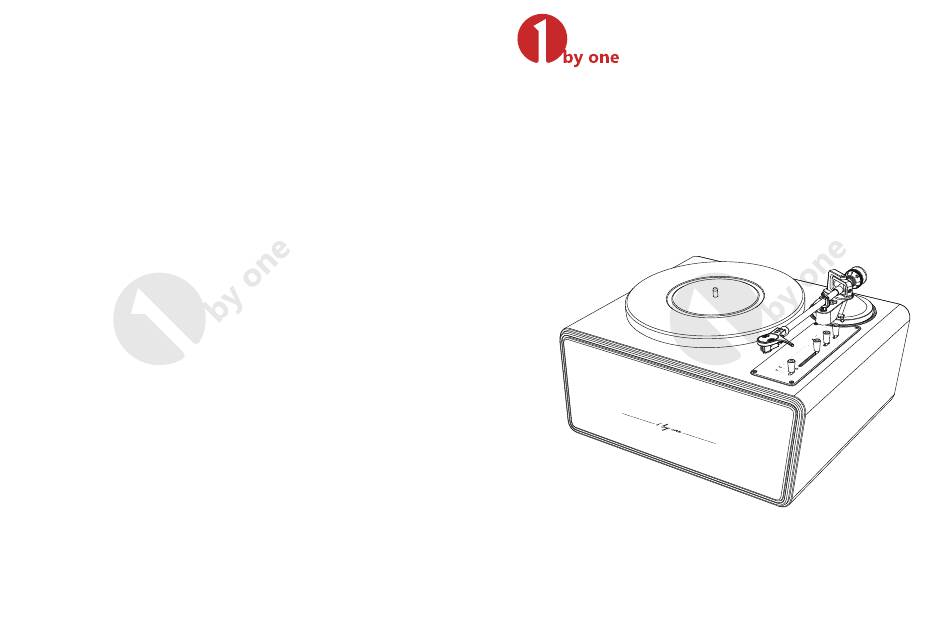

- Page 1 Belt Drive Turntable with Built in Speakers 1byone Products Inc. 1230 E Belmont Street, Ontario, CA, USA 91761 Customer Service: +1 909-391-3888 Instruction Manual www.1byonebros.com Made in China...
-
Page 2: Safety Instructions
Introduction Thank you for purchasing 1byone Belt Drive Turntable with Built in Speakers. This instruction manual contains important information about safety, usage and disposal. Use the product as described and keep this manual for future reference. If you sell this turntable or pass it on, also give this manual to the new owner. -
Page 3: Product Description
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable Product Description operation of the product and to protect it from overheating. Do not block or cover these openings. 12.Unplug the product during lightnings storm or when unused for long periods of time. -
Page 4: Included Items
3. Insert the sub-platter into the turntable spindle located in the middle of the Included Items turntable. 4. Loop the drive belt around the sub-platter and motor pulley (brass-colored). Before installing the turntable, check the package contents to ensure all parts below are included and free of visible damage. - Page 5 6. Once the tonearm is correctly balanced, return the tonearm to its rest. Without Cartridge Tracking Force Adjustment moving the position of the counterweight, gently rotate the tracking force dial until the zero is in line with black center line on the rear of the tonearm. Check to make The supplied Counterweight is suitable sure the tonearm is still neutrally balanced.
- Page 6 2. Connecting the device Align the settings for the Phono & Line Out Switch and connect the RCA wired connection RCA audio cable to an input jack that is compatible with the connectable equipment you are using (amplifier, active speakers, etc.). •...
-
Page 7: Power Management Function
2.6 Slide up the Play/Stop Switch. The platter will start spinning. Power Management Function 2.7 Unlock the tonearm clip and set the tonearm lift lever to the up position. 2.8 Position the tonearm over the desired location (groove) on the record. The turntable will automatically go into standby mode after 20 minutes of inactivity. -
Page 8: Aux-In Operation
2.2 System settings needed for Windows and Mac AUX-IN Operation Windows: This turntable includes an auxiliary audio signal input jack for connecting external audio 1. By the system clock, right-click over the Speaker icon select Sounds then the devices like MP3 players, CD players, and older, nondockable iPods so you can listen to Recording tab, and then click on the USB device in the list and click Properties. - Page 9 Windows 10: > Normalize... after you have completed editing. 5. Recording Then, ignoring any instructions in the manufacturer's guide to select "stereo mix", • The Recording Device is set to the USB device (in this case the device name, but often simply press the Record button in Transport Toolbar to start recording from the called or including the phrase "USB Audio CODEC").
-
Page 10: Replacing The Stylus
Replacing the Stylus Replacing the Belt It's suggested to replace the stylus after 400 hours of use. • The belt is a consumable part. Replace the belt if the speed of playback slows down or irregular rotation occurs. As a rule of thumb, we suggest replacing the belt once a Removing the Stylus year. -
Page 11: When The Turntable Is Moved
4. Place the main platter back onto the sub-platter. 6. Adjust the cartridge’s position to make sure it is precisely aligned on the headshell so that the stylus will be tracking the grooves in parallel perfectly. To achieve this, place the included paper cartridge alignment protractor over the turntable spindle, carefully lift the tone arm and place the tip of the stylus on the points marked 130mm and 250mm respectively. -
Page 12: Troubleshooting
Troubleshooting There is noise • Is there dust on the cartridge’s stylus tip? Problem Solution when the record -If dust is stuck to the stylus tip, clean it with a commercially sold is playing. brush. The platter does • Is the AC adapter connected to the outlet? not spin. -
Page 13: Specifications
UNITED KINGDOM Weight 18.4 lb (8.35kg) Email: ukhelp@1byonebros.com Stylus GERMANY/FRANCE Email: euhelp@1byonebros.com ITALY/SPAIN Model Audio-Technica AT3600 Frequency Response 20Hz - 20kHz BRAND OWNER Channel Balance <2.5dB 1byone Products Inc. Channel Separation >18dB 1230 E Belmont Street, Ontario, CA, USA 91761 Output Voltage 2.5mV...
