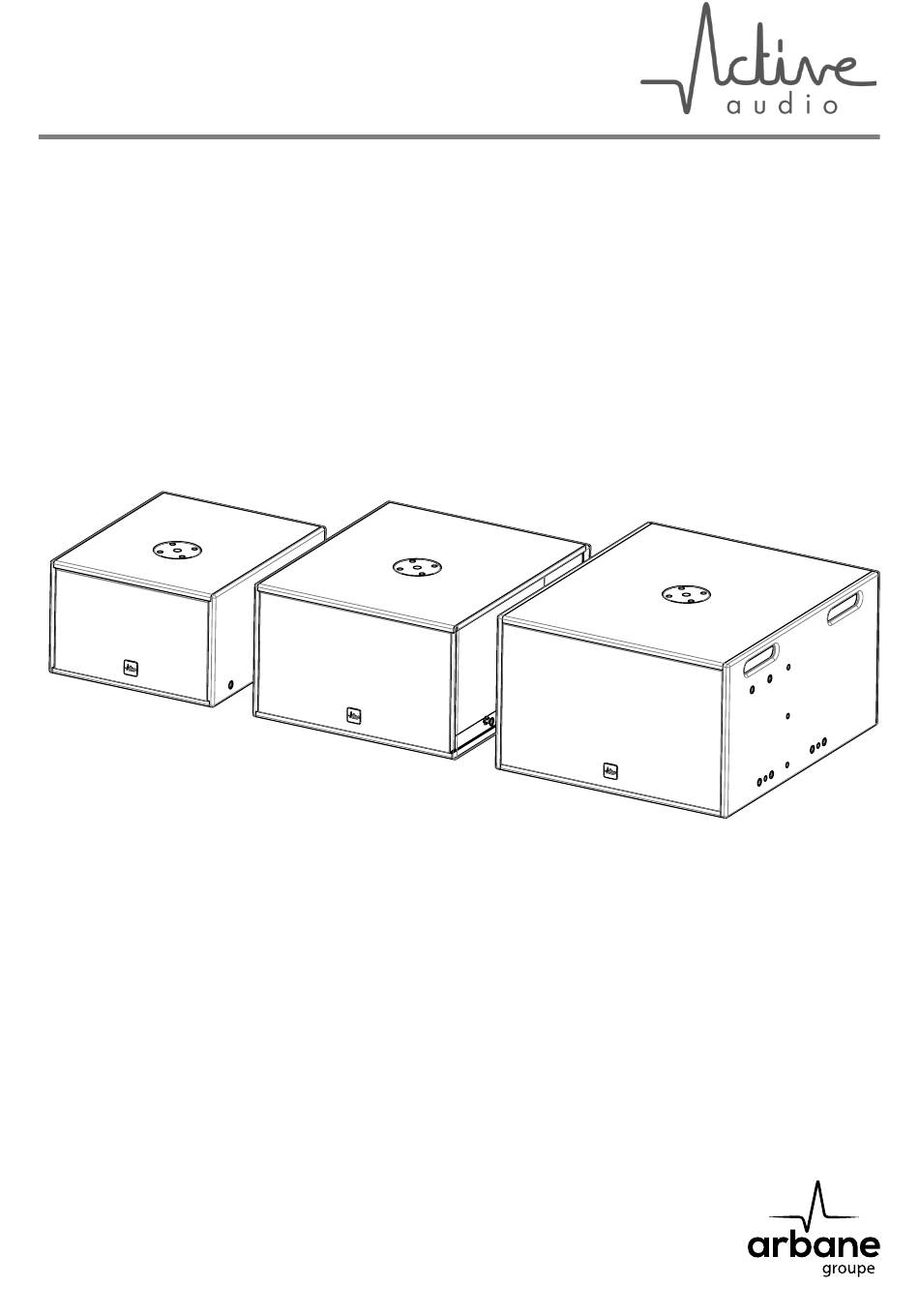

- Page 1 iS AA Series User manual...
- Page 2 2.7 Rigging 2.8 Maintenance - Spare parts 2.9 Technical specifications General information iS AA Series - User manual 03/2023 Active Audio (Active Audio / Arbane Groupe) 8 Rue Johannes Gutenberg - 44340 Bouguenais- France Tél : 02.40.46.66.64 www.activeaudio.fr DOP_1739_A 03/2023...
- Page 3 User manual - iS AA Series User manual - iS AA Series 1. Safety note and general information • Information on the risk of exposure to high sound level • Active Audio loudspeakers are liable to generate levels of sound pressure hazardous to health, which may cause hearing impairment.
- Page 4 User manual - iS AA Series User manual - iS AA Series 2. The iS range • Use a secondary safety system for any Active Audio speaker rigging. 2.1 Description of the product line • The product is intended for be used by professionals trained in professional audio work. •...

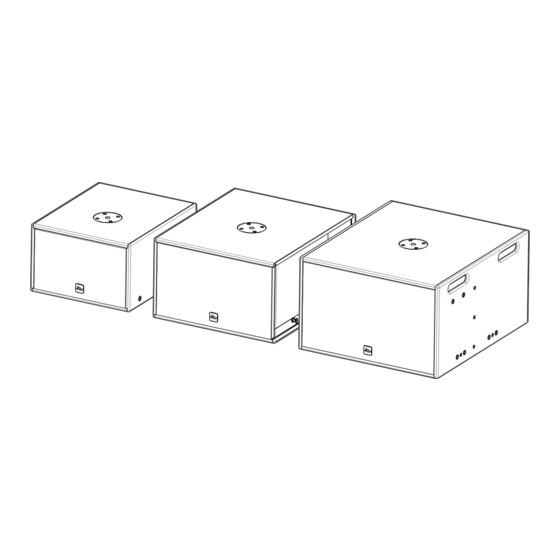

- Page 5 User manual - iS AA Series User manual - iS AA Series 2.2 Product description iS112 The iS112 model is a compact subwoofer dedicated to mobile iS110 applications and small fixed installations. It is equipped with a 12” speaker. The iS110 subwoofer has been designed to discreetly add deep bass extension to the installation range loudspeakers.
- Page 6 User manual - iS AA Series User manual - iS AA Series 2.3 Connections iS115 The iS115 model is a compact format subwoofer serving both in fixed installation and in service. It is equipped with a 15’’ Neodymium loudspeaker, the acoustic load being the bass-reflex.
- Page 7 User manual - iS AA Series User manual - iS AA Series 2.4 Amplifiers 2.5 Recommended equalization WARNING In the event that use with recall of the manufacturer preset is not possible (use of third-party processing and amplification platforms). the filtering values in the table must be entered for each subwoofer. Active Audio speakers must be powered by Active Audio or Powersoft amplifiers with the corresponding speaker preset.
-
Page 8: Examples Of Configurations
User manual - iS AA Series User manual - iS AA Series 2.6 Examples of configurations Two configurations between an iS115 subwoofer and a Step-Array 180 column loudspeaker are possible thanks to the SA180PM accessory. One in a standing configuration and the other in a suspended configuration. Stand Mount (SA180PM-CC + SA180PM-BAR) WARNING : Only the Active Audio iS115 subwoofer is compatible with the SA180PM accessory because the M20 screw thread is reinforced from the inside. -
Page 9: Security Check
User manual - iS AA Series User manual - iS AA Series Suspension mount (SA180PM-CC + SA180PM-SUS) Proceed with the SECURITY Take a TORX 25 screwdriver to unscrew/tighten the screws. CHECK to make sure that the pin is correctly placed and that the assembly is well fixed. - Page 10 User manual - iS AA Series User manual - iS AA Series 2.7 Rigging iS112 hanging accessory The iS112 can be placed on the floor or suspended using the iS112BH mounting accessory. iS110 hanging accessory The iS110 can be placed on the ground horizontally, suspended from the ceiling horizontally or positioned vertically against a wall using the iS110KMV mounting accessory.
- Page 11 User manual - iS AA Series User manual - iS AA Series 2.8 Maintenance - Spare parts iS115 hanging accessory The iS115 can be placed on the floor or suspended using the iS110 loudspeaker iS115BH mounting accessory. Hanging bumper iS115BH 1.
- Page 12 User manual - iS AA Series User manual - iS AA Series iS115 loudspeaker iS112 loudspeaker REPERE REFERENCE DESIGNATION REPERE REFERENCE DESIGNATION PRS_1263 Black steel iS112 AA PRS_1265 Black steel iS115 AA PRS_1264 White steel iS112 AA PRS_1266 White steel iS115 AA PRS_1198 Recone kit for PST_1524 PRS_1202...
- Page 13 User manual - iS AA Series User manual - iS AA Series 2.9 Technical specifications iS110 loudspeaker iS112 loudspeaker Features Features Usable bandwidth (± 10 dB) 45 Hz - 180 Hz Usable bandwidth (± 10 dB) 45 Hz - 180 Hz SPL Max @ 1m 132 dB SPL (1) SPL Max @ 1m...
- Page 14 (1) Peak level @ 1m, 2πsr using 12dB crest factor pink noise with Active Audio preset (2) Nominal directivity @-6dB Arbane Groupe (3) Continuous power according to AES2-2012 in DCR 8 Rue Johannes Gutenberg - 44340 Bouguenais- France (4) Peak power according to AES2-2012 in DCR Tél : 02.40.46.66.64...
