Uniline Compact
User manual
UC206N / UC206W / UC115B / UC118i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APG Uniline Compact and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for arbane APG Uniline Compact

Summary of Contents for arbane APG Uniline Compact

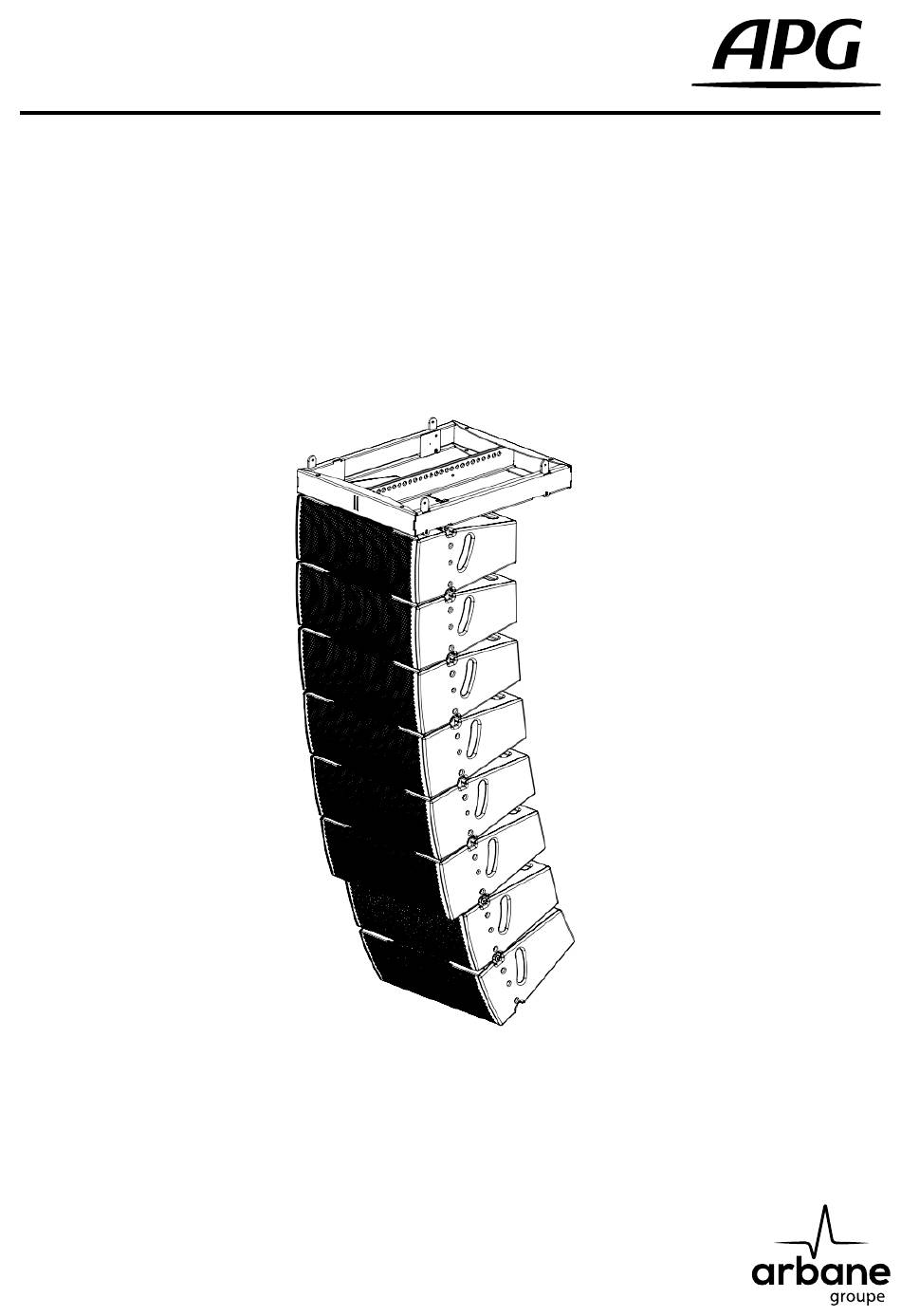

  • Page 1 Uniline Compact User manual UC206N / UC206W / UC115B / UC118i...
  • Page 2 User manual - Uniline Compact General information Uniline Compact - User manual Version 10/2021 EN APG France (Active Audio / Arbane Groupe) 8 Rue Johannes Gutenberg - 44340 Bouguenais- France Tél : 02.40.46.66.64 www.apg.audio/fr DOP_1363_A 10/2021...

  • Page 3: Table Of Contents

    User manual - Uniline Compact Table of contents 1. Safety note and general information 2. Uniline Compact range 2.1 Description of the product line 2.2 Products description 2.3 Accessories 2.4 Amplifiers 2.5 Amplifications rack 2.6 Applications : examples of configurations 2.7 Principle of assembly 2.8 Maintenance - Spare parts 2.9 Technical specifications...

  • Page 4: Safety Note And General Information

    User manual - Uniline Compact 1. Safety note and general information • Information on the risk of exposure to high sound level APG loudspeakers are liable to generate levels of sound pressure hazardous to health, which may cause hearing impairment. It is recommended that you never stand in the immediate vi- cinity of the loudspeakers in operation and wear hearing protection when necessary.
  • Page 5 User manual - Uniline Compact • Use a secondary safety system for any APG speaker rigging. • The product is intended for be used by professionals trained in professional audio work. • APG declines all responsibility in the event of the use of non-validated accessories or non-compliance with safety instructions and rules.

  • Page 6: Uniline Compact Range

    User manual - Uniline Compact 2. Uniline Compact range 2.1 Description of the product line The Uniline Compact modular line array is a versatile solution for a wide range of applications, indoors or outdoors, as varied as Public Address, sporting event, institutional, theater and live concert. It offers high dynamic and acoustic perfor- mance in a very compact, light and discreet format, easy to use thanks to its advanced ergonomics. The Uniline Compact and composed of 4 distinct elements: UC206N, UC206W, UC115B and UC118i.

  • Page 7: Products Description

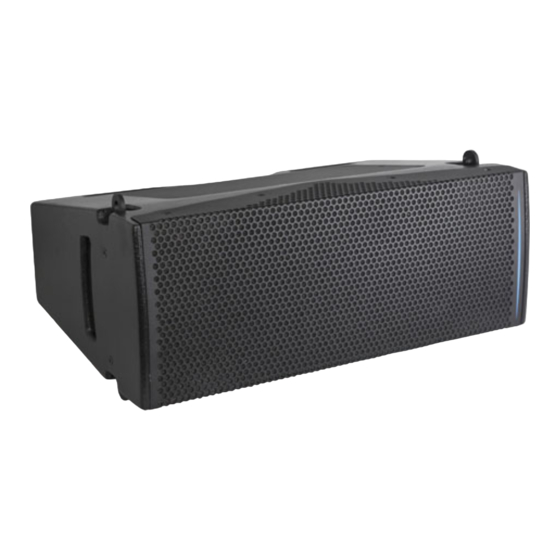

    User manual - Uniline Compact 2.2 Products description UC206N / UC206W The UC206N is the main component of the Uniline Compact line array designed for medium and long range broadcasting due to its constant horizontal directivity of 70 °. The UC206W uses the same technologies and components as the UC206N but is designed and optimized for short and medium range and «downfill» broadcasting due to its constant wide horizontal directionality of 105 °. UC206N All other acoustic characteristics are common. The UC206N and UC206W are bi-amplified 3-way acoustic speakers: LO (60 - 600Hz) and HI (600Hz - 20kHz) section. The impedance of each section is 16 Ohms, allowing use of up to 8 speakers in parallel.
  • Page 8 User manual - Uniline Compact The speakers are connected to the amplifiers via two 4-pin SpeakonTM connectors on the back of each speaker: 1 + / 1- on LO section (low / medium) 2 + / 2- on HI section (medium / high) In the vertical plane, the directivity index is progressive and conditioned by the angular configuration of the system. The speakers’ pivot axis is located on the same plane as the exit groove of the APG ISOTOP waveguide. This guarantees a continuous sound source, regardless of angulation (tape type «line source»).
  • Page 9 User manual - Uniline Compact UC115B The UC115B is the dedicated bass reinforcement cabinet for the Uniline Compact system. The UC115B has been designed to extend and enhance low frequency response from 45 to 160 Hz. The recommended frequency connection with the UC206N / W is 110 Hz and 60 Hz with the UC118i. It can be used as a small-format subwoofer or as a bass extension by increasing the size and projection of the acoustic column in this frequency range, depending on the application. The bandpass acoustic load increases both the acoustic effi- ciency in the useful bandwidth, while limiting the excursion of the speaker membrane.
  • Page 10 User manual - Uniline Compact UC118i The UC118i is an infra-low frequency subwoofer dedicated to the Uniline Compact system. The UC118i has been designed for low frequency boost from 25 to 80 Hz. The recommended frequency connection with the UC206N / W is 80 Hz and 60 Hz with the UC115B. This model combines two complementary technological choices (a forced ventilation of the loudspeaker’s neodymium magnetic system and an acoustic bandpass load), which offer an extended dynamic capacity as well as a very high SPL level. The use of laminar vents facilitates airflow by minimizing near- field noise, which increases playback quality and minimizes distortion. The UC118i are connected to the amps via 4 Speakon ™ 4 point connectors: - 1 + / 1- on the rear panel - 2 + / 2- on the front for cardioid configuration.

  • Page 11: Accessories

    User manual - Uniline Compact 2.3 Accessories UCTRUSS The UCTRUSS element is the main rigging accessory of the Uniline Compact system. - Snap of UC206N / W clusters - Snap of UC115B clusters - Link between UC115B and UC206N / W. It can connect up to 22 UC206N / W or 11 UC115B for a maximum weight of 380kg. The quick click point offers great precision in adjusting the vertical angle of the clusters even with a single point of sus- pension. The Ease Focus acoustic and mechanical simulation tool allows precise calculation of the center of gravity and indicates the best mounting position for the spindles.
  • Page 12 User manual - Uniline Compact UCRAIL The UCRAIL accessory is an ideal alternative to UCTRUSS, for hanging small clusters. It can connect up to 8 UC206N / W, for a maximum weight of 140kg. Lighter and more economical than the UCTRUSS, this accessory guarantees a real gain in competitiveness, especially on small and medium-sized configurations when there is no need to suspend the UC115B both in rental and in permanent installation. APG reminds you to always secure your Uniline Compact system with an approved safety sling, connected to the UC- TRUSS or UCRAIL and to adjust the orientation angle of your cluster with an adequate halyard to maintain its value and avoid excessive swinging.
  • Page 13 User manual - Uniline Compact USTACK For posed and stacked configurations, a specific UCSTACK accessory must be used to safely configure the vertical angle of the UC206N / W clusters from -15 ° to + 10 ° (lower enclosure axis). This accessory can be used for three types of configurations: 1. UC206N / W stacking on the ground, thanks to its rubber feet, or on subwoofers (possibility of locking it with M20 thread). 2. UC206N / W speaker stand mounting via speaker stand with screw adapter such as K&M 24281. 3. In combination with UCRAIL or UCSTACK, to pull the lower part of a suspended assembly of UC206N / W to allow a more pronounced interior angle («Pullback»). DOP_1363_A 10/2021...
  • Page 14 User manual - Uniline Compact ELK / EBK UC118i can be assembled vertically. Each will be equipped with the ELK coupling element allowing to create a cluster of up to 3 speakers in omnidirectional or cardioid configuration very aesthetic. Aligned with the center of gravity of the enclo- sure, the mounting systems provide stable and perfectly vertical clusters. The UC118i will be suspended by means of the adapted EBK bumper. ELK coupling EBK rigging bumper element ELK (1 each side) 4 x shoulder crew M6x30, ø8 DOP_1363_A 10/2021...

  • Page 15: Amplifiers

    User manual - Uniline Compact 2.4 Amplifiers APG DSP processors manage and process systems like Uni- line Compact, which cannot function without them. DMS48: 4 inputs, 8 outputs, analog and / or digital (AES3), DMS48 96kHz / 24bits digital converters, 50 factory presets DMS48/F DA15: 4 and DA50: 4: 4 inputs, 4 outputs, analog and / or digital (AES3), 96kHz / 24bit digital converters, 50 factory presets, with integrated 4-channel power amplifiers. Complete banks of factory presets are available for all Uniline Compact configuration modes for the DMS48 processor and DA15:4/F DA50:4/F DA15.4 and DA50.4 amplifiers.

  • Page 16: Amplifications Rack

    User manual - Uniline Compact 2.5 Amplifications rack UNIRACK & TOURACK APG provides two standardized platforms for electronic pro- cessing and amplification: UNIRACK and TOURACK which respectively have four and eight amplification channels, Connection plate CP3UAP adapted to each type of configuration: touring, fixed installa- tions, events ... Wiring and dispatching are also much easier thanks to their 4 x RJ45 network socket 4 x XLR3 input socket + 4 1 x 8 points Speakon integrated wiring plates, which save time and have a clear (2 x AUDIO + 1 x NET + 1 x AUX) links XLR3 socket output...

  • Page 17: Applications : Examples Of Configurations

    User manual - Uniline Compact 2.6 Applications : examples of configurations Wideband mode - 2 x UCTRUSS - 12 x UC206N - 4 x UC206W Extented mode 1 - 2 x UCTRUSS - 12 x UC206N - 4 x UC206W - 4 x UC118i Extented mode 2 - 4 x UCTRUSS - 2 x UCSTACK - 12 x UC115B - 8 x UC206N - 12 x UC206W DOP_1363_A 10/2021...
  • Page 18 User manual - Uniline Compact Completed mode - 4 x UCTRUSS - 6 x UC115B - 8 x UC206N - 4 x UC206W - 4 x UC118i DOP_1363_A 10/2021...

  • Page 19: Principle Of Assembly

    User manual - Uniline Compact 2.7 Principle of assembly Translation principle for assembling UC206N/W to each other. Don’t forget to put the side pin as well as the rear pin with the desired angle (see part 3 page 20) Assembly principle for assembling UC115B to each other. DOP_1363_A 10/2021...
  • Page 20 User manual - Uniline Compact Assembly principle with UCSTACK : - Ground stacking 1. Turn the UC206N/W over, present the UCSTACK and slide it so as to assemble it with the UC206N/W enclosure 2. Turn over the enclosure and the UCSTACK then put the lateral safety pin 3. Set the rear pin to the desired angle 4. SECURITY CHECK Perform the SECURITY CHECK to make sure the UC206N/W are secure. The side safety pin (2) and the rear pin (3) secure the UC206N/W when the accessories are fully engaged and both pins are engaged. DOP_1363_A 10/2021...
  • Page 21 User manual - Uniline Compact 5. If necessary, add one or more UC206N / W speakers to the «stacked» speaker. Be sure to insert each side and rear pin correctly and perform the “SECURITY CHECK”. The angle adjustment between the speakers is made at the rear via the fixed holes and can be de- termined using the EASE FOCUS 3 Software. DOP_1363_A 10/2021...
  • Page 22 User manual - Uniline Compact - UC206N/W stacking on a UC115B 1. Fix the UCSTACK to the UCSTACK using the tightening screw then assemble the enclosure to the UCS- TACK 2. Choose the desired angle 3. WARNING: The center of gravity of the assembly must be in the wheelbase of the subs. DOP_1363_A 10/2021...
  • Page 23 User manual - Uniline Compact Assembly principle with UCTRUSS : - UC206N/W lifting SECURITY CHECK Assemble the UCTRUSS Insert the side safety pins to secure the system. to the UC206N/W. To assemble the UC206N/W see assembly principle on page 20. UC206N/W’s suspension is limited to 22 speakers. - UC115B lifting SECURITY CHECK Assemble the UCTRUSS to UC115B.
  • Page 24 User manual - Uniline Compact - UC115B / UC206N/W transition The suspension of the UC115B and UC206N/W speakers can be done within a single speaker cluster, requiring the use of 2 UCTRUSS. The total load to be lifted must not exceed 380 kg. An acoustic and mecha- nical simulation must imperatively be carried out beforehand with the AFMG Ease Focus software. Assembly principle with UCRAIL (same principle of UCTRUSS) : - Simple lifting UC206N/W (8 max) DOP_1363_A 10/2021...

  • Page 25: Maintenance - Spare Parts

    User manual - Uniline Compact 2.8 Maintenance - Spare parts UC206N loudspeaker REPERE REFERENCE DESIGNATION PRS_1087 UC206N Black steel PRS_1088 UC206N White steel PRS_1083 HP low frequencies PST_1362 complet (UC206-LF6.5-LS) PRS_1084 PST_1362 recone kit PRS_1060 HP high frequencies PST_1408 complet (UC206- HFMT05-LS) PRS_1061 PST_1408 spare diaphragm...
  • Page 26 User manual - Uniline Compact UC206W loudspeaker REPERE REFERENCE DESIGNATION PRS_1089 UC206W Black steel PRS_1090 UC206W White steel PRS_1083 HP low frequencies PST_1362 complet (UC206-LF6.5-LS) PRS_1084 PST_1362 recone kit PRS_1060 HP high frequencies PST_1408 complet (UC206- HFMT05-LS) PRS_1061 PST_1408 spare diaphragm PRS_1086 HP complet PST_1396 + Bowl PRS_1105...
  • Page 27 User manual - Uniline Compact UC115B loudspeaker REPERE REFERENCE DESIGNATION PRS_1093 UC115B Black steel PRS_1094 UC115B White steel PRS_1095 HP low frequencies PST_1829 (UC115B-LF15-LS) PRS_1096 Recone kit pour PST_1829 (UC115B-LF15-RK) PRS_1105 Safety pins 6x20mm with Elingue DOP_1363_A 10/2021...
  • Page 28 User manual - Uniline Compact UC118i loudspeaker REPERE REFERENCE DESIGNATION DOP_1363_A 10/2021...

  • Page 29: Technical Specifications

    User manual - Uniline Compact 2.9 Technical specifications UC206N loudspeaker Features Usable bandwidth (± 10 dB) 55 Hz - 20 kHz SPL Max @ 1m 134 dB SPL (1) Nominal directivity 70° x 15° (2) Nominal impedance 16 ohm Components Transducers 2 x 6,5'' ND with ventilated driver 1 x Isotop15 (5’’ ND / HF 1’’) Topology Line Source - Isotop / K-Horn Acoustical load Bass Reflex - Line Source / Isotop / Constant directivity Ways and amplification type 3 ways, bi-amplified lo/mid mid/hi Power 300 W 100 W (3) Maximum power handling 1200 W...
  • Page 30 User manual - Uniline Compact UC206W loudspeaker Features Usable bandwidth (± 10 dB) 55 Hz - 20 kHz SPL Max @ 1m 132 dB SPL (1) Nominal directivity 105° x 15° (2) Nominal impedance 16 ohm Components Transducers 2 x 6,5'' ND with ventilated driver 1 x Isotop15 (5’’ ND / HF 1’’) Topology Line Source - Isotop / K-Horn Acoustical load Bass Reflex - Line Source / Isotop / Constant directivity Ways and amplification type 3 ways, bi-amplified lo/mid mid/hi Power 300 W 100 W (3) Maximum power handling 1200 W 400 W (4) Construction...
  • Page 31 User manual - Uniline Compact UC115B loudspeaker Features Usable bandwidth (± 10 dB) 35 Hz - 110 Hz SPL Max @ 1m 144 dB SPL (1) Nominal directivity Omnidirectionnal (2) Nominal impedance 8 ohm Components Transducers 1 x 15'' ND Topology Acoustical load Bandpass dual chamber - Bass Reflex - Laminar Ways and amplification type 1 way, mono amplified Power 1100 W (3) Maximum power handling 4400 W (4) Construction Dimensions H,W,D (mm) 16,5’’ x 21,2’’ x 23,6’’...
  • Page 32 User manual - Uniline Compact UC118i loudspeaker 755,00 704,00 Features Usable bandwidth (± 10 dB) 25 Hz - 80 Hz SPL Max @ 1m 140 dB SPL (1) Nominal directivity Omnidirectionnal (2) Nominal impedance 8 ohm Components Transducers 1 x 18'' ND Topology Acoustical load Bandpass dual chamber - Bass Reflex - Laminar Ways and amplification type 1 way, mono amplified Power 1100 W (3) Maximum power handling 4300 W (4) Construction Dimensions H,W,D (mm) 27,7’’ x 20,8’’ x 29,7’’...
  • Page 33 Arbane Groupe 8 Rue Johannes Gutenberg - 44340 Bouguenais- France Tél : 02.40.46.66.64 www.apg.audio DOP_1363_A 10/2021...

This manual is also suitable for:

Apg uc206nApg uc206wApg uc115bApg uc118i
