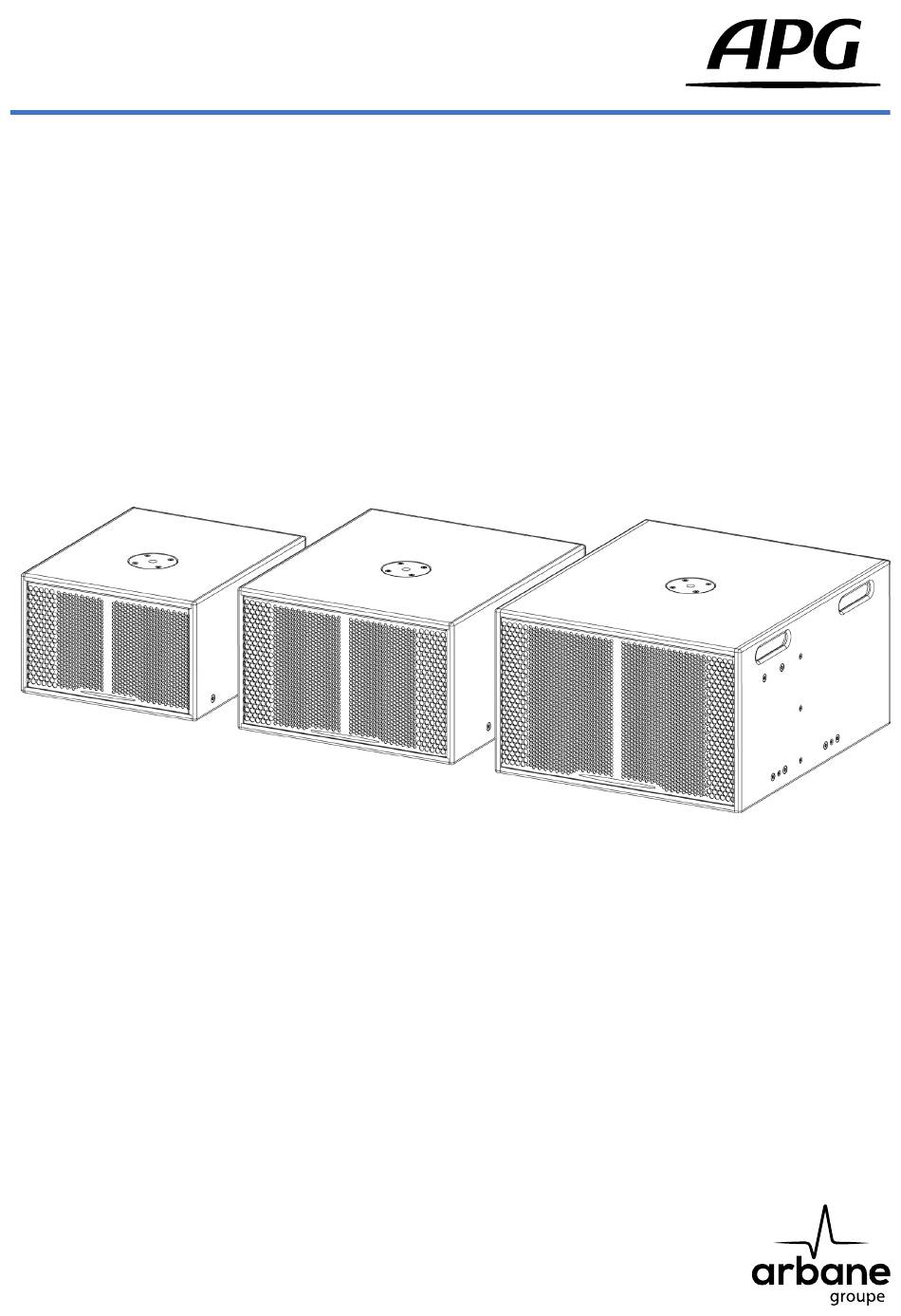

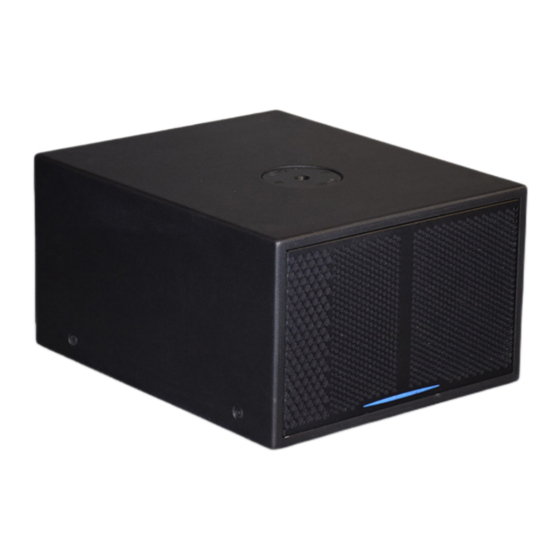

- Page 1 iS Series User manual...
- Page 2 2.8 Technical specifications 2.9 iS-O : iS Series special Outdoor General information iS Series - User manual 03/2023 EN APG France (Active Audio / Arbane Groupe) 8 Rue Johannes Gutenberg - 44340 Bouguenais- France Tél : 02.40.46.66.64 www.apg.audio/en DOP_1457_E 03/2023...
- Page 3 User manual - iS Series User manual - iS Series 1. Safety note and general information • Information on the risk of exposure to high sound level • APG loudspeakers are liable to generate levels of sound pressure hazardous to health, which may cause hearing impairment.
- Page 4 User manual - iS Series User manual - iS Series 2. The iS range • Use a secondary safety system for any APG speaker rigging. 2.1 Description of the product line • The product is intended for be used by professionals trained in professional audio work. •...
- Page 5 User manual - iS Series User manual - iS Series 2.2 Product description iS112 The iS112 is a compact subwoofer dedicated to mobile iS110 applications and small-scale fixed installations. It is equipped with a 12’’ speaker. The iS110 subwoofer has been designed to add a deep bass extension to the speakers of the installation range while Its acoustic design has the effect of considerably reducing the discreetly.
- Page 6 User manual - iS Series User manual - iS Series 2.3 Connections iS115 The iS115 model is a compact subwoofer suitable for both fixed installation and service. It is equipped with a 15’’ neodymium speaker, the acoustic load being the bass reflex. This exclusive acoustic design has the effect of greatly reducing the load volumes in order to achieve an optimal {size / low cutoff frequency} ratio while improving acoustic...
- Page 7 User manual - iS Series User manual - iS Series 2.4 Amplifiers 2.5 Examples of configurations WARNING APG speakers must be powered by APG or Powersoft amplifiers with the corresponding speaker preset. Failure to heed this warning may cause damage to speaker components and the user experience will not be optimal. Refer to the amplifier manual fot its connection to the speakers.
- Page 8 User manual - iS Series User manual - iS Series 2 x iX12 2 x iS115 suspendu 1 x DA12 2 x iX8 2 x iS115 1 x DA8 2 x iX12 2x iS115 au sol 1 x DA12 DOP_1457_E 03/2023 DOP_1457_E 03/2023...
- Page 9 User manual - iS Series User manual - iS Series 2.6 Rigging iS112 hanging accessory The iS112 can be placed on the floor or suspended using the iS112BH mounting accessory. iS110 hanging accessory The iS110 can be placed on the floor horizontally, or positioned vertically against a wall with the iS110KMV mounting accessory.
- Page 10 User manual - iS Series User manual - iS Series 2. Use the lifting rings to suspend and secure the subwoofer with a motor for example. iS115 hanging accessory The iS115 can be placed on the floor or suspended using the iS115BH mounting accessory.
- Page 11 User manual - iS Series User manual - iS Series 2.7 Maintenance - Spare parts iS115 to iX12 connection accessory The iS115 also has an LS115-iX12 junction piece allowing coupling with an iX12. iS110 loudspeaker Connection accessory LKiS115-iX12 1. Place the iX12 loudspeaker horizontally and fix the junction pieces on each side of the iX12. 4 x M8x25 REPERE REFERENCE...
- Page 12 User manual - iS Series User manual - iS Series iS115 loudspeaker iS112 loudspeaker REPERE REFERENCE DESIGNATION REPERE REFERENCE DESIGNATION PRS_1196 Black steel iS112 PRS_1200 Black steel iS115 PRS_1197 White steel iS112 PRS_1201 White steel iS115 PRS_1198 Recone kit for PST_1524 PRS_1202 Recone kit for PST_1541 PRS_1199...
- Page 13 User manual - iS Series User manual - iS Series 2.8 Technical specifications iS110 loudspeaker iS112 loudspeaker Features Features Usable bandwidth (± 10 dB) 45 Hz - 150 Hz Usable bandwidth (± 10 dB) 45 Hz - 150 Hz SPL Max @ 1m 132 dB SPL (1) SPL Max @ 1m 137 dB SPL (1)
- Page 14 User manual - iS Series User manual - iS Series iS115 loudspeaker 2.9 iS-O : iS Series special Outdoor Features IP54 loudspeakers Usable bandwidth (± 10 dB) 42 Hz - 120 Hz SPL Max @ 1m 138 dB SPL (1) Cabinet For the cabinet, APG uses exclusively Baltic birch plywood treated with a polyurethane coating Nominal directivity...
- Page 15 Arbane Groupe 8 Rue Johannes Gutenberg - 44340 Bouguenais- France Tél : 02.40.46.66.64 www.apg.audio...
