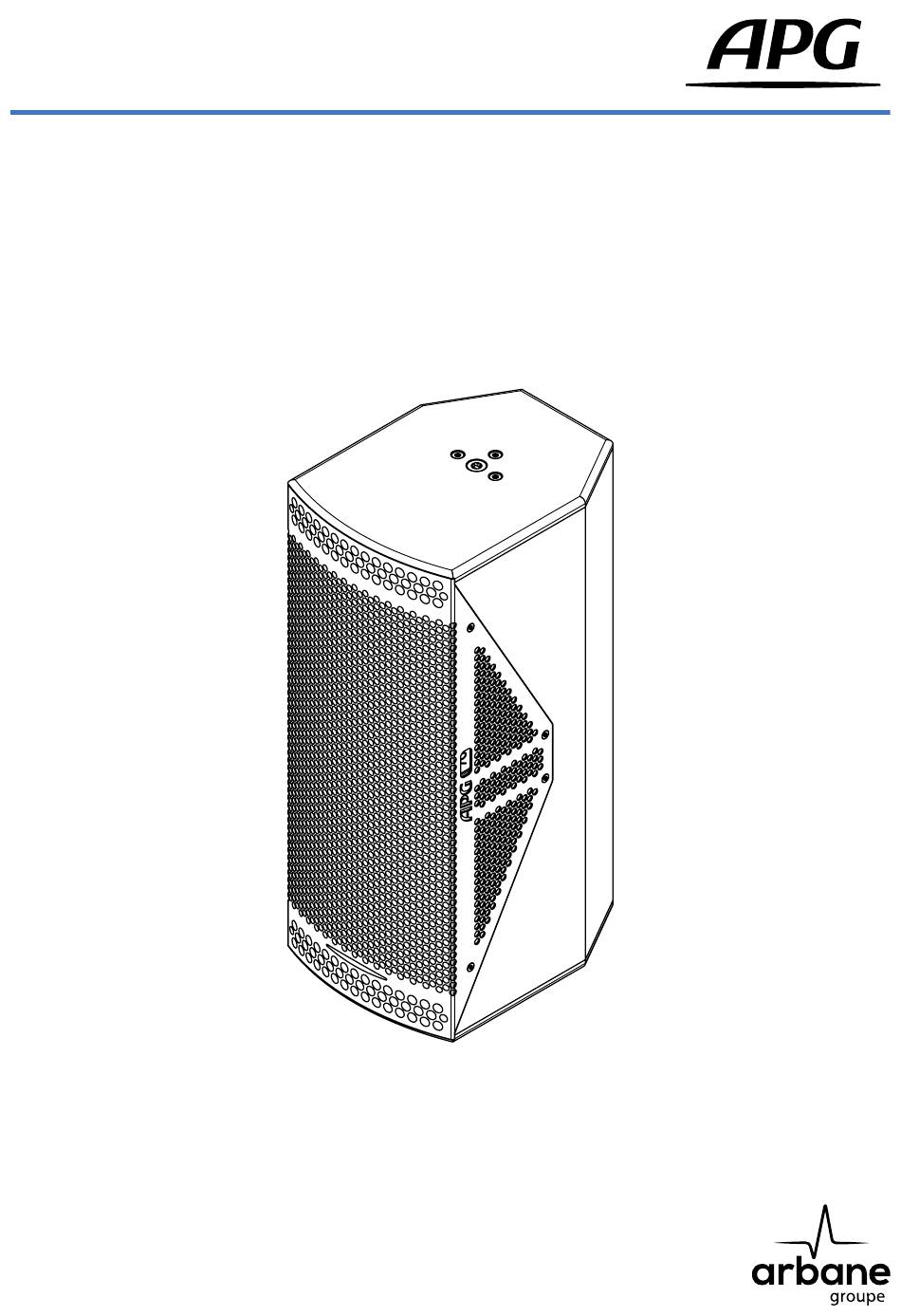

- Page 1 SPOT 2.6 User manual...
- Page 2 2.6 Rigging 2.7 Maintenance - Pièces détachées 2.8 Spécifications techniques General information SPOT 2.6 - User manual 06/2022 - EN APG France (Active Audio / Arbane Groupe) 8 Rue Johannes Gutenberg - 44340 Bouguenais- France Tél : 02.40.46.66.64 www.apg.audio/en DOP_1590_A 06/2022...
- Page 3 User manual - SPOT 2.6 User manual - SPOT 2.6 1. Safety note and general information • Information on the risk of exposure to high sound level • APG loudspeakers are liable to generate levels of sound pressure hazardous to health, which may cause hearing impairment.
- Page 4 User manual - SPOT 2.6 User manual - SPOT 2.6 2. Passive loudspeaker SPOT 2.6 • Use a secondary safety system for any APG speaker rigging. 2.1 Product description • The product is intended for be used by professionals trained in professional audio work. •...
- Page 5 User manual - SPOT 2.6 User manual - SPOT 2.6 2.2 Connections 2.3 Amplifiers LINK APG speakers must be powered by APG or Powersoft amplifiers with the corresponding speaker preset. Failure to heed this warning may cause damage to speaker components and the user experience will not be optimal. Refer to the amplifier IN LINK manual fot its connection to the speakers.
- Page 6 User manual - SPOT 2.6 User manual - SPOT 2.6 2.4 Constant directivity horn rotation 2.5 Examples of configurations With SPOT 2.6 you can choose the directivity. Use on a stand is possible with and/or without bracket : Thanks to the assembly/disassembly of the horn, the directivity can be 50° or 70° by following the steps below. - With SPOT2.6BV bracket : use K&M 24281 adapter - Without bracket : use K&M 24521 M10 to 35mm (see page 15)
- Page 7 User manual - SPOT 2.6 User manual - SPOT 2.6 2.6 Rigging Horizontal mounting bracket SPOT2.6BH The SPOT 2.6 can be installed horizontally using the SPOT2.6BH mounting bracket. 2 x iS115 2 x SPOT 2.6 Horizontal mounting 1 x DA12 bracket SPOT2.6BH 1.
- Page 8 User manual - SPOT 2.6 User manual - SPOT 2.6 Angle part for wall bracket SPOT2.6BVAP Vertical mounting bracket SPOT2.6BV The SPOT 2.6 can be positioned vertically thanks to a A wall angle piece is also available with the SPOT 2.6. U-shaped bracket fixed to the enclosure and a mobile bracket Compatible with the SPOT2.6BH bracket, this part allows the with angular adjustment via the indexing pin.
- Page 9 User manual - SPOT 2.6 User manual - SPOT 2.6 For suspended use 2.7 Maintenance - Spare parts 1. Same step as for the stand use, except that the mobile bracket must be assembled from the top and the fixing hook must be attached.
- Page 10 APG preset (2) Nominal directivity @-6dB (3) Continuous power according to AES2-2012 in DCR Arbane Groupe (4) Peak power according to AES2-2012 in DCR 8 Rue Johannes Gutenberg - 44340 Bouguenais- France (5) SPEAKON connectors are wired hot pin 1+, cold pin1- Tél : 02.40.46.66.64...
