Planning Installation (continued)

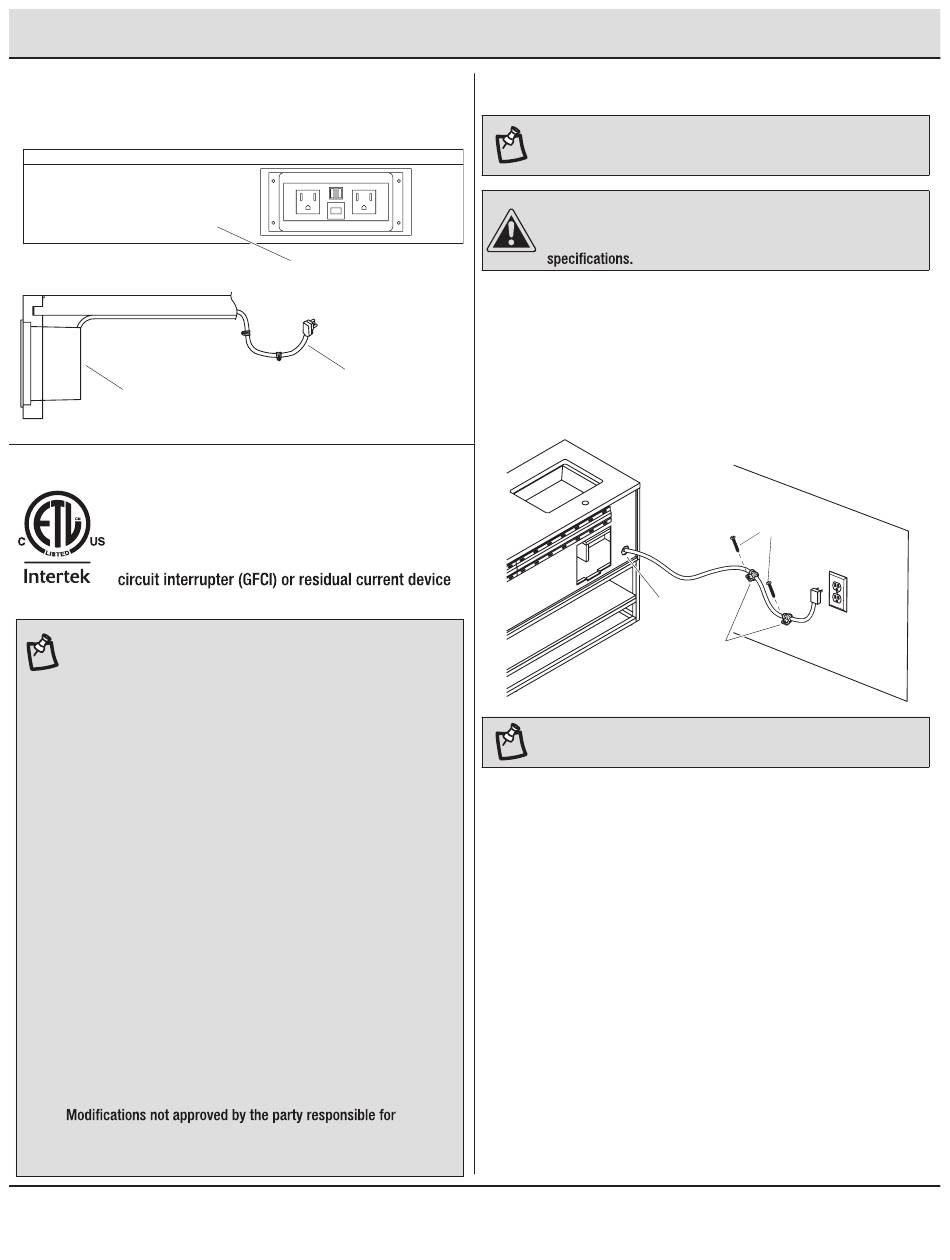

INTEGRATED ELECTRICAL OUTLET

Front View
Side View
Back of integrated
electrical outlet

ELECTRICAL OUTLET SPECIFICATIONS

Specifications: 125 V, 15 A, 60 Hz
Required Electrical Service: One dedicated circuit
required, protected with a Class A ground-fault
5011080
(RCD).
NOTE: This equipment has been tested and found to comply
with the limit for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide|
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communication. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following:
- Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or experienced radio/TV technician
for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received,
including interference that may cause undesired operation.
compliance could void the user's authority to operate
the equipment.
Shelf apron inside vanity
Cord
6

WALL OUTLET

NOTE: Prior to installing the vanity, ensure location of wall
outlet is in line with the plug from the integrated electrical box
once fed through the back panel in the provided opening (1).
CAUTION: For your safety and to achieve the best possible
installation of this cabinet, we recommend you consult with
a professional contractor for electrical outlet placements and
□ Use a pencil to mark the desired location for the two
□ Place cord clamps (CC) around cord.
□ Attach the cord clamps (CC) to the wall using screws (GG)
Back View
1
NOTE: Cord length for the integrated electrical device is
6 ft. 6 in. (201 cm)
GG
CC
