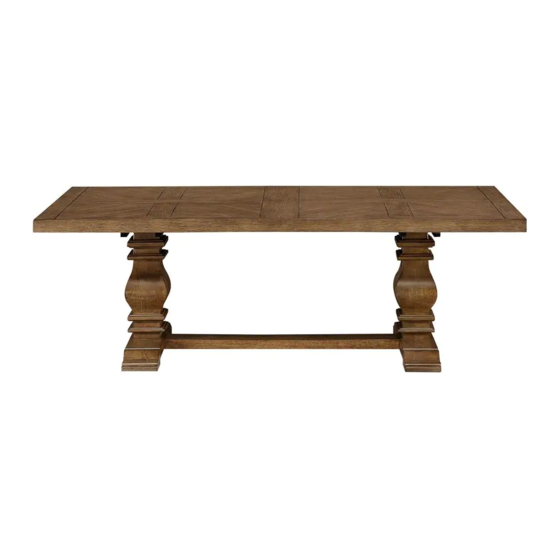

ELDRIDGE TRESTLE DINING TABLE WITH SELF STORING EXTENSION
Questions, problems, missing parts? Before returning to the store,
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this table. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
USE AND CARE GUIDE
call Home Decorators Collection Customer Service.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
improvement needs. Thank you for choosing Home Decorators Collection!
IN HAZE
THANK YOU
Item # 1005566656
Model # HD10-F01
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection ELDRIDGE HD10-F01
Summary of Contents for Home Decorators Collection ELDRIDGE HD10-F01
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this table. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Assembly ............... 5 Safety Information ............2 Assembly (Continued) ..........6 Pre-assembly ..............3 Assembly (Continued) ..........7 Planning Assembly ............. 3 Assembly (Continued) ..........8 Assembly (Continued) ..........9 Tools Required ............3 Assembly (Continued) .......... -
Page 3: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Compare parts with the Hardware Included and Package Contents lists in this document. If anything appears missing or damaged, do not assemble this product. Call Customer Service at 1-800-896-3460. TOOLS REQUIRED Safety Level goggles HARDWARE INCLUDED NOTE: Hardware not shown to actual size. IN PACK Part Part Description... -
Page 4: Pre-Assembly (Continued)
Pre-assembly (continued) PACKAGE CONTENTS Part Component Description Quantity Table Top Extension Leaf Top Support Platform Pedestal Base Stretcher Top support rail... -
Page 5: Assembly
ASSEMBLY Assembly Platform to Pedestal □ Locate support Platform (C) on top of Pedestal (D) In the same direction as “Arrow” sticker. (Reference Fig.1) □ Insert Short Bolts (AA), into drilled holes, make sure it fitted through holes on Pedestal top and tighten them by Allen Key (CC). - Page 6 Assembly Stretcher to Base □ Locate Dowels (HH) into 2 drilled holes on base as shown. In the meantime, screw up the Threaded Rod (EE) manually into the center hole as well. (Reference Fig.3) □ Make sure Dowels & Thread Rod are fitted well and aligned between Base &...
-
Page 7: Assembly (Continued)
Assembly Pedestal to Table Top – P1 □ Place Table Top (A) upside down on a soft surface such as blanket or carpet to prevent it from being scratched. (Reference Fig.7) □ Place Pedestals (D) which installed to Platform (C) at step 1 on Rectangular Block under top. (Reference Fig.7) □... -
Page 8: Assembly (Continued)
Turn Table Over □ Before turn Table over, please tighten all assembly hardware on stretcher and Pedestal from Step.5 Fig.9 NOTE: Adjust table level by adjusting bottom levelers. Assembly Support Rail to Top Unlock □ Unlock the lock underneath of Table Top. (Ref Fig.10) □... -
Page 9: Assembly (Continued)
Assembly Extension leaf to Main Table Top □ Locate Extension Leaf (B) into the space between 2 table tops (Reference Fig.13) □ Make sure 4 sets of latch (Male & female pins) are located correctly. (Reference Fig.14) □ Push forward at 1 end of table to close □... -
Page 10: Assembly (Continued)
Store Extension Leaf □ Unlock the lock underneath Table Top □ Pull 1 end of table and lift up the extension leaf (B) Fig.16 Reference Fig.17 □ Store the Extension Leaf to underneath of Table Top. Reference Fig.18 & 19 □... -
Page 11: Maintenance
Maintenance □ If your furniture is stained or otherwise damaged during use, contact a professional for repairs. Care and Cleaning □ Use a soft, clean cloth that will not scratch the surface when dusting. □ Use of furniture polishes is not necessary. Should you choose to use polishes, test the polish in an inconspicuous area before using over the entire surface of the product. - Page 12 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service. 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
