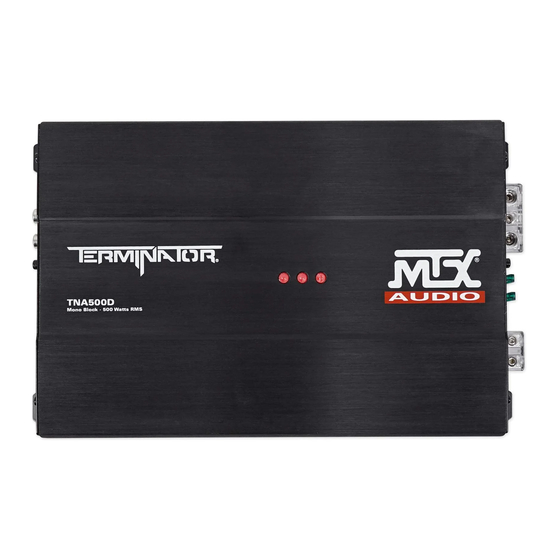

- Page 1 TNA500D Mono Block - 500 Watts RMS TNA500D MONO-BLOCK CLASS-D POWER AMPLIFIER OWNER’S MANUAL M T X . C O M...
-
Page 2: Important Notice
MTX! WE’RE HERE TO HELP We’re here to help with any installation or technical support. Visit mtx.com to chat, call 1-800-225-5689 to speak with an MTX Technical Support representative, or visit youtube.com/user/MTXAudioUSA to view product videos. -
Page 3: Specifications
FEATURES • High Level Input • Stable and Reliable Circuit Design • Surface Mount Component Technology • Direct Insert Power and Speaker Terminals • Short Circuit, Thermal, and Voltage Protection • External Bass Control Knob Included SPECIFICATIONS Primary Ratings • Primary Power Output Rating: - 300W at 4Ω, ≤... -
Page 4: Installation And Mounting
(GND) terminal on the MTX amplifier. 6. Connect a Remote Turn-on wire from the source unit to the MTX amplifier’s (REM) terminal. If the source unit does not have a dedicated Remote Turn-on lead, you may connect to the source unit’s vehicle Acc wire. -
Page 5: Control Functions
5. The amplifier is now calibrated to the output of the source unit. 2. Remote Control Port - Use this port to connect the included MTX EBC. It allows you to control the output level siting at the front of the car. - Page 6 Improper phase can result in loss of bass response and/or poor overall sound quality. MTX recommends using 14 AWG speaker wire with the MTX TNA500D amplifier. 9. Power Terminal (+12V) - This is the main power input for the amplifier and must be connected directly to the positive terminal of the vehicles battery for proper operation.
- Page 7 We’re here to help! If you experience an issue with any of our products , please contact our customer service technical line at 1-800-CALL-MTX to help troubleshoot your issue. If after speaking with our technical experts it is determined that your product is defective, the technician will provide you with a Return Authorization number and all relevant details you’ll need to process your claim...
- Page 8 Like, Follow, & Subscribe © 2023 MiTek Corporation. All rights reserved. MTX is a trademark of MiTek Corporation. All other trademarks are property of their respective owners. Designed and Engineered in the U.S.A. Due to continual product development, all specifications are subject to change without notice.
