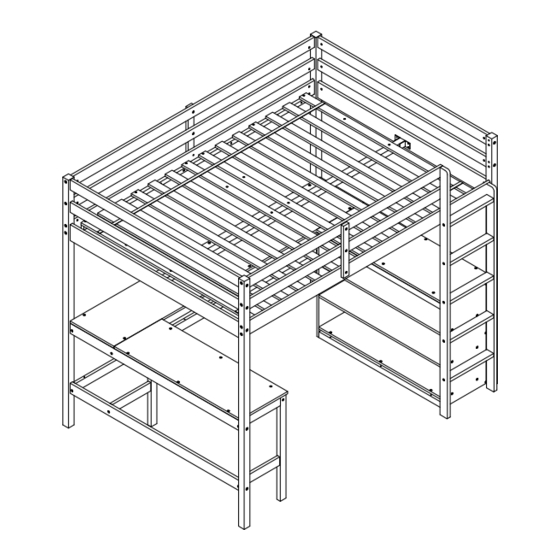

Full loft bed with deskand shelf

Advertisement

Quick Links

ASSEMBLY INSTRUCTIONS
FULL LOFT BED WITH DESK
AND SHELF
C1024
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the C1024 and is the answer not in the manual?

Questions and answers

Summary of Contents for BED BATH & Beyond C1024

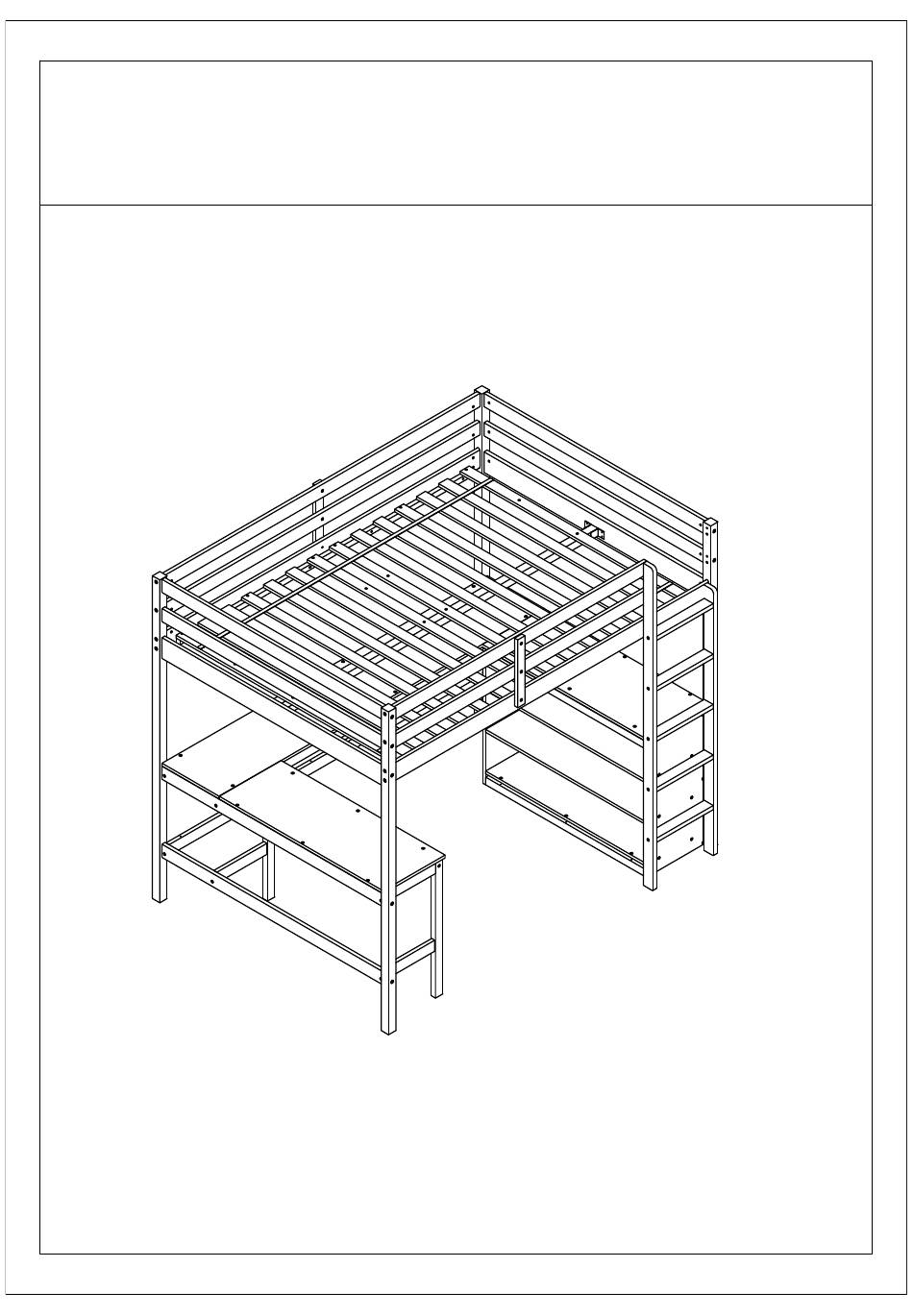

  • Page 1 ASSEMBLY INSTRUCTIONS FULL LOFT BED WITH DESK AND SHELF C1024...
  • Page 2: Detail View

    Detail View...
  • Page 3: Part List

    Part List Hardware List C1024 (1-2) Leg (Left Front / Right back ) - 2pcs Leg (Left back) - 1pc Leg (Right Front) - 1pc Side rail (front) -1pc Side rail (back) -1pc Long guard rail (Back) - 2pcs Vertical guard rail - 2pcs...
  • Page 4 Part List C1024 (2-2) Upper horizontal bar HB/FB - 4pcs Divider horizontal bar HB/FB - 2pcs Lower horizontal bar HB - 1pc Lower horizontal bar HB - 1pc Lower horizontal bar FB - 1pc Lower horizontal bar FB - 1pc...
  • Page 5 Hardware List C1024 (1-2) 8*30mm Wood dowel (22pcs) Hex-Head bolts (14pcs) Hex-Head bolts (25pcs) 40mm Hex-Head bolts (42pcs) Hex-Head bolts (6pcs) Hex-Head bolts (6pcs) (1/4")4.5*58mm 1/4"*15 (9.5mm) 40mm Hex-Head bolts (26pcs) Allen key (2pcs) Horizontal-Hole bolts (81pcs) 3.5*15mm 116*40*27mm Metal bracket (2pcs)
  • Page 6 STEP 1: 10PCS 10PCS Note:Part 7 will face up with the "x" mark on it, otherwise it cannot be tightened STEP 2: 10PCS 10PCS Note:Part 7 will face up with the "x" mark on it, otherwise it cannot be tightened...
