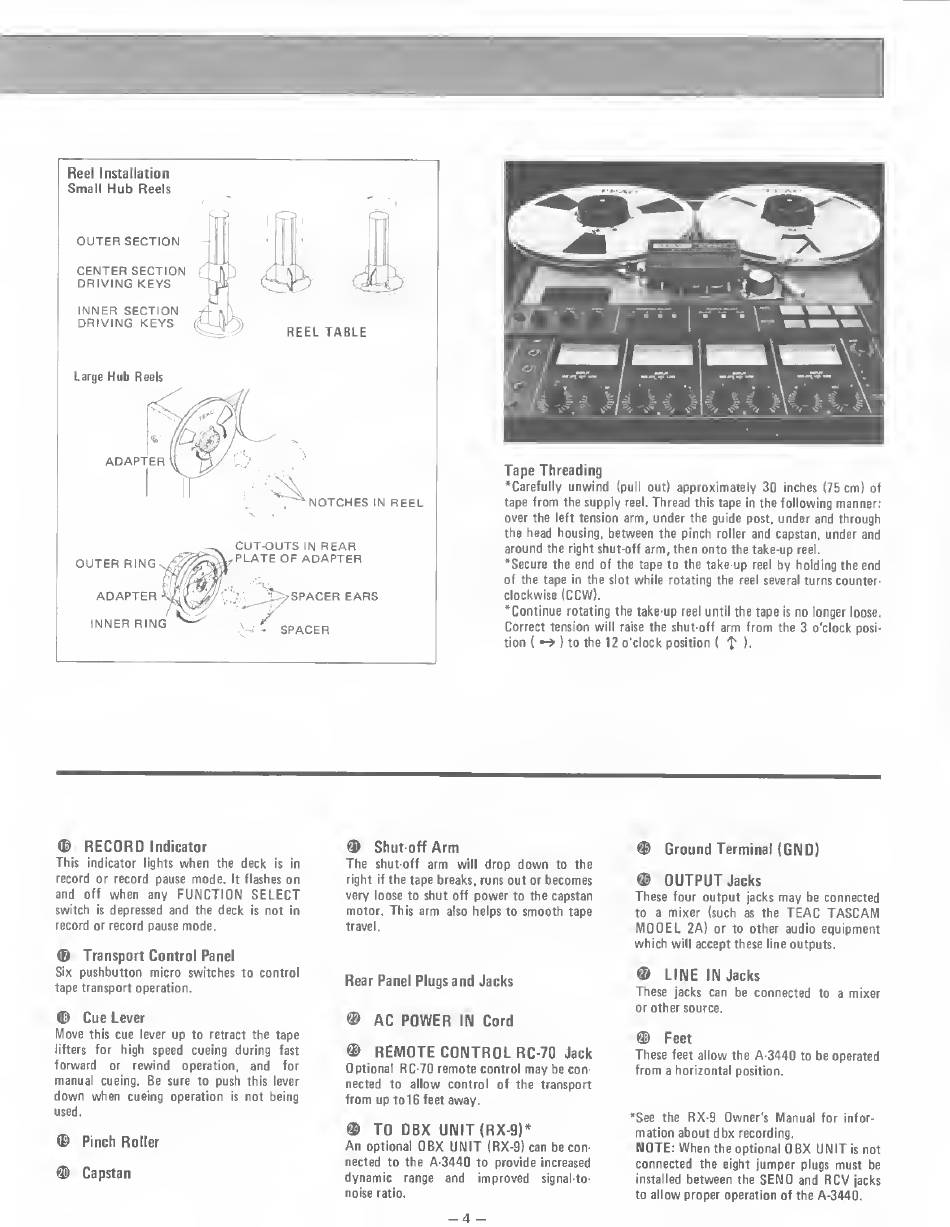

Reel Installation
Small Hub Reels
OUTER SECTION
CENTER SECTION
DRIVING KEYS
INNER SECTION
DRIVING KEYS
C ^
C 5
REEL TABLE
Large Hub Reels
NOTCHES IN REEL
OUTER RING
ADAPTER
INNER RING
CUT-OUTS IN REAR
PLATE OF ADAPTER
EARS
— SPACER
Tape Threading
•Carefully unwind (pull out) approximately 30 inches (75 cm) of
tape from the supply reel. Thread this tape in the following manner:
over the left tension arm, under the guide post, under and through
the head housing, between the pinch roller and capstan, under and
around the right shut-off arm, then onto the take-up reel.
•Secure the end of the tape to the take-up reel by holding the end
of the tape in the slot while rotating the reel several turns counter¬
clockwise (CCW).
•Continue rotating the take-up reel until the tape is no longer loose.
Correct tension will raise the shut-off arm from the 3 o'clock posi¬
tion (
) to the 12 o'clock position ( f )•
©
RECORD Indicator
This indicator lights when the deck is in
record or record pause mode. It flashes on
and
off when any FUNCTION SELECT
switch is depressed and the deck is not in
record or record pause mode.
© Transport Control Panel
Six pushbutton micro switches to control
tape transport operation.
©
Cue Lever
Move this cue lever up to retract the tape
lifters for high speed cueing during fast
forward
or
rewind
operation,
and
for
manual cueing. Be sure to push this lever
down when cueing operation is not being
used.
© Pinch Roller
©
Capstan
©
Shut-off Arm
The shut-off arm will drop down to the
right if the tape breaks, runs out or becomes
very loose to shut off power to the capstan
motor. This arm also helps to smooth tape
travel.
Rear Panel Plugs and Jacks
©
AC POWER IIM Cord
©
REMOTE CONTROL RC-70 Jack
Optional RC-70 remote control may be con¬
nected to allow control of the transport
from up to 16 feet away.
©
TO DBX UNIT (RX-9)*
An optional DBX UNIT (RX-9) can be con¬
nected to the A-3440 to provide increased
dynamic
range
and
improved
signal-to-
noise ratio.
©
Ground Terminal (GND)
©
OUTPUT Jacks
These four output jacks may be connected
to a mixer (such as the TEAC TASCAM
MODEL 2A) or to other audio equipment
which will accept these line outputs.
©
LINE IN Jacks
These jacks can be connected to a mixer
or other source.
©
Feet
These feet allow the A-3440 to be operated
from a horizontal position.
•See the RX-9 Owner's Manual for infor¬
mation about dbx recording.
NOTE: When the optional DBX UNIT is not
connected the eight jumper plugs must be
installed between the SEND and RCV jacks
to allow proper operation of the A-3440.
