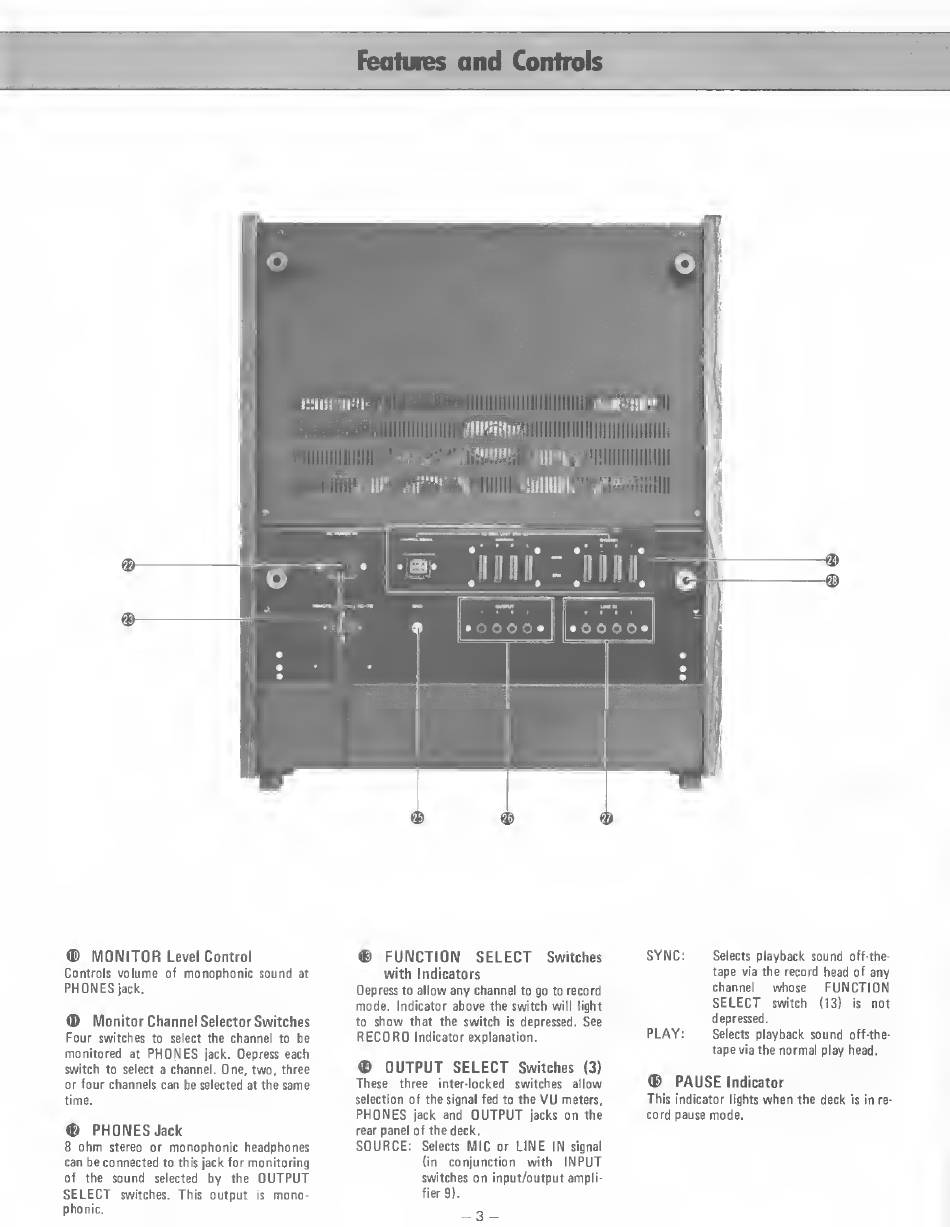

Features and Controls
© MONITOR Level Control
Controls volume of monophonic sound at
PHONES jack.
® Monitor Channel Selector Switches
Four switches to select the channel to be
monitored at PHONES jack. Depress each
switch to select a channel. One, two, three
or four channels can be selected at the same
time.
© PHONES Jack
8 ohm stereo or monophonic headphones
can be connected to this jack for monitoring
of the sound selected by the OUTPUT
SELECT switches. This output is mono¬
phonic.
© FUNCTION SELECT Switches
with Indicators
Depress to allow any channel to go to record
mode. Indicator above the switch will light
to show that the switch is depressed. See
RECORD Indicator explanation.
© OUTPUT SELECT Switches (3)
These three inter-locked switches allow
selection of the signal fed to the VU meters,
PHONES jack and OUTPUT jacks on the
rear panel of the deck.
SOURCE: Selects MIC or LINE IN signal
(in conjunction with INPUT
switches on input/output ampli¬
fier 9).
SYNC: Selects playback sound off-the-
tape via the record head of any
channel whose FUNCTION
SELECT switch (13) is not
depressed.
PLAY: Selects playback sound off-the-
tape via the normal play head.
© PAUSE Indicator
This indicator lights when the deck is in re¬
cord pause mode.
-3
-
