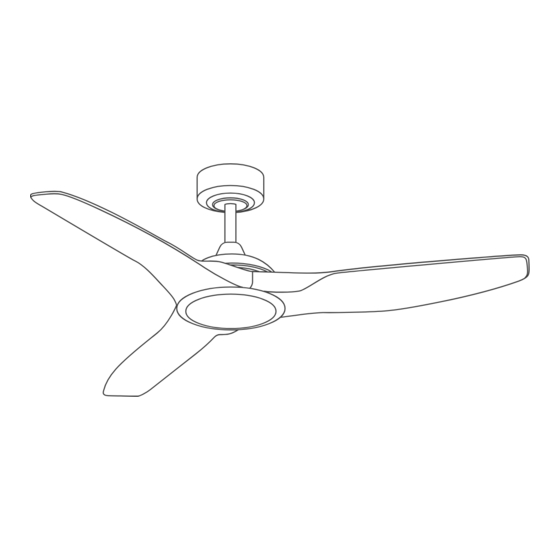

- Page 1 CEILING FAN INSTALLATION INSTRUCTIONS CFWL, CFBL, CFW, CFB BUSINESS NAME: CONTACT: INSTALLATION DATE:...
-
Page 3: Installation Notes
INSTALLATION NOTES... - Page 4 CEILING FAN INSTALLATION INSTRUCTIONS IMPO RTA N T INSTA LL AT IO N, USER & WA RRA NTY I NSTRUC TIO NS ¬ Please read these instructions carefully before installing and using the appliance. Keep the instructions handy for future reference. ¬...
- Page 5 10. Make sure the fan is switched off from the supply mains before cleaning. SAFETY PRECAUTIONS FOR BATTERIES 1. Always use 2 x AAA battery type for CFWL CFBL and 1 x A23 12V battery type for CFW CFB with this ceiling fan remote controller.
-
Page 6: Parts List
PARTS LIST ITEM QUANTITY Hanger Bracket Down rod Assembly Canopy Clevis Pin Hairclip Pin Canopy Screws Magnetic Cover Coupling Cover Top Housing Fan Motor Assembly Blade Screws Blades LED Light Kit Lampshade Remote Control Receiver Remote Holder... - Page 7 I N S TA L L AT I O N I N S T R U C T I O N S...
-
Page 8: Installation
INSTALLATION This fan is designed for indoor spaces. Though not waterproof, it can be installed in alfresco settings and coastal regions, as long as it is installed in an area safe from water, wind and dust, with at least one wall on the side. - Page 9 I N S TA L L AT I O N I N S T R U C T I O N S Attach fan blades to motor using blade screws provided. Carefully lift the fan and place the down rod with hanger ball assembly onto the hanger bracket.
- Page 10 Plug in all leads from the power input to the receiver. Take the canopy and twist onto the pre-loosened ceiling mount screws carefully. Once the canopy is attached, slide the magnetic ring up to cover the screws.
-
Page 11: Remote Control Settings
I N S TA L L AT I O N I N S T R U C T I O N S REMOTE CONTROL SETTINGS AND OPERATIONS CFWL, CFBL Fan Off Speeds 1-6 Reverse – Summer/Winter Dim up. (Press, or press and hold dim up button for continuous dimming) Dim down. -
Page 12: Cleaning Safeguards
∂ The LED lamp in the fan is built-in and is non-replaceable. Voltex warrants all its ceiling fans against defective workmanship and faulty materials for 7 years from the original date of purchase. Please retain proof of purchase and electrical certificate of compliance.
