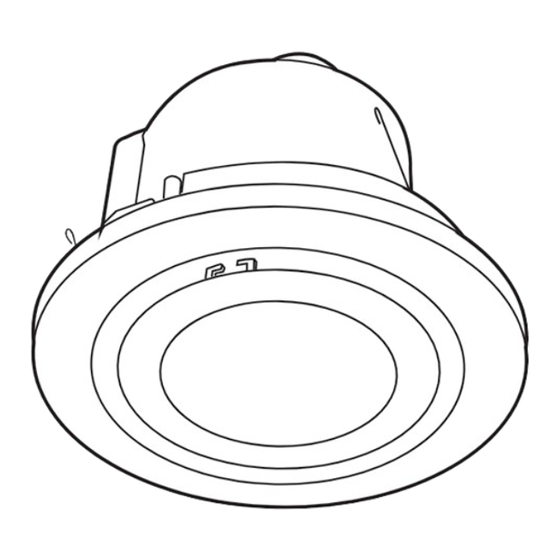

- Page 1 II290317 Installation & User Guide Voltex Round Ceiling Exhaust Fan with LED Light VEFLED-200 (12W LED) VEFLED-250 (15W LED) 220-240V~; 50Hz; 30W (VEFLED-200) or 35W (VEFLED-250) IMPORTANT: PLEASE READ AND SAVE THESE INSTRUCTIONS...
- Page 2 IMPORTANT INSTALLATION, USER & WARRANTY INSTRUCTIONS Thank you for your purchase of the Voltex side ducted, flush mounted, round ceiling exhaust fan with LED light (appliance). Please read these instructions carefully before installing and using the appliance. Keep the instructions handy for future reference.
- Page 3 Check that the electrical wiring can be routed from the wall switches to the mounting location. ® © Voltex Electrical 2016. All Rights Reserved.
- Page 4 Use the template card provided as a hole cutting template to mark out the intended hole for mounting the appliance (it may be safer to mark the position from above the ceiling where obstructions are clearly visible, rather than from inside the room). ® © Voltex Electrical 2016. All Rights Reserved.
- Page 5 Remove the facia of the exhaust fan by pushing the spring on each side together and then guide it through the slot. There are three mounting clips on the VEFLED-200 and four mounting clips on the VEFLED-250. Turn all mounting clips toward the body of the exhaust fan (centre).
- Page 6 REPLACEMENT LAMPS The LED Light source cannot be replaced. Voltex Electrical reserves the right to make improvements or changes to all information, drawing, data etc contained and/or described herein at any time and at its own discretion without prior notice.
