INSTALLATION GUIDE

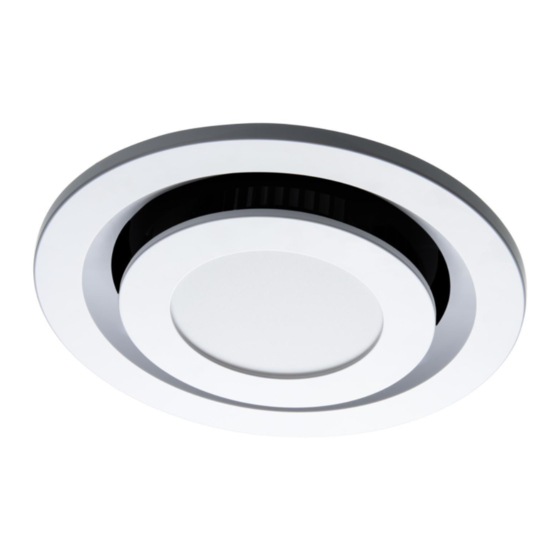

Voltex Round Ceiling Exhaust Fan
with 10W Tricolour LED Light
Flush Mounted
VREF-LED
220-240Va.c. 50Hz 90W Climatic Class T IPX2
IMPORTANT INSTALLATION, USER & WARRANTY INSTRUCTIONS
Please read these instructions carefully before installing and using the appliance. Keep the
instructions handy for future reference.
IMPORTANT: This appliance does not come with a cord or a plug. This appliance must be installed in
accordance with national and local council building regulations, and the Australian and New Zealand
wiring rules AS/NZS 3000 latest edition thereof.
ALL ELECTRICAL WORK MUST BE CARRIED OUT BY A LICENSED ELECTRICAL CONTRACTOR OR
ELECTRICIAN.
CAUTION: The appliance should not be installed directly above a bath, shower or fixed water container.
The appliance must not be installed in a position where water may splash onto the appliance.
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE.
GENERAL SAFETY WARNINGS
To reduce the risk of fire, electrical shock or injury to persons or property:
1.
Use this appliance only as described in this manual. Any other use not recommended by Voltex
Electrical may cause fire, electric shock, or injury to persons and void the warranty. If you have
questions, please contact Voltex Electrical first.
2.
Always operate the appliance from a power source of the same rated voltage, frequency and
power input as indicated on the appliance identification plate.
3.
This appliance is intended for household use and similar applications only. It is not suitable for
use in an environment heavily laden with dust.
4.
This appliance is not intended for use by persons (including children with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.
5.
Do not operate any appliance that malfunctions, or is dropped or appears damaged in any way.
6.
There are no user-serviceable parts inside the appliance. Contact your local electrician if
servicing or maintenance is required.
7.
This appliance is designed for indoor use only.
© Voltex Electrical 2019. All Rights Reserved.
VREF-LED II09102019 SL
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Voltex VREF-LED
Summary of Contents for Voltex VREF-LED
- Page 1 To reduce the risk of fire, electrical shock or injury to persons or property: Use this appliance only as described in this manual. Any other use not recommended by Voltex Electrical may cause fire, electric shock, or injury to persons and void the warranty. If you have questions, please contact Voltex Electrical first.
- Page 2 NOTE: Make sure the ducting will reach from the external vent to the centre of installation of the exhaust fan. Flexible Duct ® © Voltex Electrical 2019. All Rights Reserved.
- Page 3 Carefully cut around the line. We recommend using the Voltex adjustable hole cutter. Remove the fascia of the exhaust fan by releasing the two fascia springs, and disconnecting the LED plug by pulling apart.
- Page 4 Voltex warrants its ceiling exhaust fans against defective workmanship and faulty materials for 3 years from the original date of purchase. Please retain proof of purchase and certificate of electrical compliance. Contact Voltex Electrical on 1300 722 275 (Australia) or 0800 55 66 33 (New Zealand) for any warranty claims. Voltex Electrical Australia ®...
