Summary of Contents for LGL KYC

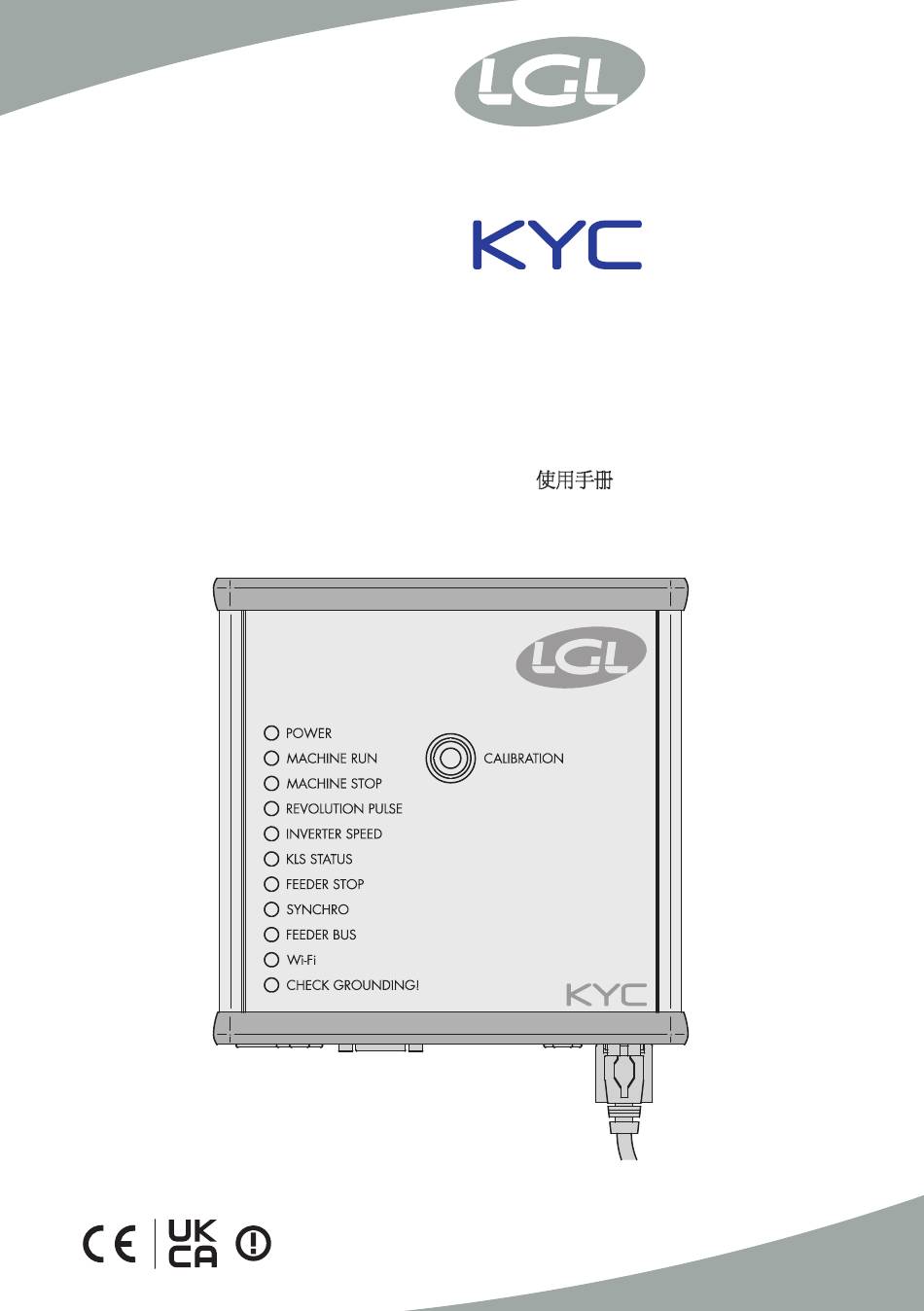

- Page 1 MANUALE DI ISTRUZIONE INSTRUCTION MANUAL NOTICE D'INSTRUCTION BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCION EL KİTABI 取扱説明書...
- Page 2 Scope of supply: Design, manufacture and after sales service of yarn and weft feeders, measuring winders, stands, creels and oil systems for textile machinery. TRADUZIONI DELLE ISTRUZIONI ORIGINALI. TRANSLATION OF THE ORIGINAL INSTRUCTIONS. TRADUCTIONS DES INSTRUCTIONS D’ORIGINE. ÜBERSETZUNG DER ORIGINALANLEITUNGEN. TRADUCCIÓN DE LAS INSTRUCCIONES ORIGINALES.
- Page 3 Doc. no.: MAN/KYC Rev. 8 L.G.L. Electronics is gratified by your choice and thanks you for the preference. INSTRUCTION MANUAL ISSUED BY: Service Date: 01/09/2019 Manager APPROVED BY: Technical Date: 01/09/2019 Manager...
-
Page 4: Table Of Contents
INDEX General features Introduction KYC information LED KYC Dip Switches Steps to do to include the KYC in an infrastructure WIFI mode: Ad hoc and Soft AP Connection 2.1.1 Get connection with KYC throguh WIFI or LAN 2.1.2 Open KnittingGlobal software based upon JAVA... - Page 5 INDEX YCM feature: YARN consumption YCM table saving Import the YARN consumption file into open office Import the YARN consumption file into open office YCM example 7.5.1 Create machine configuration 7.5.2 Get yarn consumption information YARN consumption of belt driven feeders 7.6.1 Belt feeder 7.6.2...
-
Page 6: General Features
1 GENERAL FEATURES 1.1 INTRODUCTION The KYC is an interface between feeders and lap top. It is connected to feeders through a communication cable. It has a wireless or a LAN connection with lap top. The Lap Top is required to have following features: 1. -
Page 7: Kyc Information Led
2. MACHINE RUN. When this yellow LED is on, the machine runs. If it is off the machine is standing. 3. MACHINE STOP. When this red LED turns on, it means that the KYC sends a stop signal to the machine. Normally this led blinks once when the KYC stops the machine. The led does not stay on because the KYC removes the stop signal, thus permitting the operator to turn the machine. -
Page 8: Kyc Dip Switches
: a. KYC has a static ip address of 169.254.0.1 b. KYC acts as a DHCP server assigning to the DHCP clients a pool from 169.254.0.5 up to 169.254.0.1 1 c. For the wireless side, the Wi-Fi mode is forced to be ad hoc and without data encryption;... -
Page 9: Steps To Do To Include The Kyc In An Infrastructure
Note: follow this procedure only in case you want to include the KYC in a company network. After you have connected to the KYC ( in soft ap mode ) with the usual address : 169.254.0.1, you have to select , from the “File” menu, the submenu “Options” ( like below ). - Page 10 1 GENERAL FEATURES After a while the “Setup Connect” menu will appear like below :...
- Page 11 (if you select dynamic addressing you cannot know at priori the IP address). IP Address: For each KYC you have to set a unique static IP address in order to not create IP conflicts : i.e. Machine Nr. 1 -> 192.168.0.1; Machine Nr. 2 -> 192.168.0.2, etc.
- Page 12 If you have any problems in the configuration (i.e. : inserted the wrong SSID) there is always the possibility to revert the KYC to the std. soft ap connection by putting the DS4 dip switch ON on the KYC device: you can then reconnect in sof ap mode and write the correct configuration (before pressing Save remember to put DS4 to OFF position otherwise the KYC will reboot in soft ap mode anyway...).
-
Page 13: Wifi Mode: Ad Hoc And Soft Ap
On the contrary “Soft AP” mode works with Windows XP, Windows7, Windows8 and Windows10. If you can’t connect WI-FI to the KYC device, one of the reasons could be that you are using windows 8 or windows10 and the KYC device is set “Ad Hoc”. In this case we suggest to con-... -
Page 14: Connection
2.1.2 Open KnittingGlobal software based upon JAVA A. Double click on KnittingGlobaleExe_10.0XX.jar: the following picture appears: B. Press Settings – Set IP address. Insert the address of the KYC (169.254.0.1 in the ex- ample of the picture). C. Click on OK. The software will automatically close the program and re start it. When the program restarts, you are connected to the KYC device. -
Page 15: Create A Shortcut To Each Knitting Machine
LGL FILES folder on the PC under local disc. We suggest to copy the .jar file into the LGL FILES folder and create a shortcut on the desktop. It is possible to create a shortcut for each knitting machine, as it is explained in the following pharagraph. -
Page 16: Erase Undesired Feeders From Visualization
2 CONNECTION 4. In the “Target” tab (“Destinazione” in Italian) add the IP address of the KYC: Here in the below example we add SPACE 192.168.1.2 5. At the end rename the short cut on the desktop with the machine name. -
Page 17: Parameters
3 PARAMETERS 3.1 FEEDERS PARAMETERS Press GROUP ALL. Click on one of the two SELECT PARAMETER buttons. A parameter list will appear: Note: The list will be displayed only if there are selected feeders. - Page 18 3 PARAMETERS Feeder Feeder selected not selected Click on the parameter which you would like to see and click on “view parameter” (in the picture Tdes. Dgr). Note: there is the option to select “single” or “change on all feeders of the same type”. “single”: the desired parameter will be shown only for one feeder.
- Page 19 3 PARAMETERS T des. dgr is a read/write parameter, and it is written in white. Read/write means that it is possible to read the parameter value but also to set a desired value. T read dgr is a read only parameter, and it is written in grey.
-
Page 20: Attivo Electronic Brake Settings: Tdes. Dgr And Tread Dgr
It is possible to read actual yarn tension and to program the desired tension on each feeder. For example in the following picture the KYC is reading Tread dgr and Tdes dgr. These parame- ters are written in the feeder square because they have been selected form the list (shown in the previous picture). - Page 21 3 PARAMETERS The continuous reading mode can be stopped any time by pressing STOP. See following picture. In this picture the system is standing and the screen shows the last read numbers. Tdes.dgr is written in white (read/write parameter, 2.8g for first feeder, 2.4g for second feeder and so on).
-
Page 22: List Of Parameters
3 PARAMETERS 3.3 LIST OF PARAMETERS Tdes dgr (read/write): This is the desired tension in tens of grams. Tread dgr (read only): It is the actual tension read from the load cell of the ATTIVO (in tens of grams). ENBrkOPAlr (read/write): if it is =1, when the ATTIVO brake is completely open (open with the pertinent button on located on the ATTIVO support) the feeder send an alarm and the machine cannot start. -
Page 23: Kls
4 KLS 4.1 KLS: AUTOMATIC OUTPUT STOP MOTION SYSTEM KLS system allows the feeder to stop the machine without using a sensor, in case of an output yarn break event. If the yarn gets broken between the feeder and the machine, the feeder will be able to detect the event and stop the machine. - Page 24 3. GREEN BUTTON. ENABLING: there is the possibility to enable or disable the green but- ton that is located on the KYC box (look at the previous picture). If the green button on the KYC box is disabled, the operator can press it as much as he wants, but nothing will happen.
-
Page 25: Button For The Learning Procedure Located On The Kyc Box
4 KLS 4.2 BUTTON FOR THE LEARNING PROCEDURE LOCATED ON THE KYC BOX Green Button Once the installation is finished and the machine is ready to start, perform the following learn- ing procedure: 1. Press the button for the learning procedure until all feeders lights turn on (approximately 1s). -
Page 26: Oyb Sw Tmr
If OYB SW Tmr=0, then the output stop motion system is not active and feeders won’t stop the machine if the yarn gets broken after the feeder. In this case two LED on the KYC box will blink once per second. The KLS STATUS LED is yellow if the KLS is active and it is working;... -
Page 27: Kls Fast (Default Value = 0)
4 KLS 4.4 KLS FAST (DEFAULT VALUE = 0) Compact from SW CMX0040 CMX2014 If this parameter is set to 1, the KLS response time is 40% faster. Note: in case of false stops during production, KLS FAST must be set to 0. 4.5 KLSCM DELAY (DEFAULT VALUE = 86;... -
Page 28: Alarms
5 ALARMS 5.1 FEEDERS ALARMS By clicking on the ALARMS button located on each feeder square, it is possible to ask feeders about their status. If a feeder has its lights ON or blinking, it means the feeder is in alarm condi- tion. - Page 29 5 ALARMS In case feeders are OK, nothing will be shown on the display. Here below a list of the possible alarms: ALARM MEANING ACTIONS AC PWRFAIL Phase number 2 (blue) and / Check input voltage and feeder or phase number 3 (yellow) are connection on the flat cable.
- Page 30 5 ALARMS ALARM MEANING ACTIONS ELBRK OPEN Brake open (ATTIVO). Close it by pressing the related button located on the ATTIVO blck support. PREWINDERR Only during winding up phase It tells that during spool body of the spool body, during the filling up, the machine cannot start up or after a yarn break.
-
Page 31: Configuration
6 CONFIGURATION 6.1 MACHINE CONFIGURATION It is possible to create different feeders groups and work on each group separately. For example if the operator has to set 2grams tension on feeder number 1, number 5, number 9 and so on, it may be easier to create one group with feeder 1, feeder5, feeder9 … The system allows to have on the screen only this specific group and set parameters which are valid only for this group. - Page 32 6 CONFIGURATION On top of the screen there is the name of the group (front in this case) and the operator has the possibility to choose the feeders he wants to associate to the group. He can insert just the single repatition.
- Page 33 6 CONFIGURATION The next picture shows all groups associated in one single repetition. Now press REPEAT icon: The single repetition will be copied on all the other feeders, so that each feeder will be associ- ated to the correct group. Press icon:...
- Page 34 6 CONFIGURATION Press OK. Now groups have been created and they are loaded in teh program. By clicking VIEW GROUPS icon: A drop down menu will appear and the operator will be able to load one group at a time and work with it.
- Page 35 6 CONFIGURATION Please note that the name of the configuration (in this case pippo.mac) will appear top left of the screen, near the LGL connect release writing.
-
Page 36: Opening Of An Existing Configuration
6 CONFIGURATION 6.2 OPENING OF AN EXISTING CONFIGURATION Many different machine configurations can be created depending upon different patterns. These configuration can be saved and re loaded anytime. In order to open an existing configuration, press icon: Choose the .mac desired file (here 4 feeders.mac) and press OPEN. The follwing screen appears:... - Page 37 6 CONFIGURATION Press OK to load the configuration with its parameters. The parameters of the user table will be written in each feeder (different parameters for each different group of feeders). Press CANCEL to load the configuration without paramtìeters. In this case the parameters will have to be set by the operator, if different from the ones already in the feeders before opening the configuration.
- Page 38 6 CONFIGURATION A drop down menu shows the groups list. Choose the group to be displayed and press VIEW GROUP. All feeders of the selected group will be displayed on the screen. Feeders belonging to other groups will not be displayed on the screen. In order to display other feeders, other groups must be selected.
-
Page 39: Ycm
7 YCM 7.1 YCM FEATURE: YARN CONSUMPTION Press YCM tab. The following picture will appear: On the screen select the feeders from which the yarn consumption information is required. If you want YCM with weight calculation click on icon:... - Page 40 7 YCM Info : 1 (g) = 0.0022046341(lb) Press the icon: Press “OK” button. The arrow on the main screen becomes green (System enabled).
- Page 41 7 YCM Press green arrow. If you want a continuous calculation, select “Repeat” On the main screen the following information is given in real time: When calculation is over, “OK” string will appear. Then the yarn consumption will be displayed on the screen for each selected feeder. : if the continuous calculation mode is required, the operator must check the REPEAT tab.
-
Page 42: Ycm Table Saving
7 YCM 7.2 YCM TABLE SAVING Yarn consumption table saving. It is possible to save the yarn consumption in one file and convert it to EXCEL. Once the reading process is over, press save button in the circle. A .lbd file will be saved in the desired folder. By pressing button (available from Globalknitting version 10.25), it is possible to save many yarn consumption files automatical-... -
Page 43: Import The Yarn Consumption File Into Open Office
7 YCM Each .ldb file will be saved adding date and time to the chosen file name. 7.3 IMPORT THE YARN CONSUMPTION FILE INTO OPEN OFFICE Open “Excel”, from “File” menu, choose “open” Select the file to be loaded. In “file type”... - Page 44 7 YCM Press “Open” and upper picture will appear Press “NEXT”. Put a mark on “comma” Press “END”. You will get as a result a file like the one displayed at the end of chapter 7.5.
-
Page 45: Import The Yarn Consumption File Into Open Office
7 YCM 7.4 IMPORT THE YARN CONSUMPTION FILE INTO OPEN OFFICE Press “calc” program. For “FILE” menu choose “OPEN” Select the file to be loaded Press “OPEN”. Picture below will appear: Select “separation” and put a mark on “Comma”. Press “OK”. -
Page 46: Ycm Example
We assume front yarn is a polyester 75dTex, back yarn1 is a nylon 156dtex and back yarn2 is a cotton Ne5. The following procedure explains how to insert the information in the KYC system and how to get the desired results. - Page 47 7 YCM Give a name to each group of feeders. Normally each group processes one yarn. At the end press NEXT. In order to select first group FRONT, move with arrow: If needed, go back with arrow: backward forward repeat exit...
- Page 48 7 YCM Select feeder number 1 and feeder number 3, as it is shown in the next picture. it is important to select the feeders belonging to the first single repetition. Pass to the second group BACK 1 and then to the third group BACK2 and do the same thing with each one.
- Page 49 7 YCM Each feeder has been associated to its group. Press OK. Now the groups are complete. By clicking on icon the following drop down menu appears, with each group: By clicking on the drop down arrow all groups are viewed By choosing one group, for example FRONT, only feeders belonging to FRONT will be dis- played on the screen (all the odd numbers).
- Page 50 7 YCM Here we can insert yarn type and count for each group of feeders. The operator can write YARN TYPE and YARN COUNT and he can select YARN COUNT UNIT from the available units. Then he can add the yarn to the database: in order to have it available for future use, and at the end he has to click on: To send the yarn to all feeders of the FRONT group.
- Page 51 7 YCM The beolw picture shows the result, with FRONT group and its yarn loaded. Click on VIEW GROUPS icon and select another group. Repeat the operation for BACK1 and BACK2.
- Page 52 7 YCM BACK1 BACK2...
- Page 53 7 YCM When all groups have got their yarn, select GROUP ALL, to have the feeders all at once on the screen In the YCM tab each feeder is displayed with its own yarn. The machine configuration is now finished, and it can be saved in order to be used again next time the pattern is processed again.
- Page 54 7 YCM Button like in the below picture. The saved file must be .MAC.
-
Page 55: Get Yarn Consumption Information
7 YCM When the machine configuration has been saved, it is automatically loaded in the system and its name appears top left of the screen. Now the system is ready to be used. 7.5.2 Get yarn consumption information Press button in the YCM tab: The system calculates the yarn consumption in a pattern taking its length in terms of number of machine revolution. - Page 56 7 YCM Insert the number of machine revolution of the pattern and possibly the number of machine needles. Number of machien needles allows to get infomration about yarn consumption every 100 needles. Select between centimeters or inches and between grams or pounds. The System measures the centimeters(inches) of yarn consumed by each feeder, and by exploit- ing the yarn count it converts the centimeters(inches) in grams(pounds).
- Page 57 7 YCM Counting running, 5th revolution out of 10 Counting ended. 10 revolution have been counted and the yarn consumption result is displayed on the screen under each feeder...
- Page 58 7 YCM By pressing icon: The fabric composition is displayed on the screen.
- Page 59 7 YCM By pressing bottom of the screen the yarn consumption information can be saved. Note: The button to save Machine configuration (red circle on TOP) and the button to save yarn consumption information (red circle BOTTOM) are different.
- Page 60 7 YCM The file extension must be .ldb. For each pattern two different files can be saved and used to create a patterns database: a “.mac” file with the machine configuration information and a “.ldb” file with the yarn consump- tion information.
- Page 61 7 YCM YCM file saved and opened with EXCEL <FileName>pattern1</FileName> Revolution Feeder for belt Amount of belt feeders Needles 2400 Consumption 276,48 Consumption 707627,75 PRODUCT GROUP 75 dTex polyester 332037,88 46,93 % cm 24,91 9,01 156 dTex nylon 187550,06 26,51 % cm 29,26...
-
Page 62: Yarn Consumption Of Belt Driven Feeders
There are two possibilities: We add an LGL feeder behind a belt driven feeder, this feeder can be a new feeder in addi- tion to the ones already installed on the machine, or a feeder that is already installed on the machine and that is not being used in that specific pattern. -
Page 63: Belt Feeder
7 YCM 7.6.1 Belt feeder If Belt consumption feeder has been selected, the BELT name will appear among the other groups names, and the system will allow to set the address of the feeder which is installed be- hind one belt driven feeder. In the belt feeder square the operator needs to set the amount of belt driven feeders used in the pattern, so that the system will report the total amount of yarn consumed by all belt driven feeders together. - Page 64 7 YCM The belt driven feeder selected is number 1 only. There is the possibility to select more than one belt driven feeder. In any case none of them will enter in the REPEAT command After teh groups creation is terminated, there is always the possibility to save the configuration. The .mac file will be saved on the PC in the desired folder and will be loaded on the JAVA, appearing top left of the screen (Pippo1.mac in the following picture).
-
Page 65: Belt Sensor
7 YCM The button will provide all information about belt driven feeder address and quantity of belt feeders involved in the pattern. 7.6.2 Belt sensor... - Page 66 7 YCM If Belt consumption sensor has been selected, the following screen will appear: total number of belts (maximum number of belts supported by the sensor: 2) number of feeders groups, not including belts In the example 2 belt groups and 3 feeders groups have been choosen. Press NEXT. The following screen is reated to the belt groups: Select the belt groups and press NEXT Belt group 1 corresponds to the top belt on the...
- Page 67 In the YCM page bottom left the button allows to set belt feeders groups also on the machines where LGL feeders are not installed. The Belt sensor and the KYC device must be installed of course. Open global knitting program, access the YCM page and click on the button.
- Page 68 7 YCM The following screen appears, where it is possible to set belt groups but it is not allowed to set feeders groups: At the end the program will report only the belt groups, like in the following picture: Note: can be used also to add belt sensors to an existing machine configuration from the YCM page.
-
Page 69: Application Close
8 APPLICATION CLOSE 8.1 APPLICATION CLOSE When you close the application, this picture appear: By pressing “YES”, the last configuration file is saved and when the application starts again, the file is immediately avaible. By pressing “NO” the configuration in use is not saved. Press “Abort”... - Page 72 F +39 035 733 146 Via Ugo Foscolo, 156 for any technical or commercial reason without prior lgl@lgl.it 24024 Gandino (BG) notice and without any obligation to supply these www.lgl.it Italy...
