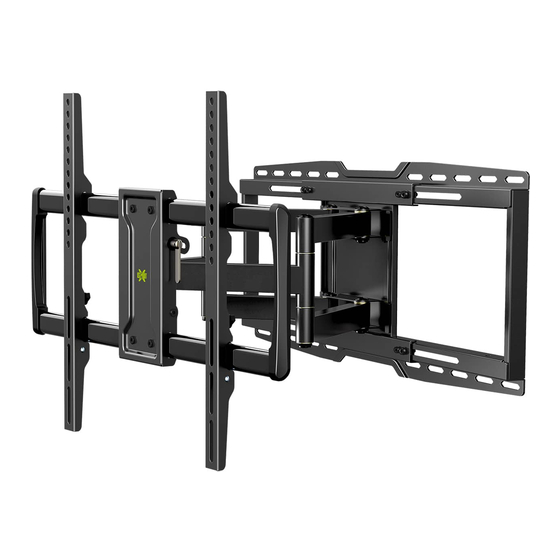

- Page 1 XML018-09 INSTRUCTION MANUAL For 32-90" TV If you have any questions along the way, just give us a call 1-800-460-0956 or mail to customerservice@x-mount.com. We’re ready to help! CA-A2...
- Page 2 Before getting started, let’s check below lists to make sure it is just right for you! MAX:600mm/23.62" (MIN:200mm/7.87") Check your TV VESA is within No? This mount is NOT compatible. MAX:400mm/15.75" Min and Max size (MIN:100mm/3.94") Yes? Perfect ! CAUTION: DO NOT exceed the maximum weight Does your TV No? Perfect –...
- Page 3 TV INTERFACE MAX:600mm[23.62in] MIN:200mm[7.87in] MAX:400mm [15.75in] MIN:100mm [3.94in] WALL PLATE TOP VIEW - EXTENDED SIDE VIEW - RETRACTED 203mm [8.00in] +5° [0.35in] 310mm [12.20in] 485mm [19.09in] -15° 406mm [16.00in] 610mm [24.00in] FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED TOP VIEW - EXTENDED 662mm [26.06in] 430mm...
- Page 4 WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.
- Page 5 Parts and Hardware for STEP 2 Lag Bolt 4MM Allen Key End support 5MM Allen Key M5x10mm Bolt Wall Plate Mounting template Velcro x3 Contact us at telephone 1-800-460-0956 (USA) or mail to customerservice@x-mount.com. to have these additional pieces shipped directly to you. Concrete Wall Anchor 4pcs...
- Page 6 Assemble End Supports to Wall Plate Put the and supports into wall plate by using allen key to fasten bolt...
- Page 7 1-1 Select TV Screws...
- Page 8 1-2 Figure out the suitable position of brackets HIGH MOUNTING HOLES LOW MOUNTING HOLES TV BRACKETS MUST BE LEVEL INSTALL UP/DOWN IF NEEDED...
- Page 9 1-4 Attach the TV Plate 1-3 Need Spacer? No, choose suitable screws and washers. Yes, choose suitable screws, washers and spacers. Tips: If you need to combine M6/M8(c/e/f) screws with 2.5mm spacers( i ), you have to remove the inner circle.
- Page 10 CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall, must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) ●...
- Page 11 3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. IMPORTANT: Pilot holes must be drilled to a depth of 2.5 in. (64 mm). Be sure to drill into the center of the studs. 4. Install wall plate using lag bolts .
- Page 12 CAUTION: Avoid potential personal injury or property damage! ● Mount the wall plate assembly unit directly onto the concrete surface ● Minimum solid concrete thickness: 8 in. (203 mm) 1. Position the mounting template on the wall at your desired height. Level the mounting template and mark the hole locations.
- Page 13 3. Insert four anchors. CAUTION: Be sure the anchors are seated flush with the concrete surface. 4. Insert wall plate using lag bolts . Tighten the lag bolts only until they are pulled firmly against the wall plate. CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts.
- Page 14 Before hanging TV, please try to pull the mount to make sure that it has been assembled on the wall tightly.
- Page 15 Loosen the handles of brackets, hang and secure TV to wall plate. Fasten the handle after secure TV. Loosen Handle...
- Page 16 5-1 TV leveling adjustment (±3°): Loosen 2 leveling bolts on the rear of TV plate by maximum 2 turns, adjust to level and retighten to secure. Loosen Tighten...
- Page 17 5-2 Tilting angle adjustment (+5°/-15°) ： Loosen 2 handles (as below shown) at the same time to tilt TV to your desired angle and fasten fully after finished. +5° Handle +5° -15° Handle -15°...
- Page 18 5-3 TV side to side movement 8": Loosen four bolts by maximum 2 turns and need two people cooperation to lift the assembly unit (TV + TV plate + arms) at the same time slide it left or right along the rail of the wall plate to perfectly position the TV.
- Page 19 5-4 Cables manage: Manage TV cables orderly and guide them through the velcros. Velcro...
