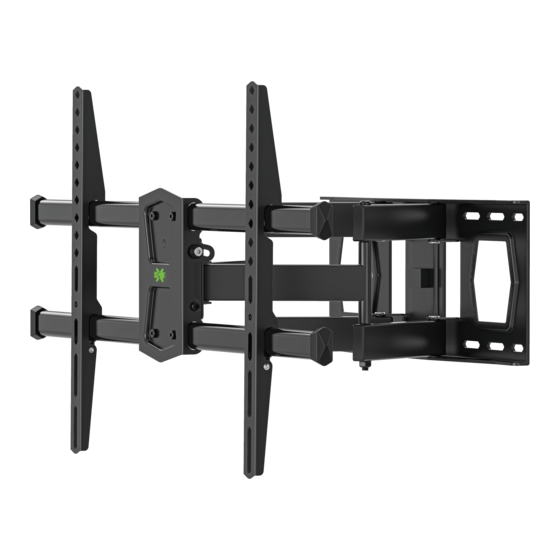

- Page 1 XML030-K INSTRUCTION MANUAL For 42-82" TV If you have any questions along the way, just message to us. We’re ready to help! USA-C0...
- Page 2 CAUTION: PLEASE READ ENTIRE MANUAL PRIOR TO USE AND SAVE THESE INSTRUCTIONS Before getting started, let’s check below lists to make sure it is just right for you! MAX:600mm/23.62" (MIN:200mm/7.87") Check your TV VESA is within No? This mount is NOT compatible. Min and Max size MAX:400mm/15.74"...
- Page 3 Dimensions TV INTERFACE 200mm [7.87in] 400mm 100mm [15.74in] [3.94in] 600mm [23.62in] WALL PLATE TOP VIEW - EXTENDED SIDE VIEW - EXTENDED +5° [0.35in] 388mm 144mm [15.26in] [5.67in] -15° 406mm [16.00in] FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED SIDE VIEW - EXTENDED 685mm [26.97in] 73mm...
-
Page 4: Parts And Hardware
Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. - Page 5 Parts and Hardware for STEP 2 Lag Bolt Wall Plate Unit Velcro x3 Level Mounting template Concrete wall anchor (NOT INCLUDED) Contact us and message to us to have these additional pieces shipped directly to you. 8 "(20 3.2mm) Concrete Wall Anchor 1 6"(4 06 .4mm) Ø10x50mm 4pcs Parts and Hardware for STEP 3...
-
Page 6: Step 1 Attach Brackets To Tv
STEP 1 Attach Brackets to TV 1-1 Select TV Screws... - Page 7 1-2 Figure out the suitable position of brackets HIGH MOUNTING HOLES LOW MOUNTING HOLES TV BRACKETS MUST BE LEVEL INSTALL UP/DOWN IF NEEDED...
- Page 8 1-4 Attach the TV Plate 1-3 Need Spacer? No, choose suitable screws and washers. a b c Yes, choose suitable screws, washers and spacers. d e f g h i Tips: If you need to combine M6/M8(c/e/f) screws with 2.5mm spacers( i ), you have to remove the inner circle.
- Page 9 STEP 2A Attach Wall Plate to Wall Wood Stud Option CAUTION: Avoid potential personal injury or property damage! ● Drywall covering the wall, must not exceed 5/8 in. (16 mm) ● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) ●...
- Page 10 3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. IMPORTANT: Pilot holes must be drilled to a depth of 2.5 in. (64 mm). Be sure to drill into the center of the studs. 4. Install wall plate using four lag bolts .
- Page 11 STEP 2B Attach Wall Plate to Solid Concrete Wall CAUTION: Avoid potential personal injury or property damage! ● Mount the wall plate assembly directly onto the concrete surface ● Minimum solid concrete thickness: 8 in. (203 mm) 1. Position the mounting template on the wall at your desired height. Level the wall plate and mark the hole locations.
- Page 12 3. Insert four anchors. CAUTION: Be sure the anchors are seated flush with the concrete surface. 4. Insert wall plate using four lag bolts . Tighten the lag bolts only until they are pulled firmly against the wall plate. CAUTION: Improper use could reduce the holding power of the lag bolt. DO NOT over-tighten the lag bolts.
- Page 13 STEP 3 Extension Arms and end support Assembly Please make sure you install these extension arms in right direction. Inside Outside Outside Inside...
- Page 14 STEP 4 Wall Plate Installation Integrity Test Before hanging TV, please try to pull the mount to make sure that it has been assembled on the wall tightly. 120 LBS (54.5 kg)
- Page 15 STEP 5 Hang and Secure TV to Wall Plate Hang TV/bracket assembly onto wall plate, wrap clips on bracket around extension arms and tighten them using bolts...
- Page 16 STEP 6 Adjustments 6-1 TV leveling adjustment (±4°): Loosen 4 leveling bolts on the rear of TV plate by maximum 2 turns, adjust to level, and retighten to secure. ±4° Loosen Tighten...
- Page 17 6-2 Tilting angle adjustment (+5°/-15°) ： Pull TV to your desired angle then fasten 2 tilting bolts with Allen key +5° Tighten Loosen -15° +5° Tighten -15° Loosen...
- Page 18 6-3 Cables manage: Manage TV cables orderly and guide them through the velcros. Velcro...
