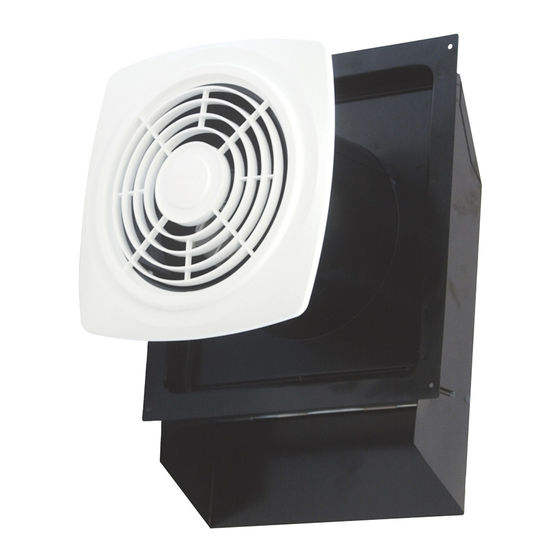

Air King EXHAUST FANS EWF-180 Specifications

180 CFM/6.5 SONES @ 0.03" WG. -HVI CERTIFIED
Grill
White polymeric grill, dimensions - 11
Blower Wheel
Axial Fan Blade — plastic 7.5" Diameter 10 paddle.
Motor
Heavy duty, permanently split capacitor, plug-in, 4 pole motor, life time
lubrication, thermally protected. Rated 120 volts, 60 hz., 0.80 amps.
Fan Housing
Rugged heavy gage steel housing finished with electro-statically applied
epoxy paint stands up to UV light, water, and temperature extremes.
Duct
Metal 8" round duct, vents directly to outside, includes springloaded
aluminum backdraft damper.

Unit Mounting

Exterior wall mounting eliminates the need for ductwork by venting
directly outdoors and can be installed in walls 4" to 9" thick.
Ventilating Area
For rooms up to 225 sq. ft.
Single Pack Shipping Info
Box Dim: 19 1 / 4 " x 15 1 / 2
UPC: 0-8316221801-8
Shipping Weight: 13.7 lbs.
Air Flow - CFM 193
PROJECT
LOCATION
CONTRACTOR
FAN MODEL
CFM
NUMBER NUMBER
C US
Specifications subject to change without notice.
120 Volts, .80 amps, 60 hz.
1 / 2 " x 11 1 / 2 ".
" x 10 1 / 2 "
Static Pressure (inches of w.g.)
0 0.03 0.1 0.15
180 157 147
IN
RPM WATTS
W.G.
14 1 / 4 "
11 11 / 16
PERFORMANCE
0.2 0.25 0.3
139 134 131
ARCHITECT
ENGINEER
SUBMITTED BY
AMPS SONES QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (610) 692-7400 ¥ 877-304-3785
Fax: (610) 696-8048
SPECIFICATIONS
EWF-180
EXHAUST FANS
14 1 / 4 "
8" Dia
"
11 "
11 / 16
4 5 / 8 " - 9 1 / 2 "
CUL/HVI
HVI Sones Fan Speed
@ .1 SP RPM
0.35
128 6.5
DATE
OPTIONAL EQUIPMENT
& REMARKS
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
Power
Watts
2200 80
Updated 11-08
