- Page 1 DIS334 Series Voltage Single-Axis Inclination Switch Technical Manual...

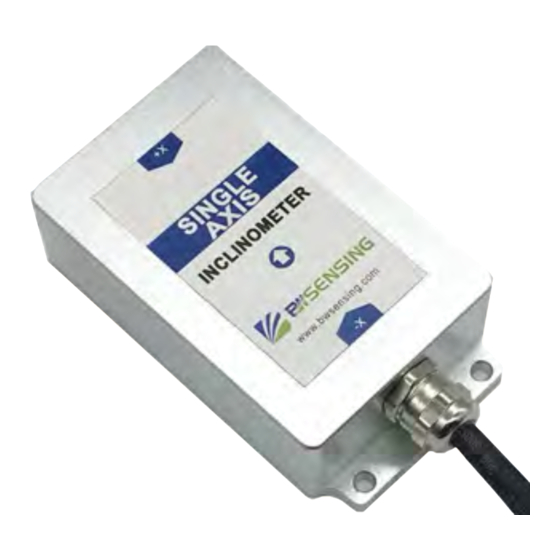

- Page 2 Voltage Single-Axis Inclination Switch Introduction Designed by Bewis Sensing Technology LLC, The DIS334 series is a single-axis inclination switch, with a measuring range of ±180°. When the measured inclination angle exceeds the alarm threshold, the output line becomes closed (disconnected is also available). If the measured inclination does not exceed the alarm threshold, the output line is normally open (also normally closed).
-
Page 3: Specifications
DIS334 Voltage Single-Axis Inclination Switch Specifications Electrical Specifications Product number DIS334 Typical Power Supply (V) Conditions Non-loaded Operating current(mA) Normally closed maximum current(mA) Operating temperature(°C) Store temperature(℃) +100 ± 18 0 Measuring range(°) dynamic 2°/ Static 0.1° Accuracy(°) 0.01 Resolution(°) Measuring axis Alarm axis Zero temperature... - Page 4 DIS334 Voltage Single-Axis Inclination Switch Mechanical Characteristic Metal connector（standard cable is 1.5m） Connector Protection level IP67 Magnesium alloy anodizing Shell material Installation Three M4 screws Package size Product Size：L103.8*W55.4*H26（mm） Aviation connector：116 Metal connector：105 Top view Bare plate product size Product size: L69*W49*H12(mm) Note: ±1mm error for length and width dimensions, please refer to actual size.
-
Page 5: Installation Direction
DIS334 Voltage Single-Axis Inclination Switch Installation direction The correct installation method can avoid measurement error. The following points should be made when installing the sensor: First of all, to ensure that the sensor mounting surface and the measured surface completely close, the measured surface should be as horizontal as possible, can not have the angle shown in Figure A and Figure C, the correct installation is shown in Figure B and Figure D. -
Page 6: Electrical Connections
DIS334 Voltage Single-Axis Inclination Switch Electrical Connections Electrical interfaces Cable color WHITE ORANGE BLACK YELLOW PURPLE BEOWN GREEN & Function -X OUT +X OUT DC 9-35V 9~35V BROWN +X OUT GREEN ORANGE -X OUT YELLOW BLACK Tel：+86 189 0617 7922 Bewis Sensing Technology LLC www.bwsensing.com... - Page 7 DIS334 Voltage Single-Axis Inclination Switch Debug software Users can directly download serial assistant on official website (Supports-Download). You can also use more convenient and intuitive PC software. DIS334 supporting serial debugging software can be connected to the inclinometer on the computer for angle display.
- Page 8 DIS334 Voltage Single-Axis Inclination Switch Protocol 1 Data Frame Format： （8 data bits，1 stop bit，No parity check，default baud rate 9600） Identifier Data Frame Length Command Address Code Checksum (1byte) （1byte） （1byte） （1byte） （Nbyte） （1byte） 0x77 Data Format: Hexadecimal Identifier: Fixed to 77(partly 68) Frame Length: Length from Frame Length to Checksum（included）...
- Page 9 DIS334 Voltage Single-Axis Inclination Switch 2.3 Set communication rate command：77 05 00 0B 02 12 Identifier Command Data Frame Length Address Code Checksum (1byte) （1byte） （1byte） （1byte） （1byte） （1byte） 0x77 0X0B 0X05 Response command： Command Data Identifier Address Code Frame Length Checksum （1byte）...
- Page 10 DIS334 Voltage Single-Axis Inclination Switch 2.6 Query the zero type Command：77 04 00 0D 11 Frame Length Address Code Identifier Command Data Checksum （1byte） （1byte） （1byte） （1byte） （0byte） （1byte） 0x04 0x77 0x0D Command response： Identifier Data Frame Length Address Code Checksum Command （1byte）...
- Page 11 DIS334 Voltage Single-Axis Inclination Switch 2.9 Set alarm delay on time Command：77 07 00 23 00 05 00 2F Command Data Identifier Address Code Frame Length Checksum （1byte） (1byte) （1byte） （3byte） （1byte） （1byte） 0x77 0x07 0x23 DXXYY Response command： Command Data Identifier Address Code...
- Page 12 DIS334 Voltage Single-Axis Inclination Switch 2.12 Quer y alarm delay off time Command： 77 05 00 24 01 2A Identifier Data Frame Length Address Code Checksum Command (1byte) （1byte） （1byte） （1byte） （1byte） （1byte） 0x01：+X 0x77 0x05 0x24 0x03：-X Response command： Identifier Data Address Code...
-
Page 13: Ordering Information
DIS334 Voltage Single-Axis Inclination Switch Ordering Information Package condition Product number Way of communication RS232 DIS334-232 IP67 Package/Metal Connector DIS334-TTL IP67 Package/Metal Connector Executive standard ● Enterprise Quality System Standard: ISO9001:2008 Standard (Certificate No.:10114Q16846ROS) ● CE certification (certificate number: 3854210814) ●... - Page 14 DIS334 Voltage Single-Axis Inclination Switch Wuxi Bewis Sensing Technology LLC Address: Building 30, No. 58 Xiuxi Road, Binhu District, Wuxi City Hotline: 400-618-0510 Tel: +86 510 85737178-801 Email: sales@bwsensing.com Website: www.bwsensing.com...
