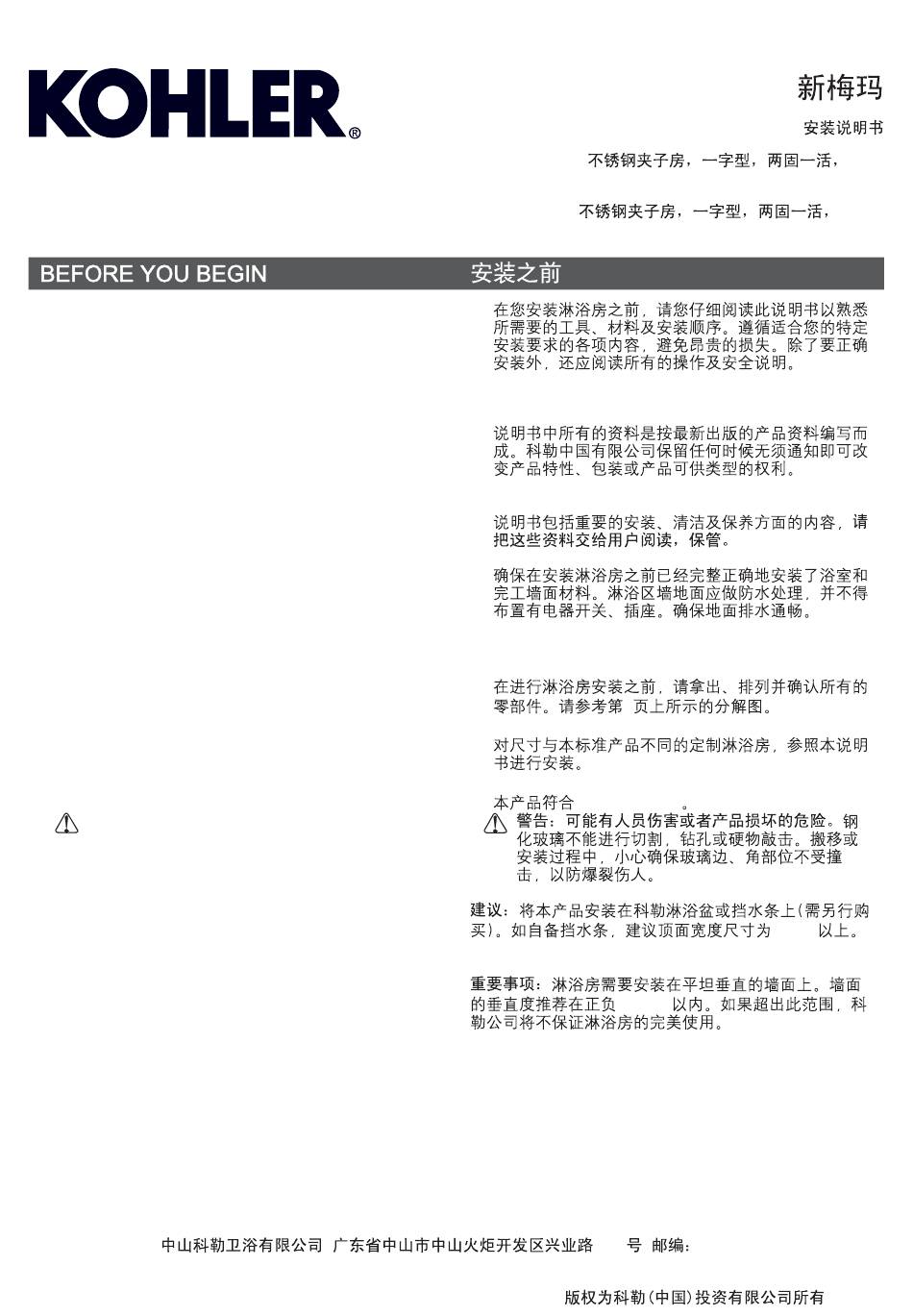

Before you install your shower door, please read
these instructions carefully to familiarize yourself
with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information is based on the latest product
information available at the time of publication.
Kohler China Ltd. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning,
and warranty information-
instructions for the consumer.
·
Make sure that the bath and the finished wall
material are completely and correctly installed prior
to installing your shower door. Prepare waterproof
layer to wall and floor of the showering area. It is not
allowed for any presence of electric switches and
sockets. Make sure the floor drain runs smoothly.
·
Before starting the door installation, lay out and
identify all the parts. Use the exploded view
illustrated on page 2 for reference.
·
For the installation method of customized shower
with different dimensions, please refer to this
instructions.
· The product complies with QB 2584-2007.
CAUTION: Risk of injury or product damage.
Tempered glass cannot be cut, drilled or
knocked by hard object. Make sure corner area
of the glass refraining from knocking so as to
cause personal injury due to broken glass.
ATTENTION:
Please install this door on Kohler
receptors or curbs (Not included). If the curb is not
Kohler-branded, please note its top width should fall
above 80mm.
IMPORTANT:
The shower door requires a flat vertical
finished wall. The squareness of the wall is
recommended no more than 3 mm/m. KOHLER
Company won't take responsibility of the installation
quality.
ZHONGSHAN KOHLER SHOWER CO., LTD.
DEVELOPMENT ZONE, ZHONGSHAN, GUANGDONG, CHINA
1269312-T01-B
please leave these
NEW MEMOIRS
·
·
·
·
·
·
·
QB 2584-2007
3mm/m
NO13-1, XINYE ROAD, ZHONGSHAN TORCH
13-1
©
Copyright Kohler China Investment Co., Ltd. 2016
-1-
©
INSTALLATION INSTRUCTIONS
SS, SCR, 1D2P SHP, 8mm
K-76560T-L-SHP
SS, SCR, 1D2P SHP,10mm
K-76575T-L-SHP
2
80mm
POST CODE: 528437
528437
8mm
10mm
2016
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kohler NEW MEMOIRS K-76560T-L-SHP
Summary of Contents for Kohler NEW MEMOIRS K-76560T-L-SHP
- Page 1 · · All information is based on the latest product information available at the time of publication. Kohler China Ltd. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. · ·...
- Page 2 ROUGHING-IN Unit: mm K-76560T 900-2100 1850-2000 K-76575T PARTS IDENTIFICATION PARTS IDENTIFICATION Side Seal Wall Side Seal Magnetic Seal Bottom Seal 180 Deg Hinge Assy 180 Deg End Cap Extrusion Bottom Clip Assy Wall Clip Assy Screw Hollow Wall Anchor ST3.5X35 4mm Allen Key 3mm Allen Key Handle Assy...
- Page 3 INSTALLATION Mark the wall 20mm in from the front edge of the tray on both sides. 20mm IMPORTANT Tray must be level in all planes or door will not install properly. IMPORTANT: Tray MUST be level along front edge. STEP Preparations: Install seals and hardware.
- Page 4 Install hinge onto the fixed panel. Pay attention to the Install door glass. hinge position and leave the door open. Fixed Glass STEP STEP Adjust door glass to be level. Fix bottom clip, bracket and handle. The door glass shall be level with each other. STEP 1269312-T01-B...
- Page 5 Apply silicone sealant to bottom of the fixed glass Fix seal, magnetic seal and bottom threshold. and both sides of the bottom threshold. Fix Bottom Seal STEP STEP Do not use the enclosure for at least 24 hours. 24hrs STEP 1269312-T01-B...
