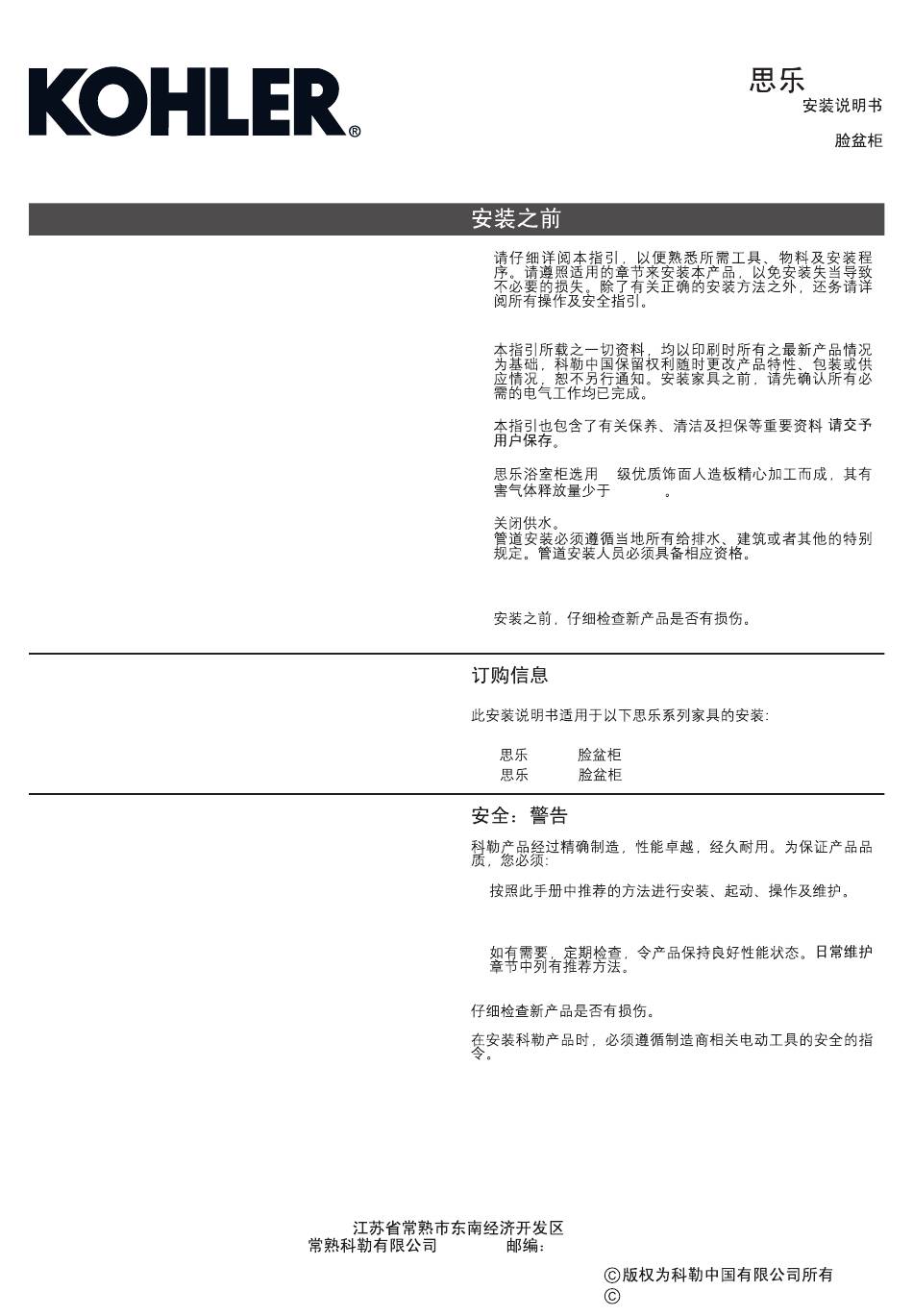

BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information-
consumer.
·
SLIM bathroom cabinet adopts E1 grade wood-based
panel of high quality, and with further processing, its
harmful emissions will be less than 1.5mg/L.
·
Turn off the water supply.
·
The pluming installation must comply with Water Supply
Regulations/Bye-laws, Building Regulations or any
particular regulations and practices, specified by the local
water company or water undertakers. The installation
should be carried out by a plumber.
·
Before installation carefully inspect the new fixture for any
signs of damage.
ORDERING INFORMATION
This installation covers the following products in the SLIM
range:
SLIM 790mm Washbasin Cabinet......................K-15227T
SLIM 990mm Washbasin Cabinet......................K-15228T
SAFETY: WARNINGS
Kohler products are precision-engineered and should give
continued superior and safe performance, provided:
1. They are installed, commissioned, operated and
maintained in accordance with the recommendations given
in this Manual.
2. Periodic attention is given, as necessary, to maintain the
product in good functional order. Recommended
guidelines are given in the
Carefully inspect the new fixture for any signs of damage.
When installing Kohler Products, manufacturers guidelines for
power tool safety should be followed.
1144955-T01-A
please leave instructions for the
MAINTENANCE
section.
·
·
·
·
E1
1.5mg/L
·
·
·
790mm
990mm
1.
2.
215500
-1-
Installation INSTRUCTIONS
WASHBASIN CABINETS
K-15227T/K-15228T
.............................................K-15227T
.............................................K-15228T
Copyright Kohler China Ltd., 2010
SLIM
-
, 2010
Advertisement
Table of Contents
Related Manuals for Kohler SLIM K-15227T
Summary of Contents for Kohler SLIM K-15227T
- Page 1 · · All information in these instructions is based upon the latest product information available at the time of publication. Kohler China. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. ·...
- Page 2 ROUGHING-IN UNIT : mm K-15227T K-15228T 790mm Washbasin Cabinet 990mm Washbasin Cabinet 790mm 990mm Fig.1 INSTALLATION A. Install Washbasin Cabinet Install the services. Hot (H) and Cold (C) inlets must be connected to the correct inlet pipes. Install the drain in accordance with the manufacturer s instructions.
- Page 3 1. Mark the position of hanged bracket according to dimensions as illustrated, and loosen the suspension hook of washbasin cabinet. Caution! Avoid the cables and pipes inner set when drilling in the wall. Note: Different types of bolts are required for different decoration boards.
- Page 4 4. Hang the washbasin cabinet on the wall, and position the suspension on the hanged bracket. 5. Set the washbasin cabinet onto the wall bracket. Be sure the cabinet adjusted level and the back board of cabinet appressed to the wall by adjusting the screws of wall clips. See Fig.4.
- Page 5 6. Please do not sit, lean or step on the basin cabinet. 7. If any fixtures caused by abnormal reasons, Kohler China can supply paid replacement for service parts caused by abnormal reasons as shown in Service Parts Page in the limited duration of warranty.
