BEFORE YOU BEGIN
BEFORE YOU BEGIN
!
Congratulation on your purchase of this high
quality Bathroom Accessory. Before proceeding
with the installation, please carefully read this
Installation instruction in order to ensure proper
care and assembly of this accessory.
!
Please keep this installation instruction for
future reference.
Prior to drilling into walls, check there
are no hidden electrical wires, cables or
water supply pipes with the aid of ar,
electronic detector. If you use power
tools do not forget:
1. Wear eye protection.
2. Unplug equipment after use.

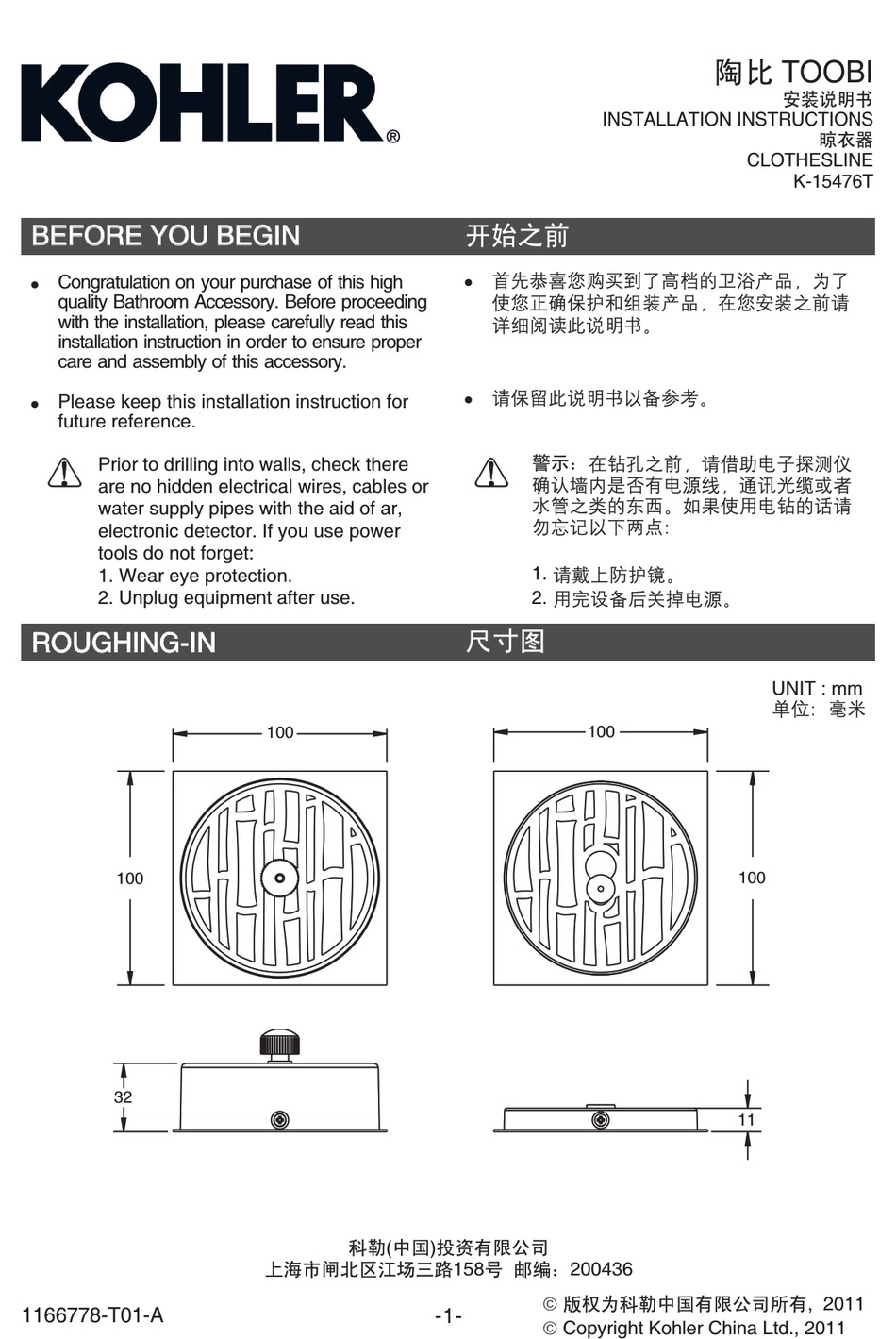

ROUGHING-IN
100
32
1166778-T01-A
100
(
)
-1-
INSTALLATION INSTRUCTIONS
!
!
1.
2.
100
158
200436
ã
ã
Copyright Kohler China Ltd., 2011
TOOBI
CLOTHESLINE
K-15476T
UNIT : mm
100
11
, 2011
Advertisement
Table of Contents
Related Manuals for Kohler TOOBI K-15476T
Summary of Contents for Kohler TOOBI K-15476T
- Page 1 If you use power tools do not forget: 1. Wear eye protection. 2. Unplug equipment after use. ROUGHING-IN UNIT : mm 200436 ã , 2011 1166778-T01-A ã Copyright Kohler China Ltd., 2011...
- Page 2 INSTALLATION 1. Put the panel at the desired installation place and adjust it to level. Note: The two panels must be put at the same height. 2. Mark the two installation holes on the plates with a pencil. 3. Drill two holes at the locations marked with a 6mm drill and the insert the plugs.
