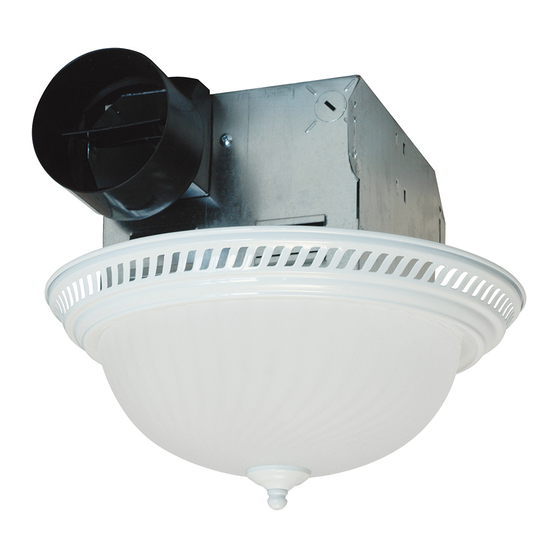

Air King Exhaust Fans DRLC Specifications

• Grill
DRLC702 - Nickel Finish: 13
DRLC703 - White Finish: 13
DRLC709 - Bright Brass Finish: 13
• Light Lens
Ribbed frosted glass light lens.
• Light Housing
Heavy gauge cold rolled steel c/w baked enamel finish; locks
in place on the grill via two integral tabs.
• Blower Wheel
One piece polymeric wheel, 4
• Motor
Single coil plug-in, two pole motor, life time lubrication, thermally
protected. Rated 120 volts, 60 hz., 1.6 amps.
• Fan Housing
23 ga. Galvanized metal housing, dimensions 8" x 6
double metal thickness mounting tabs.

• Duct Collar

Plastic collar for 4" duct connection, comes complete with built
in non-metallic back draft damper for quiet operation.
• Lighting
Single 100 watt maximum light capacity
Static Pressure (inches of w.g.)
CFM
RPM
WATTS
Air-King exhaust fans are tested by the Air Movement and Control Association (AMCA) in accordance with HVI test standard 916, (Air Flow Test Standard) and HVI test standard
915 (Procedure For Loudness Rating Of Residential Fan Products). The Performance results are certified and verified by the Home Ventilating Institute (HVI).
PROJECT
LOCATION
CONTRACTOR
FAN MODEL
CFM
NUMBER NUMBER
C US
Specifications subject to change without notice.
70 CFM/4.0 SONES @ 0.10" WG. -HVI CERTIFIED
120 Volts, 1.6 amps, 60 hz.
1 / 2 " diameter.
1 / 2 " diameter.
1 / 2 " diameter.
1 / 2 " diameter, 1" wide, with 10 fins.
7 / 8
(bulb not included).
HVI PERFORMANCE
0 0.05
77 74
2300 2400
65 66
IN
RPM WATTS
W.C.
Acceptable for use over tub or shower when
installed in a GFCI protected branch circuit.

• Unit Mounting

Rated Type IC for ceilings insulated to R-40. Designed to mount
in ceilings with at least 6" of clearance. The unit will mounts
directly to the joist with a rough in opening of 8
" x 5 1 / 2 ",
housing will mount through drywall thickness up to
• Ventilating Area
For bathrooms up to 70 sq. ft. for other rooms up to 85 sq. ft.
• Single Pack Shipping Info
Box Dim: 11 1 / 2
DRLC702 - UPC: 0-8316227421-2
DRLC703 - UPC: 0-8316227411-3
DRLC709 - UPC: 0-8316227431-1
0.1 0.15 0.2
71 68 65
2450 2500 2550
65 64 64
ARCHITECT
ENGINEER
SUBMITTED BY
AMPS SONES QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (610) 692-7400 • 877-304-3785
Fax: (610) 696-8048
SPECIFICATIONS
DRLC
EXHAUST FANS
CUL/HVI
" x 13 1 / 4 " x 9 1 / 2 "
0.25 0.3 0.35
61 57
2600 2650 2710
63 61
DATE
OPTIONAL EQUIPMENT
& REMARKS
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
3 / 16 " x 7 1 / 16 ". The
3 / 4 ".
0.4
52 45
2840
60 58
New 4-05
