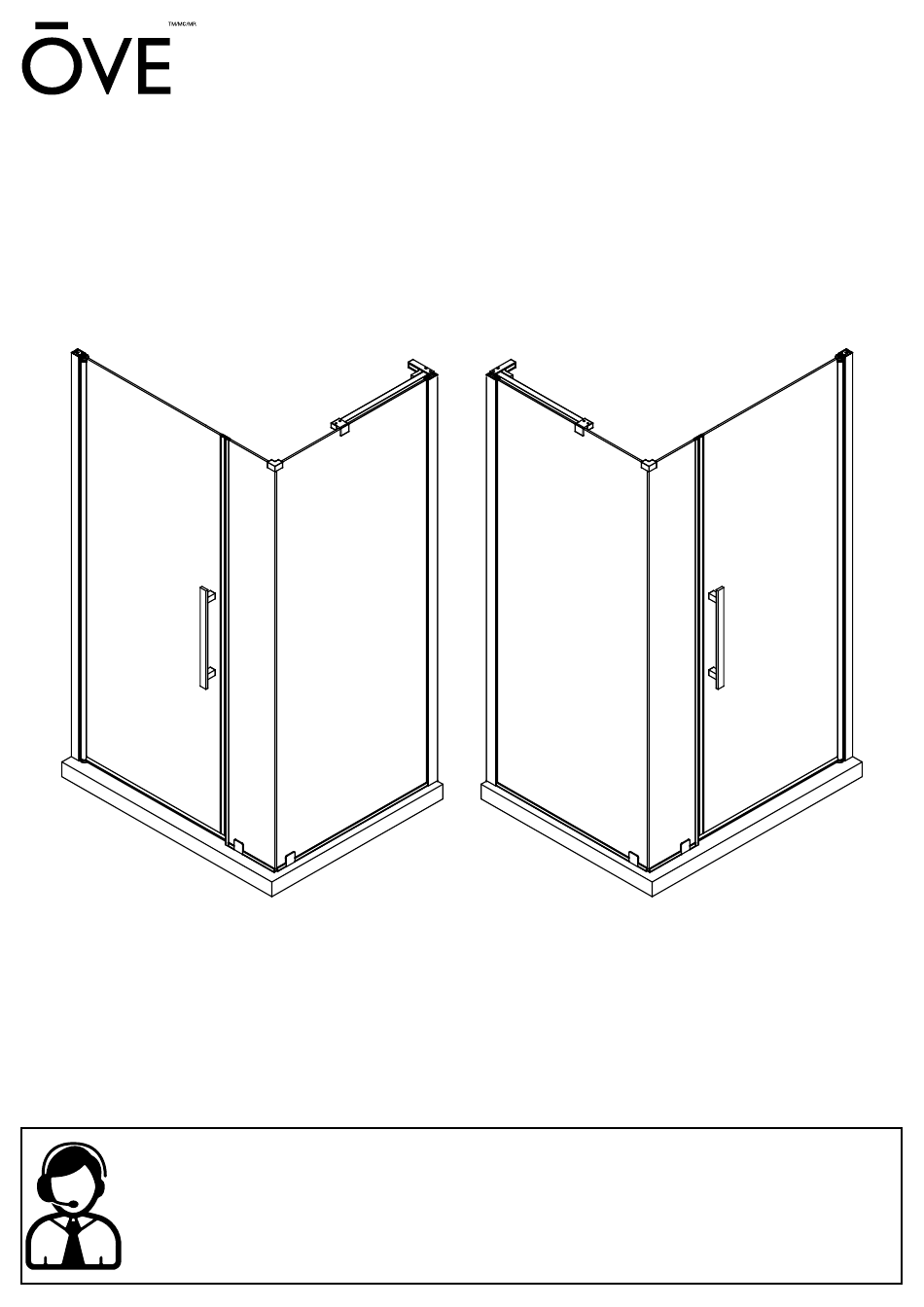

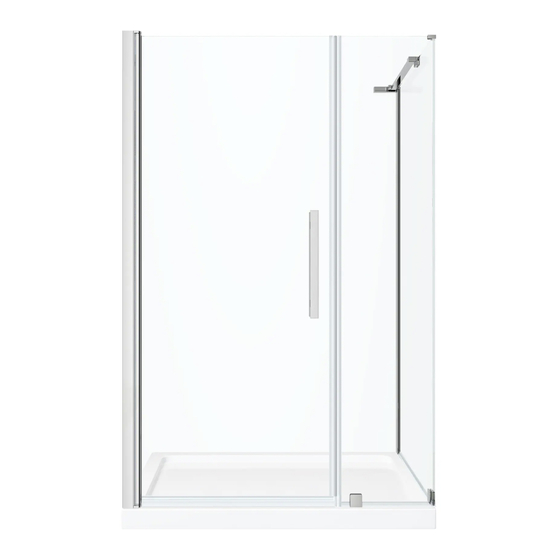

PASADENA CORNER SHOWER
INSTALLATION MANUAL | MANUEL D'INSTALLATION | MANUAL DE INSTALACIÓN
DOOR PANEL, INLINE PANEL & SIDE PANEL
PANNEAU DE PORTE, PANNEAU INLINE & PANNEAU LATÉRAL
PANEL DE PUERTA, PANEL INLINE & PANEL LATERAL
Questions, problems, need help?
Call our customer service department at
1-866-839-2888, 8 a.m. - 5 p.m., EST, Monday - Friday
Questions, problèmes ou besoin d'aide?
Contactez notre service à la clientèle au
1-866-839-2888, du lundi au vendredi de 8 h à 17 h HNE.
Preguntas, problemas o necesita ayuda?
Llame a nuestro departamento de servicio al cliente al
1-866-839-2888, 8 am. – 5 pm., HDE, Lunes a Viernes.
P. 1
2022-04-26
www.ovedecors.com | customerservice@ovedecors.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the PASADENA PA06521J0 and is the answer not in the manual?

Questions and answers

Related Manuals for OVE PASADENA PA06521J0

Summary of Contents for OVE PASADENA PA06521J0

  • Page 1 PASADENA CORNER SHOWER INSTALLATION MANUAL | MANUEL D’INSTALLATION | MANUAL DE INSTALACIÓN DOOR PANEL, INLINE PANEL & SIDE PANEL PANNEAU DE PORTE, PANNEAU INLINE & PANNEAU LATÉRAL PANEL DE PUERTA, PANEL INLINE & PANEL LATERAL Questions, problems, need help? Call our customer service department at 1-866-839-2888, 8 a.m.
