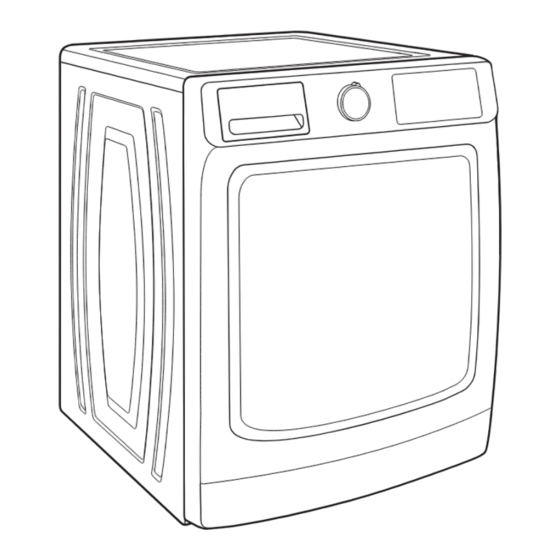

使用保養指南 適用型號: 8TMHW6630HW Use & Care Guide Applicable model: 8TMHW6630HW 滾筒洗衣機 FRONT-LOADING AUTOMATIC WASHER 請至官網參閱更多產品相關訊息: www.maytag.com.tw If you have any problems or questions, visit us at www.maytag.com.tw 請僅使用 HE 高效能洗衣精。 Designed to use only HE High Efficiency detergents. W11316320A...
Product color (end digit) W=White Weight 100 kg External dimensions (H x W x D) 982 x 686 x 837 (mm) NOTE: Actual specifications are as shown on the machine nameplate. For information on RoHs, please visit the official website: www.maytag.com.tw.
The large drawer provides washer. Accessories designed for your appliance: convenient storage. Customize your new washer and dryer with the following genuine Maytag accessories. For more information on options and ordering, call 0800-258-558 or visit us at: www.maytag.com.tw.
CONTROL PANEL AND FEATURES Not all features and cycles are available on all models. NOTES: ■ The control panel features a sensitive surface that responds to a light touch of your finger. To ensure your selections are registered, touch the control panel with your fingertip, not your fingernail. When selecting a setting or option, simply touch its name. ■...
Page 31
CYCLE STATUS LIGHTS Fresh Hold/Fresh Spin NOTE: Not all Cycle Status Lights are available on all models. The Fresh Hold/Fresh Spin option will periodically tumble the load after the end of the cycle for up to 24 hours The Cycle Status Lights show the progress of a cycle. while the integrated fan circulates air through the washer At each stage of the process, you may notice sounds to reduce humidity.
DISPENSERS Single Load Dispenser Drawer (on some Liquid fabric softener compartment models) Automatically dilutes and dispenses liquid fabric softener at The dispenser drawer gives you the convenience the optimum time in the cycle. of adding HE detergent, liquid chlorine bleach, and liquid fabric softener to the wash load at the ■...
Page 33
Items to wash Cycle: Wash Spin Soil Options/ Cycle Details: using default Temperature* Speed*** Level: Modifiers: cycle settings: Light Large items Bulky Cold Steam Use this cycle to wash large items such as such as sleeping Items Cool Slow Medium Extra Rinse jackets and small Warm...
Items to wash Cycle: Wash Spin Soil Options/ Cycle Details: using default Temperature* Speed*** Level: Modifiers: cycle settings: Fast Light This short wash cycle 2–4 lightly Overnight Cold Steam has an extra-high- soiled synthetic Wash & Cool Medium Extra Rinse speed spin followed by Warm Fresh Hold/Fresh...
USING YOUR WASHER First wash cycle without laundry ■ Turn knits inside out to prevent pilling. Separate lint-takers from lint-givers. Synthetics, knits, and corduroy fabrics will pick up Before washing clothes for the first time, add liquid or powdered lint from towels, rugs, and chenille fabrics. HE detergent to the detergent dispenser.
Page 36
Load laundry into washer Add liquid fabric softener to dispenser (if desired) Single Load Dispenser Drawer Place a load of sorted items loosely in the washer. Items need to move freely for best cleaning and to reduce wrinkling and Pour a measured amount of liquid fabric softener into tangling.
Page 37
Touch POWER to turn on washer Select any additional options* Slowly close the Dispense drawer. Make sure the drawer is closed completely, then touch POWER to turn on the washer or go to Step 8. Select CYCLE* To add an option to the cycle, touch its name – Fresh Hold, Steam, Extra Rinse, Cycle Signal, or Control Lock.
Page 38
Touch and hold START to begin Remove garments promptly wash cycle after cycle is finished Touch and hold START to start the wash cycle. To pause a cycle in progress, touch START once, then touch and hold again to continue the cycle. To cancel a cycle, touch Promptly remove garments after cycle POWER.
WASHER MAINTENANCE WATER INLET HOSES WASHER CARE (cont.) Replace inlet hoses after 5 years of use to reduce the risk 3. If stained areas or soil buildup is found, wipe down of hose failure. Periodically inspect and replace inlet hoses these areas of the seal using either of the following two if bulges, kinks, cuts, wear, or leaks are found.
Page 40
WASHER CARE (cont.) WASHER CARE (cont.) Begin Procedure Description of Clean Washer with affresh Cycle Operation: 1. The Clean Washer with affresh cycle will determine whether 1. Clean Washer with affresh Cycle Procedure clothing or other items are in the washer. (Recommended for Best Performance): 2.
Page 41
REMOVING THE DISPENSER REMOVING THE DISPENSER (cont.) Single Load Dispenser Drawer Single Load Dispenser Drawer (cont.) Removing the Dispenser To replace: 1. Slide cover panel back onto posts on dispenser. To remove: 2. Align edges of dispenser 1. Pull dispenser drawer out until it stops. with guides in washer, 2.
Page 42
WINTER STORAGE CARE IMPORTANT: To avoid damage, install and store washer where it will not freeze. Because some water may stay in hoses, freezing can damage washer. If storing or moving during freezing weather, winterize your washer. To winterize washer: 1.
TROUBLESHOOTING First try the solutions suggested here or visit our website at www.maytag.com.tw. If you experience Possible Causes Solution Error Code Appears in Display (for 2- and 3-digit displays) Once any possible issues are corrected, touch POWER once to clear the code. Reselect and restart the cycle.
Page 44
TROUBLESHOOTING First try the solutions suggested here or visit our website at www.maytag.com.tw. If you experience Possible Causes Solution Error Code Appears in Display (for 2- and 3-digit displays) (cont.) F# E# or F## E## System error code. Touch POWER once to clear the code. Then touch POWER code again to restart washer.
Page 45
TROUBLESHOOTING First try the solutions suggested here or visit our website at www.maytag.com.tw. If you experience Possible Causes Solution Vibration or Off-Balance Vibration, rocking, Feet may not be in contact with the Front and rear feet must be in firm contact with floor and washer must be level to operate properly.
Page 46
TROUBLESHOOTING First try the solutions suggested here or visit our website at www.maytag.com.tw. If you experience Possible Causes Solution Water Leaks (cont.) Water or suds leaking from Not using HE detergent or using too Only use HE detergent. Suds from regular detergents door or rear of cabinet much HE detergent.
Page 47
TROUBLESHOOTING First try the solutions suggested here or visit our website at www.maytag.com.tw. If you experience Possible Causes Solution Washer not performing as expected (cont.) Washer won’t run or fill; Normal washer operation. Door must be completely closed and latched for washer washer stops working to run.
Page 48
TROUBLESHOOTING First try the solutions suggested here or visit our website at www.maytag.com.tw. If you experience Possible Causes Solution Washer not performing as expected (cont.) Washer not draining/ Using cycles with a slower spin speed. Cycles with slower spin speeds remove less water than spinning;...
Page 49
TROUBLESHOOTING First try the solutions suggested here or visit our website at www.maytag.com.tw. If you experience Possible Causes Solution Washer not performing as expected (cont.) Load not rinsed (cont.) Washer not loaded as Avoid tightly packing the washer. The washer will not rinse well recommended.
Page 50
TROUBLESHOOTING First try the solutions suggested here or visit our website at www.maytag.com.tw. If you experience Possible Causes Solution Washer not performing as expected (cont.) Not cleaning or Not using correct cycle for fabric Use a higher soil level setting and warmer wash temperature removing stains type.
Page 51
TROUBLESHOOTING First try the solutions suggested here or visit our website at www.maytag.com.tw. If you experience Possible Causes Solution Washer not performing as expected (cont.) Gray whites, dingy colors Load not sorted properly. The transfer of dye can occur when mixing whites and colors in a load.
Before calling, please know the purchase date and the to make each new Maytag product. complete model and serial number of the washer. To locate original factory-specified parts in your area: This information can help us to better respond to your request.
