UTENSILI NECESSARI - NECESSARY TOOLS - OUTILS NÉCESSAIRES ERFORDERLICHE WERKZEUGE - HERRAMIENTAS NECESARIAS - FERRAMENTAS NECESSARIES DATI TECNICI - TECHINCAL DETAILS - DONNÉES TECHNIQUES TECHNISCHE DATEN - DATOS TÉCNICOS - DADOS TÉCNICOS Pressione minima Minimum pressure Pression minimum 1 BAR Pressione massima Minimum pressure Pression maximum...
Page 3
DATI TECNICI - TECHINCAL DETAILS - DONNÉES TECHNIQUES TECHNISCHE DATEN - DATOS TÉCNICOS - DADOS TÉCNICOS Se la pressione dell’acqua è superiore a 5 bar, è preferibile installare un riduttore di pressione a monte dell’alimentazione per evitare vibrazioni e rendere regolare la regolazione della temperatura. If water pressure is above 5 bar, it is advisable to install a flow restrictor upstream of the water supply to avoid vibrations and regulate temperature.
Page 4

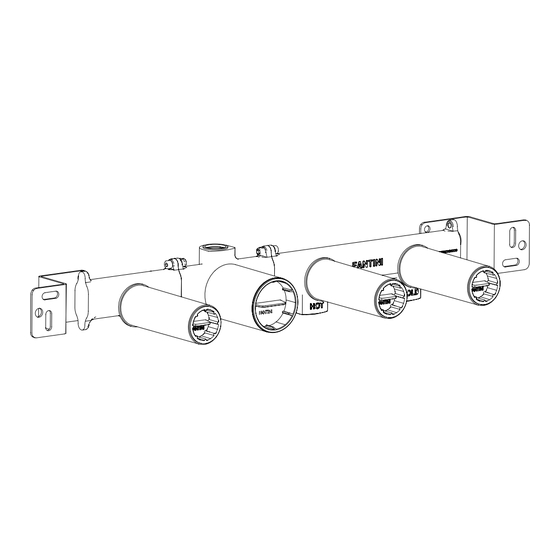

PREINSTALLAZIONE - PRE-INSTALLATION - PRÉ-INSTALLATION VORINSTALLATION - PREINSTALCIÓN - PRÉ-INSTALAÇÃO N017A G 1/2" ↓ ↑ ↑ G 1/2" G 1/2" G 1/2" Questi miscelatori possono essere utilizzati con accumulatori di acqua calda a pressione o con scaldabagni istantanei. These mixers can be used with high-pressure hot water accumulators or with instant water heaters. Ces mitigeurs peuvent être utilisés avec des accumulateurs d’...
Page 5
N019A ↓ ↓ ↑ ↑ G 1/2" G 1/2" G 1/2" G 1/2" Questi miscelatori possono essere utilizzati con accumulatori di acqua calda a pressione o con scaldabagni istantanei. These mixers can be used with high-pressure hot water accumulators or with instant water heaters. Ces mitigeurs peuvent être utilisés avec des accumulateurs d’...
Page 11
INSTALLAZIONE - INSTALLATION - INSTALLATION INSTALLATION - INSTALACIÓN - INSTALAÇÃO ø 8mm Nota bene, vite e tassello NON sono forniti, vanno scelti in funzione del supporto. Please note, screw and dowel are NOT supplied, they must be chosen according to the support. Nota bene, les vis et les chevilles NE sont PAS fournies, elles doivent être choisies en fonction du support.
Page 15
INSTALLAZIONE - INSTALLATION - INSTALLATION INSTALLATION - INSTALACIÓN - INSTALAÇÃO COLLAUDO INGRESSI INLET TEST MIN 5 Bar ESSAI ENTRÉES Max 10 Bar PRÜFUNG DER EINLÄSSE PRUEBA DE LAS ENTRADAS ENSAIO DAS ENTRADAS...
Page 16
INSTALLAZIONE - INSTALLATION - INSTALLATION INSTALLATION - INSTALACIÓN - INSTALAÇÃO •Mettere in pressione l’impianto per verificarne la tenuta e la corretta installazione •Put the system under pressure in order to verify the hold and correct installation •L’installation sous pression pour en vérifier l’ è tanchéité et le bon fonctionnement •Installation unter Druck stellen um das Fassungsvermögen und den korrekten Einbau zu überprüfen •Presurizar la planta para comprobar su retenciò...
Page 18
INSTALLAZIONE - INSTALLATION - INSTALLATION INSTALLATION - INSTALACIÓN - INSTALAÇÃO as medidas para o corte dos azulejos e inter-eixo para a pré-perfuração do revestimento. 21 - N017A Ø42mm Ø49mm Ø42mm 21 - N019A Ø42mm Ø49mm Ø42mm...
