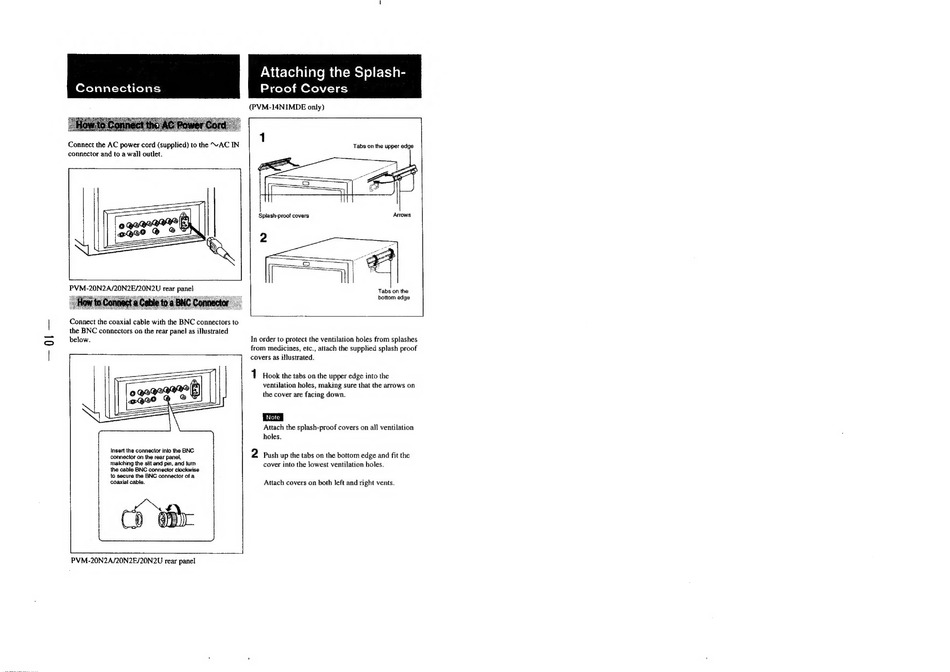

Attaching the Splash-
f@relala=tonitey alos Proof Covers
(PVM-14NIMDE only)
Connect the AC power cord (supplied) to the ""AC IN
Tabs on the upper edge
connector and to a wall outlet.
PVM-20N2A/20N2E/20N2U rear panel
Tabs on the
bottom edge
Connect the coaxial cable with the BNC connectors to
the BNC connectors on the rear panel as illustrated
below. In order to protect the ventilation holes from splashes
from medicines, etc., attach the supplied splash proof
covers as illustrated,
1 Hook the tabs on the upper edge into the
ventilation holes, making sure that the arrows on
the cover are facing down.
Attach the splash-proof covers on all ventilation
holes.
Insert the connector into the BNC 2
connector on the rear panel,
matching the slit and pin, and turn
the cable BNC connector clockwise
to secure the BNC connector of a
coaxial cable. Attach covers on both left and right vents.
Push up the tabs on the bottom edge and fit the
cover into the jowest ventilation holes.
ah
PVM-20N2A/20N2E/20N2U rear panel
