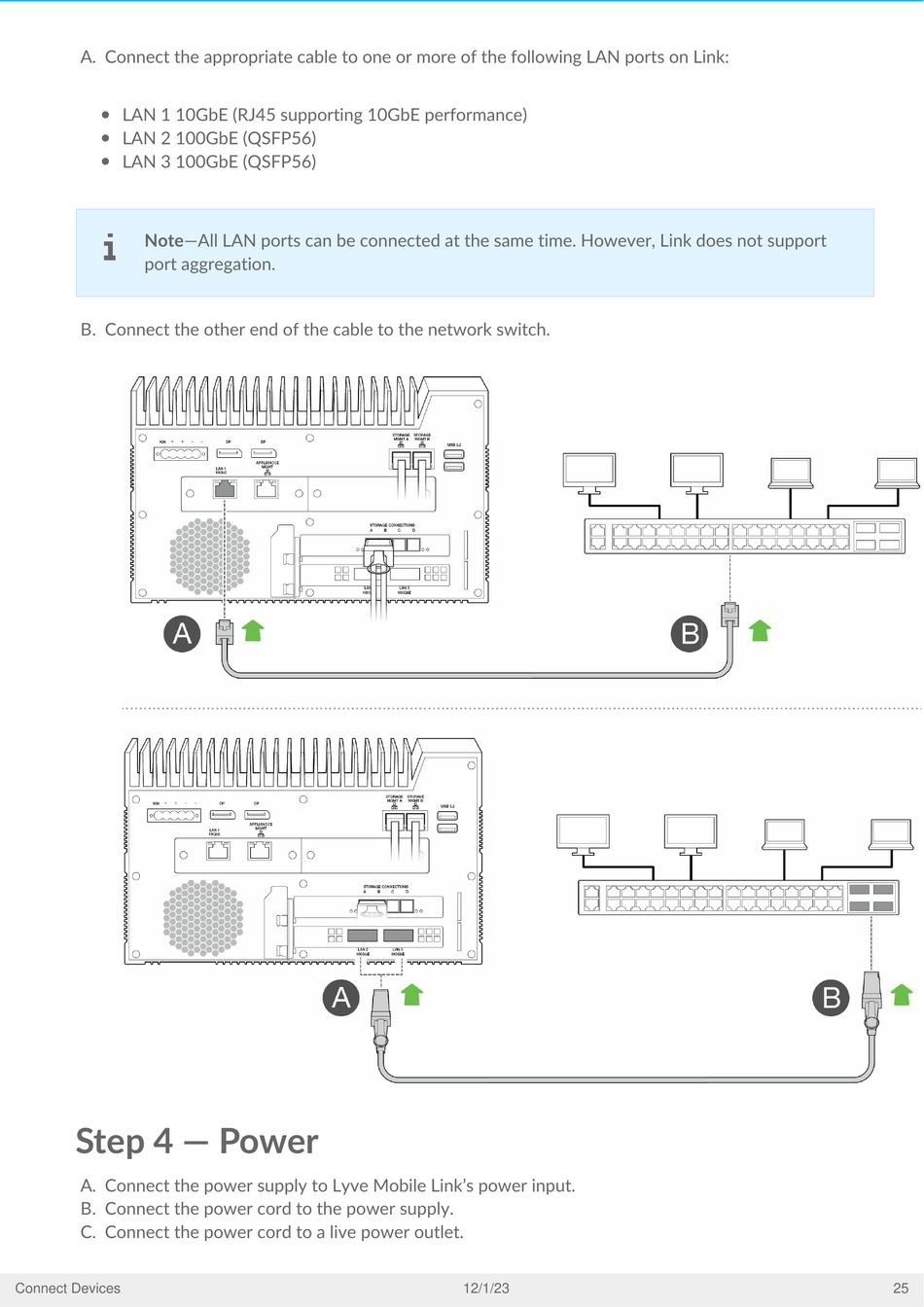

A. Connect the appropriate cable to one or more of the following LAN ports on Link:
LAN 1 10GbE (RJ45 supporting 10GbE performance)
LAN 2 100GbE (QSFP56)
LAN 3 100GbE (QSFP56)
Note—All LAN ports can be connected at the same time. However, Link does not support
port aggregation.
B. Connect the other end of the cable to the network switch.
Step 4 — Power
A. Connect the power supply to Lyve Mobile Link's power input.
B. Connect the power cord to the power supply.
C. Connect the power cord to a live power outlet.
Connect Devices
12/1/23
25
