Step 2 — Management path
Important—Only use a direct Ethernet connection for Storage Management. Do not place an

Ethernet switch between Link's Storage Management ports and the Ethernet ports on PCIe
Adapter / Rackmount Receiver.

PCIe Adapter

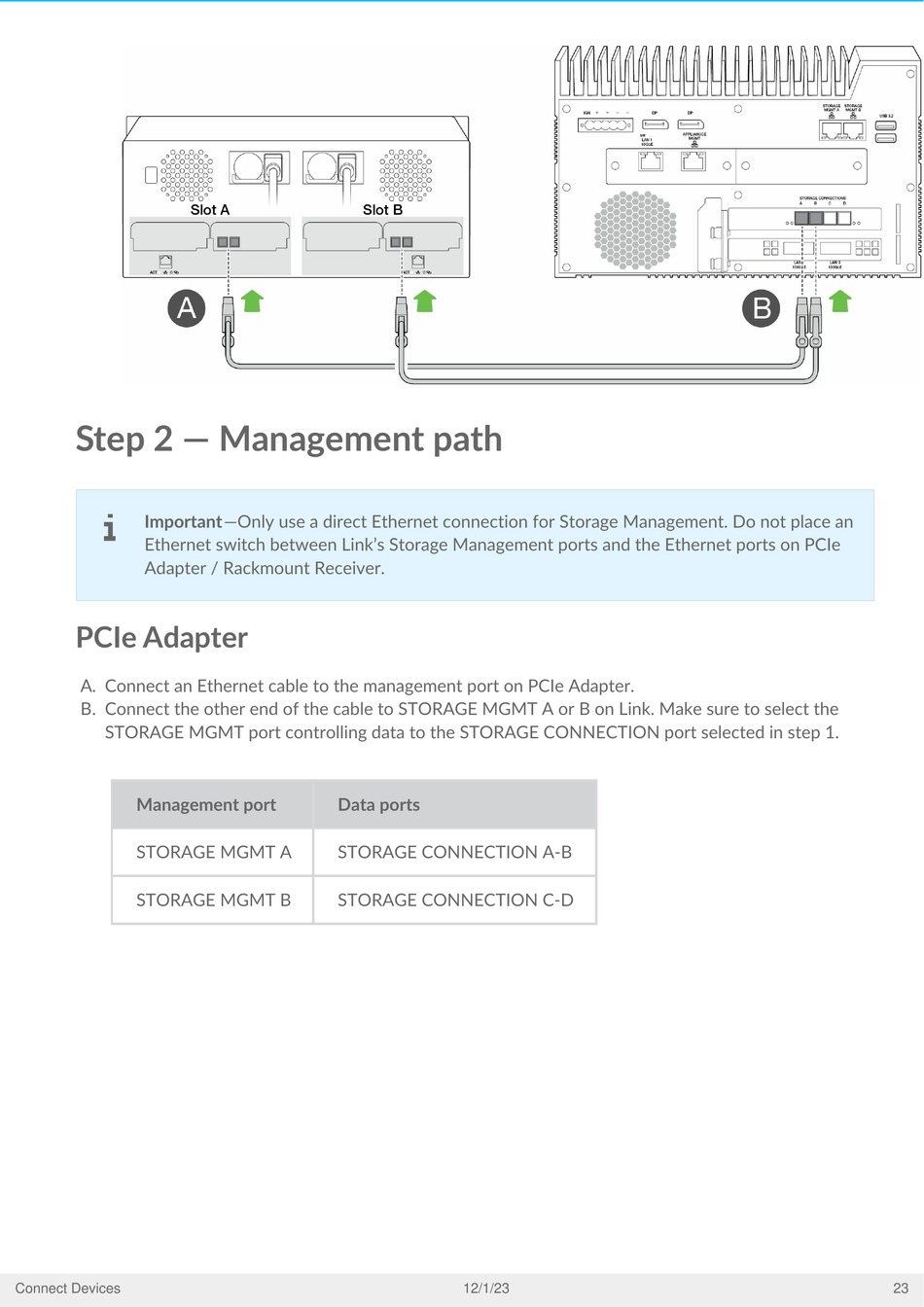

A. Connect an Ethernet cable to the management port on PCIe Adapter.
B. Connect the other end of the cable to STORAGE MGMT A or B on Link. Make sure to select the
STORAGE MGMT port controlling data to the STORAGE CONNECTION port selected in step 1.
Management port
STORAGE MGMT A
STORAGE MGMT B
Connect Devices
Data ports
STORAGE CONNECTION A-B
STORAGE CONNECTION C-D
