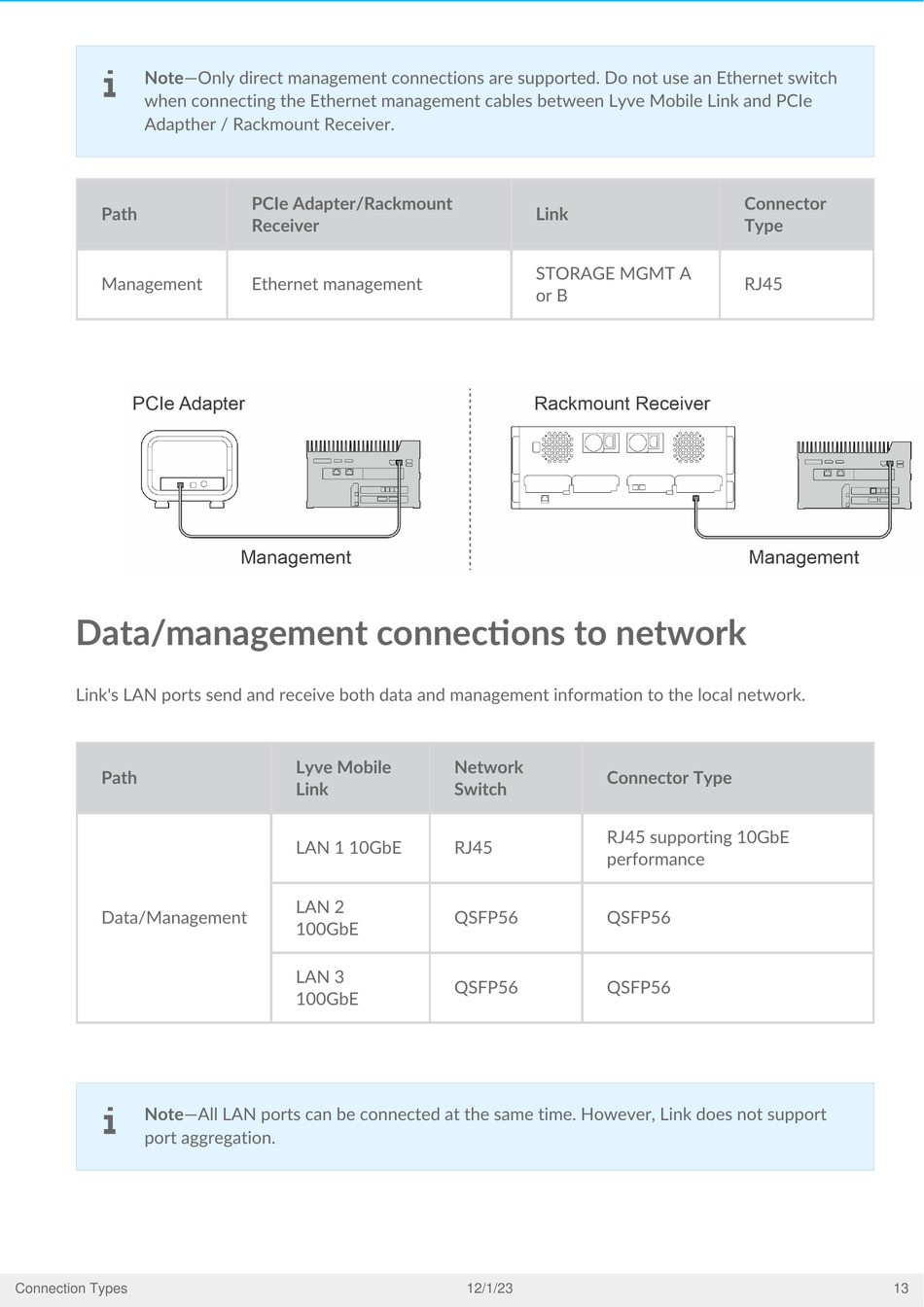

Data/Management Connections To Network - Seagate Lyve Mobile Link User Manual

Note—Only direct management connections are supported. Do not use an Ethernet switch

when connecting the Ethernet management cables between Lyve Mobile Link and PCIe
Adapther / Rackmount Receiver.
Path
Management
Data/management connec ons to network
Link's LAN ports send and receive both data and management information to the local network.
Path
Data/Management
Note—All LAN ports can be connected at the same time. However, Link does not support

port aggregation.
Connection Types
PCIe Adapter/Rackmount
Receiver
Ethernet management
Lyve Mobile
Link
LAN 1 10GbE
LAN 2
100GbE
LAN 3
100GbE
Link
STORAGE MGMT A
or B
Network
Connector Type
Switch
RJ45 supporting 10GbE
RJ45
performance
QSFP56 QSFP56
QSFP56 QSFP56
