VANITY SPECIFICATIONS
VANITY COMPONENTS

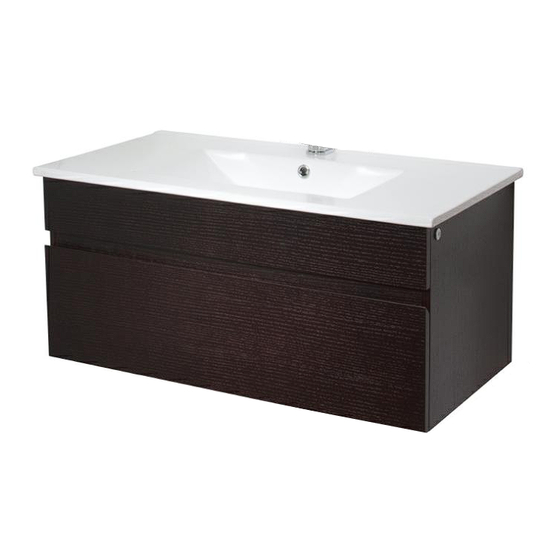

Model VG09008K1
MODEL VG09008K1
FEATURES
PACKING LIST
Vanity Assembly
Sink
For warranty purposes contact our toll free number:
TOLL FREE: (866) 591 - 7792
E-Mail: techmail@vigoindustries.com
www.vigoindustries.com
MODEL #
VANITY
WIDTH
VG09008K1
35 3/4"
35 3/4"
VANITY
VANITY
HEIGHT
DEPTH
16 3/8"
18 1/8"
18 1/8"
FLOOR
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VIGO VG09008K1
Summary of Contents for VIGO VG09008K1
- Page 1 VANITY SPECIFICATIONS VANITY COMPONENTS Model VG09008K1 MODEL VG09008K1 FEATURES PACKING LIST Vanity Assembly Sink DIMENSIONS MODEL # VANITY VANITY VANITY WIDTH HEIGHT DEPTH VG09008K1 35 3/4" 16 3/8" 18 1/8" For warranty purposes contact our toll free number: TOLL FREE: (866) 591 - 7792 E-Mail: techmail@vigoindustries.com...
- Page 2 DIMENSIONS 35 3/4" 34 3/4" FRONT VIEW 18 1/8" 17 3/4" 32 1/8" to center of clip +/- 1/8" FLOOR BACK VIEW SIDE VIEW MODEL VG09008K1 THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 1/8"...
- Page 3 FLOOR BACK VIEW NOTE: Vigo reserves the right to change or alter their products or warranty. Vigo recommends using the physical attributes and dimensions of the actual product and not the installation instructions when preparing the site for your roughing-in.
- Page 4 NOTICE: Siliconized acrylic caulk must be used to secure the lavatory to the vanity. Do not use 100% silicone sealant, which will damage the finish of the vanity. Observe all local plumbing and building codes. Two people should install this product. Vigo Industries reserves the right to make revisions in the design of products without notice, as specified in the Price List.
- Page 5 5. Install the drain assembly. Connect tailpiece to the drain. CARE AND MAINTENANCE 6. Connect Trap to drain assembly. Vigo recommends installing the Vigo brand To ensure that your installation project goes smoothly, please review these corresponding sink and pop up. Figure #6 depicts the complete assembly of the instructions before proceeding.
- Page 6 When installing your faucet it is highly recommended to remove the top drawer. This will allow you to have access to the hollow pin and supply lines of the faucet in order for you to complete your installation. Vigo brand vanities have two typical styles for the drawer assembly. Vigo offers multiple methods for removal of the drawers.
- Page 7 For commercial uses, additional limitations apply. VIGO warrants the Product to be free from defects in workmanship and materials under normal use and service for a period of five (5) years from the initial date of purchase by the owner or end-user, contractor, or builder, from VIGO or an authorized VIGO dealer.
