Euroset 5020 Quick Manual

euroset 5020 / IM Nord / A30350-M209-R201-1-SM19 / 5020.fm / 06.11.2008

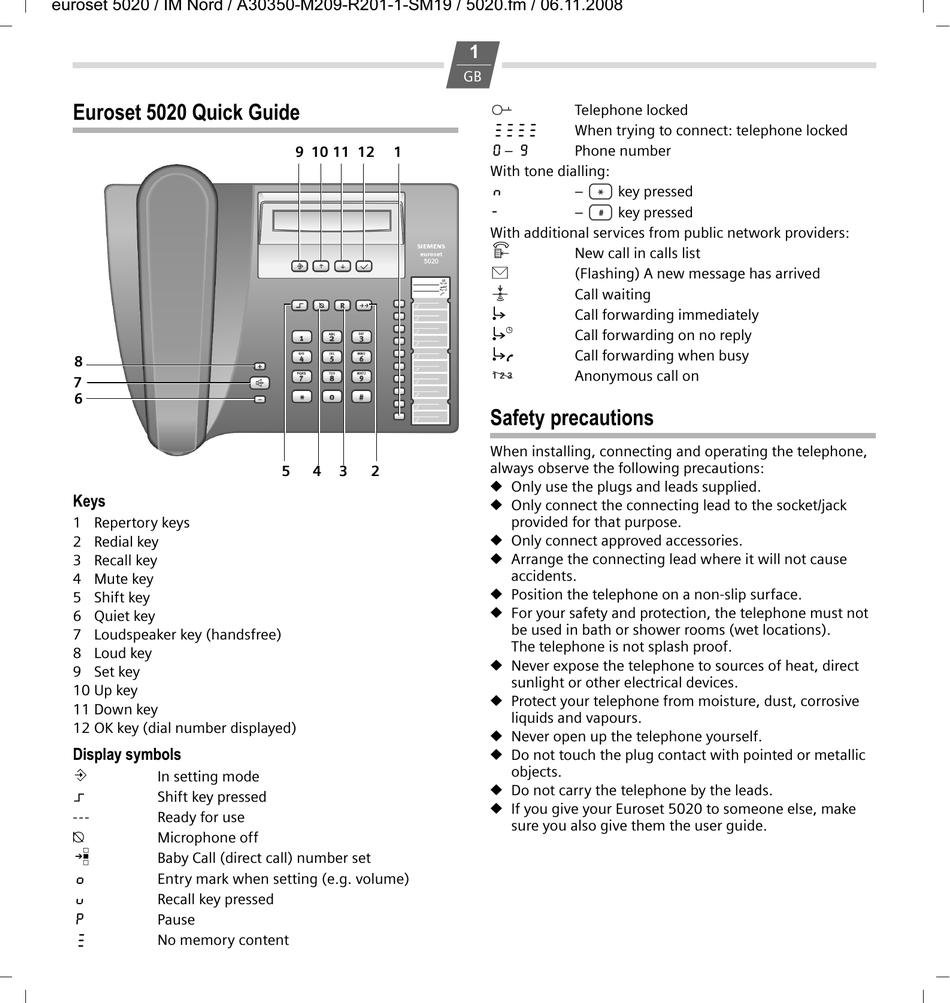

Euroset 5020 Quick Guide
8
7
6
Keys
1 Repertory keys
2 Redial key
3 Recall key
4 Mute key
5 Shift key
6 Quiet key
7 Loudspeaker key (handsfree)
8 Loud key
9 Set key
10 Up key
11 Down key
12 OK key (dial number displayed)
Display symbols
P
In setting mode
Shift key pressed
‡
--- Ready for use
y
Microphone off
è
Baby Call (direct call) number set
o Entry mark when setting (e.g. volume)
u Recall key pressed
P Pause
z No memory content
1
9 10 11 12
5 4 3 2
1
GB
{
Telephone locked
zzzz
When trying to connect: telephone locked
0 – 9 Phone number
With tone dialling:
*
n – key pressed
#
- – key pressed
With additional services from public network providers:
|
New call in calls list
†
(Flashing) A new message has arrived
ë
Call waiting
™
Call forwarding immediately
˜
Call forwarding on no reply
—
Call forwarding when busy
š
Anonymous call on
Safety precautions
When installing, connecting and operating the telephone,
always observe the following precautions:
◆
Only use the plugs and leads supplied.
◆
Only connect the connecting lead to the socket/jack
provided for that purpose.
◆
Only connect approved accessories.
◆ Arrange the connecting lead where it will not cause
accidents.
◆
Position the telephone on a non-slip surface.
◆ For your safety and protection, the telephone must not
be used in bath or shower rooms (wet locations).
The telephone is not splash proof.
◆
Never expose the telephone to sources of heat, direct
sunlight or other electrical devices.
◆
Protect your telephone from moisture, dust, corrosive
liquids and vapours.
◆
Never open up the telephone yourself.
◆
Do not touch the plug contact with pointed or metallic
objects.
◆
Do not carry the telephone by the leads.
◆
If you give your Euroset 5020 to someone else, make
sure you also give them the user guide.
