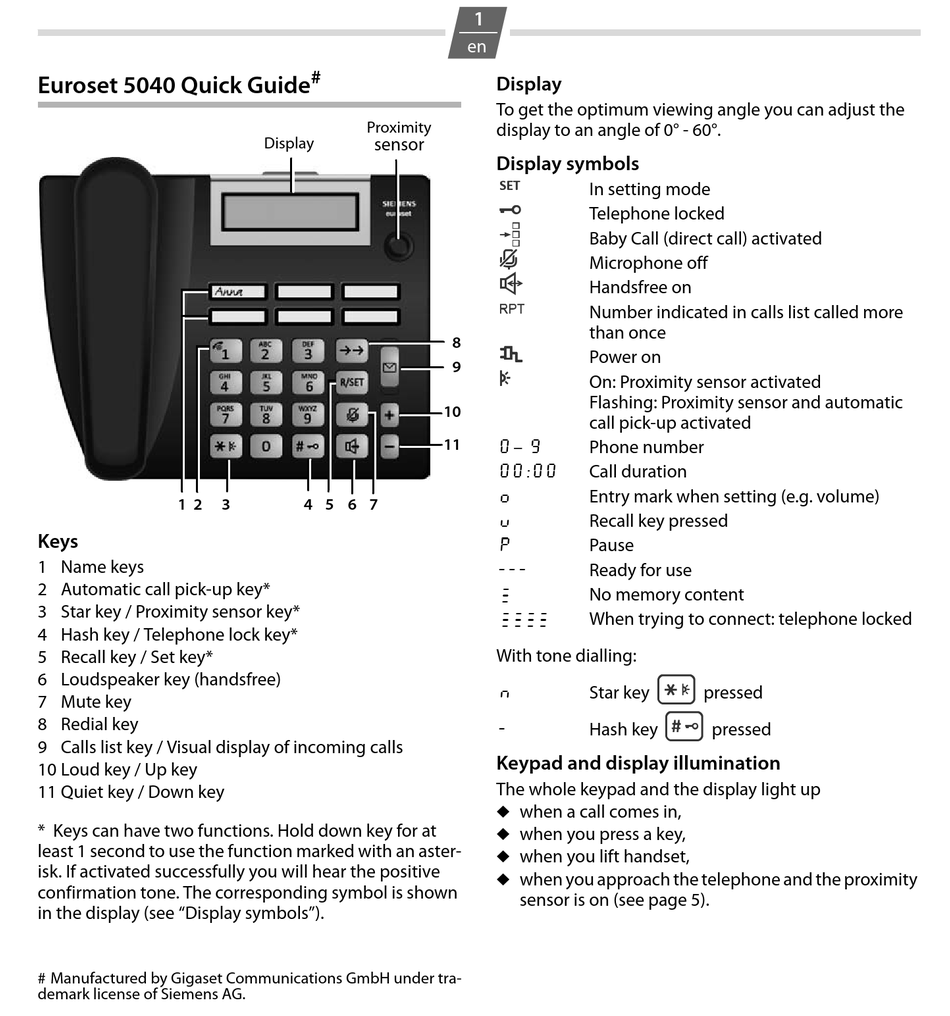

Euroset 5040 Quick Guide
1 2
Keys
1 Name keys
2 Automatic call pick-up key*
3 Star key / Proximity sensor key*
4 Hash key / Telephone lock key*
5 Recall key / Set key*
6 Loudspeaker key (handsfree)
7 Mute key
8 Redial key
9 Calls list key / Visual display of incoming calls
10 Loud key / Up key
11 Quiet key / Down key
* Keys can have two functions. Hold down key for at
least 1 second to use the function marked with an aster-
isk. If activated successfully you will hear the positive
confirmation tone. The corresponding symbol is shown
in the display (see "Display symbols").
# Manufactured by Gigaset Communications GmbH under tra-
demark license of Siemens AG.
#
Proximity
Display
sensor
3 4 5 6 7
1
en
Display
To get the optimum viewing angle you can adjust the
display to an angle of 0° - 60°.
œ
Display symbols
{
In setting mode
ƒ
Telephone locked
~
Baby Call (direct call) activated
}
Microphone off
›
Handsfree on
Number indicated in calls list called more
‰
than once
8
Œ
Power on
9
On: Proximity sensor activated
Flashing: Proximity sensor and automatic
10
call pick-up activated
0 – 9
11
Phone number
00:00
Call duration
o
Entry mark when setting (e.g. volume)
u
Recall key pressed
P
Pause
---
Ready for use
z
No memory content
zzzz
When trying to connect: telephone locked
With tone dialling:
n
Star key
-
Hash key
Keypad and display illumination
The whole keypad and the display light up
◆
when a call comes in,
◆
when you press a key,
◆
when you lift handset,
◆
when you approach the telephone and the proximity
sensor is on (see page 5).
*
pressed
#
pressed
