Aspes ALF1138 User Manual

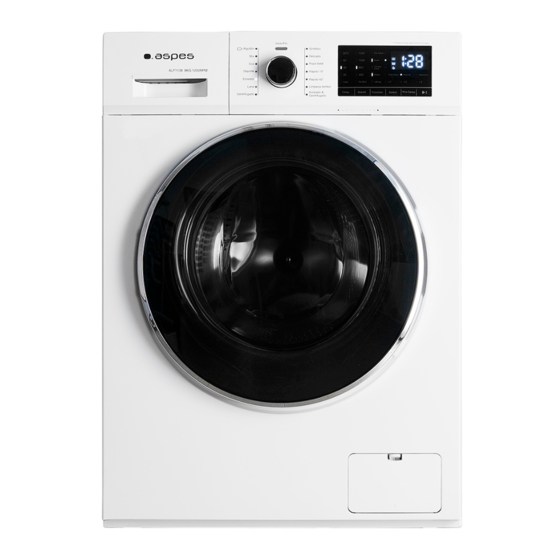

Front loading washing machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ALF1138

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALF1138 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aspes ALF1138

Summary of Contents for Aspes ALF1138

  • Page 1 ALF1138...
  • Page 7 Drain pipe Wash tub...
  • Page 11 * Presione 3 seg. para función de bloqueo. Inicio/Fin Algodón Sintético Delicado Eco40-60 Ropa bebé Deporte Rápido 15′ Edredón Rápido 42′ Lana Limpieza tambor Aclarado & Centrifugado Centrifugado...
  • Page 12 Eco40-60 Eco40-60...
  • Page 26 200W 500W 1500W 1700W 1200RPM...
  • Page 28 ALF1138...

  • Page 29: Table Of Contents

    Content Safety Notifications Part Name Installation Instruction Methods of Door Lock and Remove The Usage Method of the Detergent Box Function Introduction of Operating Panel The Introduction of Function and Program Introduction of Washing Programs Maintenance Varieties of Functions Notice before Washing Non-fault Conditions Troubleshooting Guide Specification...

  • Page 31: Safety Notifications

    Safety Notifications (Please Must Follow) In order to prevent the harm or damage to the user or the person and property of others, please make sure to follow the safety issues. Warnings The risk of electric shock. The danger of fire and current leakage 1.Please use 220-240V, above 10A with 1.Do not allow the washing machine ground wire dedicated socket.

  • Page 32: Part Name

    Part name Attachment specification Instruction water hoses wrench Part name Inlet values Control Panel Detergent box Power line Door assembly Cabinet Wash and spin tub Notice： 1.The first use may drain Adjustable feet some water out. It's residual water after performance test, belong to the normal phenomenon.

  • Page 33: Installation Instruction

    Installation instruction Make sure the temperature of the places where the washer is installed or placed above 0℃ or put it outside. Place the washer correctly according to management standards and regulations. Keep the base of washer ventilated when it is placed on the ground with carpet.
  • Page 34 Requires for positions Horizontal adjustment: The slant angle should be less than 1 degree. Drain pipe Power outlet The distance between any side of washer and Wash tub power outlet should be within 1.5 meters. Don't use too many electrical appliances in one outlet.
  • Page 35 Washers should be connected with water inlet. Please use attached new plumbing rather than the old. In order to ensure the quality, water injection tests are carried out before the washer leaves factory, so there may be water inside the internal tub, door seals and door panel, which are normal.
  • Page 36 Such washing machine is designed for home appliances, please do not install it on ship, traveling truck or plane. Please turn off the stopcock if long time out of use. ( e.g vacation) Please remove plug and cancel door lock function to avoid child locking himself/herself inside.
  • Page 37 Adjust adjustable feet Adjust the adjustable feet to make sure the washing machine in balance, which can be placed on the ground steadily.After settling, screw the locknut to guarantee.Do not place the washing machine in the platform ,which is higher than the ground, in order to prevent the machine from falling down because of other accidents.

  • Page 38: Methods Of Door Lock And Remove

    Methods of Door Lock and Remove DOOR LOCK After operating ,the door will be locked automatically and “DOOR LOCK” light/picture on the panel is lighting. Remove Door Lock “DOOR LOCK”light/picture is lighting,press“Start/Pause”, When WASHING/DEWATERING drum stop operating.Please wait for about 10s, door lock will be removed automatically.

  • Page 39: Function Introduction Of Operating Panel

    Function Introduction of Operating Panel Synthetic 40-60 Image shown here is indicative only. Actual product you receive may differ. 1 POWER Press it to turn off/on power. Procedure over, power off automatically. 2 Start/Pause Press START button to start operation. Press PAUSE button to stop, and press it again to continue.
  • Page 40 7 “Speed” button When push the power button to start the machine and select the program, you can choose different spin speed . 8 “Additional Function” According to your request, you can add the additional function to the basic programs. The additional function will be different according to different basic programs.

  • Page 41: The Introduction Of Function And Program

    The introduction of function and program Usage of routine clothes 1.Preparations Open the door put clothes in and closes the door. Pull out the detergent box, add detergent and close the box. Connect the inlet pipes and make sure the tap turned on. 2.Press the power button 3.The programs can be selected according to requirements.
  • Page 42 Cotton Program Introduction This program is suitable for the clothes which are moderate or mild dirty, like cotton, beddings, underwear, towels and shirt, etc… 1.Preparation for washing Open the door, put the clothes then close the door Taking the detergent box and add detergent then close it. Connect the water inlet pipe well and make sure the faucet is running.
  • Page 43 Delicate Program Introduction Washing gauze, silk underclothes. 1.Prepare for washing Open the door, put the clothes then close the door. Taking the detergent box and add detergent then close it. Connect the water inlet pipe well and make sure the faucet is running. 2.Push “Power”...
  • Page 44 When taking out of clothes, please pay attention to the internal heating steam. To avoid scald, Open the door to exhaust first,and then remove clothes. Quick 15’ Program Introduction To wash clothes that are changed frequently, not too dirty and thin clothes 1.Prepare for washing.
  • Page 45 4.Push “Start/Pause ”button to start washing. 5.When the program ends, it will have a hum sound. If you want to change the current setting during the process of washing, please push “Start/Pause” button first and stop washing, then push button to reset. In order to prevent clothing damage, speed cannot set the highest speed, the temperature can be set to “cold”,"20℃","40℃"...
  • Page 46 Rinse and Spin Program Introduction The machine will not wash, only rinse and spin. 1.Prepare washing Open the door and put the cloths then close the door 2. Push “Power” button and connect to the power 3. Turn the program button to choose“Rinse+ Spin” program The washing program will be selected automatically.
  • Page 47 Program Introduction Wool Wash wool fiber texture, such as machine washable wool fabrics, etc. 1.Prepare for washing Open the door, put the clothes then close the door. Taking the detergent box and add detergent then close it. Connect the water inlet pipe well and make sure the faucet is running. 2.Push “Power”...
  • Page 48 4.Push “Start/Pause ”button to start washing 5.When the program ends, it will have a hum sound. If you want to change the current setting during the process of washing, please push “Start/Pause” button first and stop washing, then push button to reset.
  • Page 49 Eco40-60 Program Introduction To wash the clothes that is not too dirty, it will save time and water. 1.Preparation for washing Open the door, put clothes in and closes the door. Pull out the detergent box, add detergent and close the box. Connect the inlet pipes and make sure the tap turned on.

  • Page 50: Introduction Of Washing Programs

    Introduction of Washing Programs Spin Speed Max.Load Temperature Wash options Program Time(m) (℃) (Run/Min.) (Kg) Normal(Time cold (20 ℃, ℃, ℃, ℃ Cotton 1000(0,400,800,1200) Rated Save,Intensive) Normal(Time ℃ (cold 20 ℃, ℃ Synthetic 1000(0,400,800,1200) Rated Save,Intensive) Normal(Time 800(0,400) ≤2.0 ℃ ℃...

  • Page 51: Maintenance

    Maintenance Please maintenance washing machine to extend service life. Before maintenance, please unplug. Body of washing machine The Clearance of After washing, please clean it with soft Detergent Box cloth. If much contamination ,please Please clean the detergent use appropriate detergent or soap. box regularly.
  • Page 52 Maintenance When washing machine is frozen 1.Cover stopcock and connecting part with hot towel. 2.ake off the inlet pipe, and put it into 50 degree water. 3.Pour into the drum about 2-3L of 50 degree water. 4.Connect inlet pipe, turn on the stopcock and start the washing machine, please check whether inlet and outlet is normal.

  • Page 53: Varieties Of Functions

    Varieties of Functions The Function and the Select Button Prewash: If the cloths are too dirty, you can choose this program before washing. Soak: After selecting this function, there is a period of time for cloth soaking, which can enhance the performance of washing. Crease Care: After selecting this function, in order to resist wrinkling or separate from the tub wall, the machine will have some shaking loose actions for several minutes after spinning.at the water.
  • Page 54 3. Tub clean: The program of drum clean is use the high water level, high water temperature, high speed to clean the drum and kill the bacteria. The detailed operations ways. 4. Child Lock function: You can lock and unlock the child lock function by pushing “Pre Delay”...

  • Page 55: Notice Before Washing

    Push"Start/Pause"button to start the washing machine, it is normal to hear "Clicking" sound, which is door locking sound not an error. If it occurs"dE" warnings, please use hand to push and shut the door. Push two times of "Start/Pause"button to continue running of the machine. 6.
  • Page 56 3.Notes When put big and small clothes together, put the big first and they have to be less than half of total clothes. Please don't wash single cloth because it may cause the trouble of imbalance. Please add one or two similar clothes. Small clothes like silk stockings and handkerchiefs should be put into mesh bags to wash.

  • Page 57: Non-Fault Conditions

    Non-fault conditions The program is running. The door can't There are clothes between the door and open. door seals. There may be a smell of rubber because There is an odor. some components are made up of rubber. There is too little Roller washing machine just needs a little water when wash water when operating.

  • Page 58: Troubleshooting Guide

    Troubleshooting guide check points solutions Phenomenon Check if press the power button or Press the power button or start/ start/pause button? pause button. Is the plug pulling out? Connect the plug. Washer can't start Please wait. Is there a power failure? Check if cut the leakage protector? Open the leakage protector.

  • Page 59: Specification

    Specification 200W 500W 1500W 1700W 1200...

  • Page 60: Environmental Protection

    The following data just for reference only energyconsumption waterconsumption Average remaining (L/cycle) (KWh/cycle) moisture content 0.06 Wool 1:07 0.35 Cotton 2:00 Cotton 1:07 0.65 0.05...
  • Page 61 PRODUCT FICHE ALF1138 79.2 1.04 0.720 1200 1200 1200 3 : 38 2 : 48 2 : 48...
  • Page 62 1.030 0.660 0.430 0.720 0.909 79.2 52.0 46.0 43.0 1.04 1.04 1.04...
  • Page 63 3:38 2:48 2:48 1200 1200 1200 0.50...
  • Page 64 4.00...
  • Page 65 Specification,picture and feature are subject to change without prior notice for purpose of product improvement. X2373-001-8154(A)
