Toa MP-932 Specifications

Monitor panel

MONITOR PANEL

1. Monitoring of up to 10 channels.

2. Both aural and visual monitoring.

3. Monitors 25, 50, 70 and 100-volt line

outputs.

Three-unit vertical space (1 unit: 1¾").

TOA 900 SERIES

MP-932

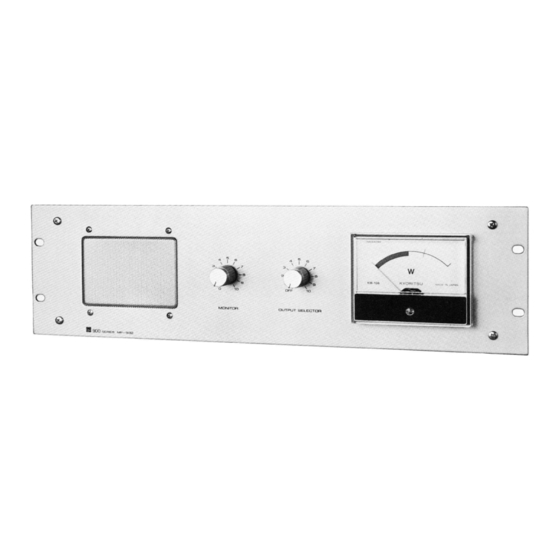

The TOA Monitor Panel Model MP-932 is designed to

provide aural/visual monitoring for multi-channel

sound and program systems. Dual monitoring of this

type is necessary for proper operation of multi-

amplifier systems. Without the visual indication of the

outgoing level provided by the watt meter it is

impossible to judge the level accurately. Aural

monitoring also provides a necessary means of easily

checking the quality of the program material. The

MP-932 provides accurate monitoring facilities for

systems having up to 10 separate program channels

or 10 amplifiers. A large, easy-to-read watt meter

allows precise adjustment of the outgoing level, and a

high compliance 5" monitor speaker provides quick

and easy aural checking of the program material.

Versatile as well as functional, the MP-932 can

monitor 25, 50, 70 and 100-volt line outputs.

Table of Contents

Do you have a question about the MP-932 and is the answer not in the manual?

Page 1: Monitor Panel
Three-unit vertical space (1 unit: 1¾"). TOA 900 SERIES MP-932 Description The TOA Monitor Panel Model MP-932 is designed to provide aural/visual monitoring for multi-channel sound and program systems. Dual monitoring of this type is necessary for proper operation of multi- amplifier systems.
Page 2: Specifications
*Specifications are subject to change without notice. Architect’s and Engineer’s Specifications The TOA Monitor Panel shall provide complete aural and visual monitoring for outputs of up to 10 power amplifiers. It shall include a 5-inch monitor speaker and volume control, a square watt meter and an 11-position (OFF and 10 channels) selector switch.
