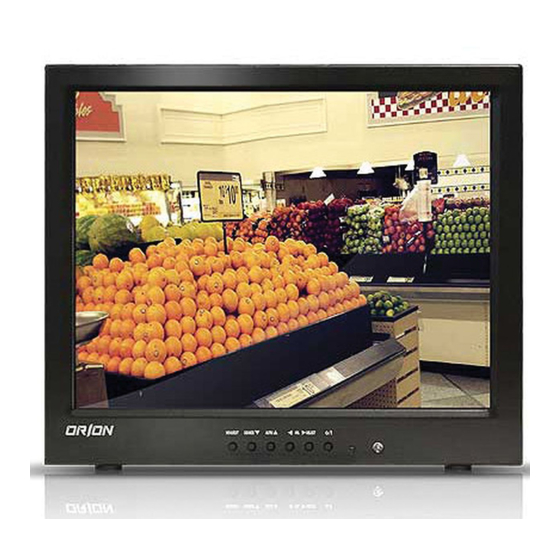

15 INCH PREMIUM
TFT-LCD CCTV MONITOR
15RTC
INSTRUCTION MANUAL
Please read this manual thoroughly before use, and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15RTC and is the answer not in the manual?

Questions and answers

Summary of Contents for Toa 15RTC

  • Page 1 15 INCH PREMIUM TFT-LCD CCTV MONITOR 15RTC INSTRUCTION MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
  • Page 2 SAFETY INSTRUCTION…………………………………………………………………….2 – 3 1. Important Safety Instructions ……………………………………………………………2 – 3 2. Safety Precautions ……………………………………………………………………….3 CAUTIONS ………………………………………..……………………………………………..4 FCC RF INTERFERENCE STATEMENT …………………………………………………….5 CONNECTING WITH EXTERNAL EQUIPMENT…………………………………………… 6 REMOTE FUNCTIONS ……………………………………………………………………….. 7 CONTROLS AND FUNCTIONS…………………………………………………………..8 - 20 MOUNTING GUIDE …………………………………………………………….……..…….. 21 D-SUB CONNECTOR PIN ASSIGNMENTS ……………………………………………….22 POWER MANAGEMENT……………………………………………………………………..23 SPECIFICATIONS……………………………………………………………………….
  • Page 3: Important Safety Instructions

    Important Safety Instructions 1). Read these instructions 2). Keep these instructions.. 3). Heed all warnings. 4). Follow all instructions. 5). Do not use this apparatus near water. 6). Clean only with dry cloth. 7). Do not block any ventilation openings. Install in accordance with the maufacturer’s instructions.
  • Page 4 The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. Minimum distances(e.g. 10cm)around the apparatus for sufficient ventilation. “WARNING - To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.”...
  • Page 5 CAUTIONk The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. ATTENTIONN Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à proximité du matériel et être facile d`accès ▶...
  • Page 6: Doc Compliance Notice

    NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 7 A. SIDE PANEL CONTROL 1. DC 12V IN 2. D-SUB IN PC Signal Input 3. VIDEO 1(AV1) IN Composite signal Input for AV1 4. VIDEO 1(AV1) OUT Video looping output for AV1 5. VIDEO 2(AV2) IN Composite signal Input for AV2 6.
  • Page 8: Remote Controller

    B. REMOTE CONTROLLER 1. POWER( Turns the power ON or OFF. There will be a few seconds delay before the display appears. 2. SOURCE Select pc or video( AV1 / AV2 / S-Video / PC ) sources. 3. APC (Auto Picture Control) Select picture mode.
  • Page 9: Power On/Off

    1 / 2. ◀ ▶ Adjust the volume / Adjust menu settings. 3 / 4. ▲ / ▼ This button allows user to enter the sub-menu of the activated function 5. SOURCE/SELECT Select PC or video source. Select On Screen Display menu 6.
  • Page 10: Osd Menu Description

    OSD MENU DESCRIPTION A: CUSTOM MENU (Only Video mode) Press the MENU button and then up(▲) / down(▼) button to select the Custom menu. Press the up(▲) / down(▼) button to select Custom sub menu. Press the left(◀) /right(▶) button to adjust picture setting. Press the MENU button to save.
  • Page 11 A: CUSTOM MENU (Only PC mode) Press the MENU button and then up(▲) / down(▼) button to select the Custom menu. Press the up(▲) / down(▼) button to select Custom sub menu. Press (◀) /right(▶) button to adjust picture setting. Press the MENU button to save.
  • Page 12: Picture Mode

    B. Picture / Sound Menu(Only Video mode) Press the MENU button and then up(▲) / down(▼) button to select the Picture / Sound. Press the right(▶) or ENTER button. 1. Picture Mode Press the up(▲) / down(▼) button to select the Picture Mode. Press the right(▶) or ENTER button and then press up(▲) / down(▼) button to select the desire Picture Mode.
  • Page 13: Color Tone

    2. Color Tone Press the up(▲) / down(▼) button to select the Color Tone. Press the (▶) or ENTER button and then up(▲)/down(▼) button to select the desired color tone. Press the MENU button to save. …………………………………………………………………………… INSTRUCTION MANUAL...
  • Page 14 3. Mute Press the up(▲) / down(▼) button to select the Mute. Press the (▶) or ENTER button and then up(▲)/down(▼) button to select the desired Mute. Press the MENU button to save. …………………………………………………………………………… INSTRUCTION MANUAL...
  • Page 15 4. Volume Press the up(▲) / down(▼) button to select the Volume. Press (◀) /right(▶) button to adjust Volume. Press the MENU button to save. 5. PC (Only PC mode) Press the up(▲) / down(▼) button to select the PC Press the ▶...
  • Page 16: Setup Menu

    Press the up(▲) / down(▼) button to select PC sub menu Press the right(▶) or ENTER button and then left (◀) /right(▶) button to adjust PC setting. Press the MENU button to save. Auto Adjust: Auto geometry adjustment Phase: Adjust the number of horizontal picture elements. H.
  • Page 17 1.Reset Press ENTER button to select the reset Reset: Select to reset all setting to the factory default values. ……………………………………………………………………………… INSTRUCTION MANUAL...
  • Page 18 2. Language Press the up(▲) / down(▼) button to select the Language menu. Press the right(▶) or ENTER button. Press the up(▲) / down(▼) button to select language. Press the MENU button to save. 17 …………………………………………………………………………… INSTRUCTION MANUAL...
  • Page 19 3. OSD Tone Press the up(▲) / down(▼) button to select the OSD tone menu. Press the right(▶) or ENTER button Press the up(▲) / down(▼) button to select the desire OSD Tone. Press the MENU button to save. ……………………………………………………………………………… INSTRUCTION MANUAL...
  • Page 20: Blue Screen

    4. Blue Screen Press the up(▲) / down(▼) button to select the blue screen. Press the right(▶) or ENTER button. Press the up(▲) / down(▼) button to select on or off. Press the MENU button to save. …………………………………………………………………………… INSTRUCTION MANUAL...
  • Page 21: Key Lock

    5. Key Lock Press the up(▲) / down(▼) button to select the key lock menu. Press the right(▶) or ENTER button Press the up(▲) / down(▼) button select on or off Press the MENU button to save. ……………………………………………………………………………… INSTRUCTION MANUAL...
  • Page 22 Use the VESA standard mount design and the 100mm hole pattern on the back panel to install the LCD monitor to the mounting bracket using the (optional) mounting bracket sold separately. Wall-mount Installation 1.Remove the monitor stand bracket assembled with monitor. 2.Install the mounting bracket to the monitor using the screws provided with the mounting bracket.
  • Page 23: Pin Assignments

    PIN ASSIGNMENTS ▶ ACCESSORY ▶ 1. User’s Manual 4. VGA Cable …………………………………………………………………………… INSTRUCTION MANUAL 2. Power Cord 3. Remote Control Unit And Battery...
  • Page 24: Power Consumption

    This monitor features a power management system to “power down” upon receipt of the VESA DPMS(The display power management signaling) from a VESA DPMS video card. The VESA DPMS-compliant video card performs this signaling system through not sending horizontal, vertical, or sync signal. This monitor enters an appropriate mode through identifying each of the three modes of the signaling system.
  • Page 25: Power Supply

    LCD- Type 15˝ Diagonal AM-TFT(Active-Matrix) Pixel pitch(mm) : 0.297(H) X 0.297(V) BRIGHTNESS: 250cd/㎡(Typical) RESOLUTION CONTRAST RATIO: 700:1(Typical) (H x V) RESPONSE TIME: 8 msec(Typical) 1024X768 @60Hz HORIZONTAL: 31- 48KHz FREQUENCY VERTICAL: 56-75Hz VIDEO(2ch input 1.0Vp-p, INPUT SIGNAL 75Ω terminated, loop-through out) SYNC(Separate TTL Level) S-VIDEO(1ch input (Y/C) , loop-through out) ACTIVE DISPLAY...
  • Page 26: Weee Symbols

    “Going to Sleep” message on screen WEEE Symbols Correct Disposal of This Product (Waste Electrical &Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature,indicates that it should not be disposed with other household wastes at the end of its working life.To prevent possible harm to the environment or human health from uncontrolled waste...
