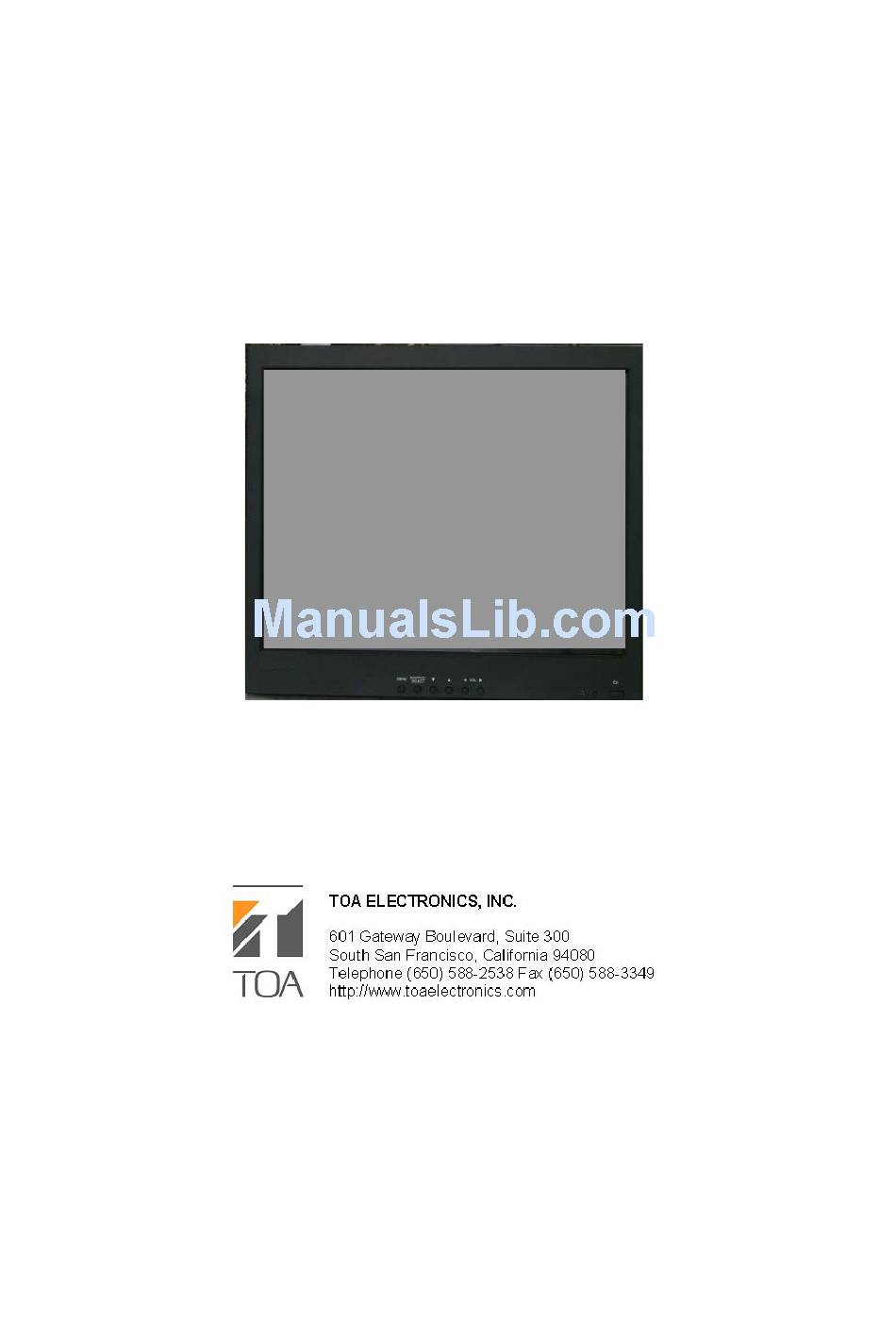

- Page 1 20-INCH PREMIUM TFT-LCD MONITOR 20RTH INSTRUCTION MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
- Page 2 SAFETY INSTRUCTION…………………………………………………………………….2 – 3 1. Important Safety Instructions ……………………………………………………………2 – 3 2. Safety Precautions ……………………………………………………………………….3 CAUTIONS ………………………………………..……………………………………………..4 FCC RF INTERFERENCE STATEMENT …………………………………………………….5 CONNECTING WITH EXTERNAL EQUIPMENT…………………………………………… 6 REMOTE FUNCTIONS ……………………………………………………………………….. 7 CONTROLS AND FUNCTIONS…………………………………………………………..8 - 26 MOUNTING GUIDE …………………………………………………………….……..…….. 27 D-SUB CONNECTOR PIN ASSIGNMENTS ……………………………………………….28 POWER MANAGEMENT……………………………………………………………………..29 SPECIFICATIONS……………………………………………………………………….
-
Page 3: Important Safety Instructions
Important Safety Instructions 1). Read these instructions 2). Keep these instructions.. 3). Heed all warnings. 4). Follow all instructions. 5). Do not use this apparatus near water. 6). Clean only with dry cloth. 7). Do not block any ventilation openings. Install in accordance with the maufacturer’s instructions. - Page 4 The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. Minimum distances(e.g. 10cm)around the apparatus for sufficient ventilation. “WARNING - To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.”...
- Page 5 CAUTIONk The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. ATTENTIONN Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à proximité du matériel et être facile d`accès ▶...
-
Page 6: Doc Compliance Notice
NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 7 A. BOTTOM PANEL CONTROL 1. DC 15V (12V) IN 2. COMPONENT Y,Pb,Pr & SOUND L,R 3. AUDIO OUT 4. PC STEREO IN 5. D-SUB IN 6. DVI IN 7. HDMI IN B. SIDE PANEL CONTROL 1. VIDEO 1(AV1) IN 2. VIDEO 1(AV1) OUT 3.
-
Page 8: Remote Controller
C. REMOTE CONTROLLER 1. POWER( Turns the power ON or OFF. There will be a few seconds delay before the display appears. 2. SOURCE Select pc or video( AV1/AV2/S-Video/DVI/PC) sources. 3. AUTO Auto geometry adjustment in PC Source. 4. MUTE Mute the sound. -
Page 9: Power Led
D. FRONT KEY CONTROL 1. MENU Activates and exits the On Screen Display. 2. SOURCE Select PC or video source. Select On Screen Display menu 3 / 4. ▼ / ▲ This button allows user to enter the sub-menu of the activated function 5 / 6. - Page 10 A: CUSTOM MENU (Only PC mode) Press the MENU button and then up(▲) / down(▼) button to select the Custom menu. Press the up(▲) / down(▼) button to select Custom sub menu. Press (◀) /right(▶) button to adjust picture setting. Press the MENU button to save.
-
Page 11: Picture Mode
B. Picture / Sound Menu(Only Video mode) 4 : 3 Press the MENU button and then up(▲) / down(▼) button to select the Picture / Sound. Press the right(▶) or ENTER button. 1. Picture Mode Press the up(▲) / down(▼) button to select the Picture Mode. Press the right(▶) or ENTER button and then press up(▲) / down(▼) button to select the desire Picture Mode. -
Page 12: Color Tone
2. Color Tone 4 : 3 Press the up(▲) / down(▼) button to select the Color Tone. 4 : 3 Press the (▶) or ENTER button and then up(▲)/down(▼) button to select the desired color tone. Press the MENU button to save. ……………………………………………………………………………... - Page 13 3. Mute Press the up(▲) / down(▼) button to select the Mute. Press the (▶) or ENTER button and then up(▲)/down(▼) button to select the desired Mute. Press the MENU button to save. 4. Volume Press the up(▲) / down(▼) button to select the Volume. Press (◀) /right(▶) button to adjust Volume.
- Page 14 5. Size Press the up(▲) / down(▼) button to select the Size. Press the (▶) or ENTER button and then up(▲)/down(▼) button to select the desired Size. Press the MENU button to save. 6. NR Press the up(▲) / down(▼) button to select the NR. ………………………………………………………………………………...
- Page 15 Press the (▶) or ENTER button and then up(▲) / down(▼) button to select on or off. Press the MENU button to save 6. PC (Only PC mode) Press the up(▲) / down(▼) button to select the PC Press the ▶ or ENTER button ……………………………………………………………………………...
- Page 16 Press the up(▲) / down(▼) button to select PC sub menu Press the right(▶) or ENTER button and then left (◀) /right(▶) button to adjust PC setting. Press the MENU button to save. Auto Adjust: Auto geometry adjustment Phase: Adjust the number of horizontal picture elements. H.
-
Page 17: Input Source
1. PIP Press the up(▲) / down(▼) button to select the PIP. Press the right(▶) or ENTER button and then press up(▲) / down(▼) button to select the On or Off. Press the MENU button to save. 2. Input Source Press the up(▲) / down(▼) button to select the Input Source. - Page 18 Press the right(▶) or ENTER button and then press up(▲) / down(▼) button to select the desire Input Source. Press the MENU button to save. 3. Size Press the up(▲) / down(▼) button to select the Size. ……………………………………………………………………………… INSTRUCTION MANUAL...
- Page 19 Press the right(▶) or ENTER button and then press up(▲) / down(▼) button to select the desire Size. Press the MENU button to save. 4. Position Press the up(▲) / down(▼) button to select the Position. …………………………………………………………………………… INSTRUCTION MANUAL...
- Page 20 Press the right(▶) or ENTER button and then press up(▲) / down(▼) button to select the desire Position. Press the MENU button to save. 5. Swap Press the up(▲) / down(▼) button to select the Swap. Press the right(▶) or ENTER button ………………………………………………………………………………...
-
Page 21: Sound Select
5. Sound Select Press the up(▲) / down(▼) button to select the Sound Select. Press the right(▶) or ENTER button and then press up(▲) / down(▼) button to select the desire Sound Select. Press the MENU button to save. …………………………………………………………………………… INSTRUCTION MANUAL... -
Page 22: Setup Menu
D. SETUP MENU Press the MENU button and then up(▲) / down(▼) button to select the Setup menu. Press the right(▶) or ENTER button 1.Reset Press ENTER button to select the reset Reset: Select to reset all setting to the factory default values. ………………………………………………………………………………... - Page 23 2. Language Press the up(▲) / down(▼) button to select the Language menu. Press the right(▶) or ENTER button. Press the up(▲) / down(▼) button to select language. Press the MENU button to save. …………………………………………………………………………… INSTRUCTION MANUAL...
- Page 24 3. OSD Tone Press the up(▲) / down(▼) button to select the OSD tone menu. Press the right(▶) or ENTER button Press the up(▲) / down(▼) button to select the desire OSD Tone. Press the MENU button to save. ……………………………………………………………………………… INSTRUCTION MANUAL...
-
Page 25: Blue Screen
4. Blue Screen Press the up(▲) / down(▼) button to select the blue screen. Press the right(▶) or ENTER button. Press the up(▲) / down(▼) button to select on or off. Press the MENU button to save. …………………………………………………………………………… INSTRUCTION MANUAL... -
Page 26: Key Lock
5. Key Lock Press the up(▲) / down(▼) button to select the key lock menu. Press the right(▶) or ENTER button Press the up(▲) / down(▼) button to select on or off Press the MENU button to save. ……………………………………………………………………………… INSTRUCTION MANUAL... - Page 27 Use the VESA standard mounting design and the 100mm hole pattern on the back panel to install the LCD monitor to the (optional) mounting bracket sold separately. Wall-mount Installation 1.Remove the monitor stand bracket assembled with the monitor. 2.Install the mounting bracket to the monitor using the screws provided with the mounting bracket. ……………………………………………………………………………...
-
Page 28: Pin Assignments
PIN ASSIGNMENTS ▶ ACCESSORY ▶ 1. User’s Manual 4. VGA Cable ……………………………………………………………………………… INSTRUCTION MANUAL 2. Power Cord 3. Remote Control Unit And Battery... -
Page 29: Led Indicator
This monitor features a power management system to “power down” upon receipt of the VESA DPMS(The display power management signaling) from a VESA DPMS video card. The VESA DPMS-compliant video card performs this signaling system through not sending horizontal, vertical, or sync signal. This monitor enters an appropriate mode through identifying each of the three modes of the signaling system. -
Page 30: Electrical Ratings
20.1˝ Diagonal AM-TFT(Active-Matrix) Pixel pitch(mm) : 0.255(H) x 0.255(V) BRIGHTNESS: 300cd/㎡(Typical) LCD- Type CONTRAST RATIO: 800:1(Typical) VIEWING ANGLE: 178°/178°(H/V) RESPONSE TIME: 16msec(Typical) RESOLUTION 1600X1200 @60Hz (H x V) HORIZONTAL: 31- 80KHz FREQUENCY VERTICAL: 56-75Hz VIDEO(2ch input 1.0Vp-p, 75Ω terminated, loop-through out) S-VIDEO(1ch input (Y/C) , loop-through out) COMPONENT(Y,Pb,Pr, Sound L/R) -
Page 31: Weee Symbols
“Going to Sleep” message on screen WEEE Symbols Correct Disposal of This Product (Waste Electrical &Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature,indicates that it should not be disposed with other household wastes at the end of its working life.To prevent possible harm to the environment or human health from uncontrolled waste...
