Summary of Contents for ComfortStar CLA12CA-L

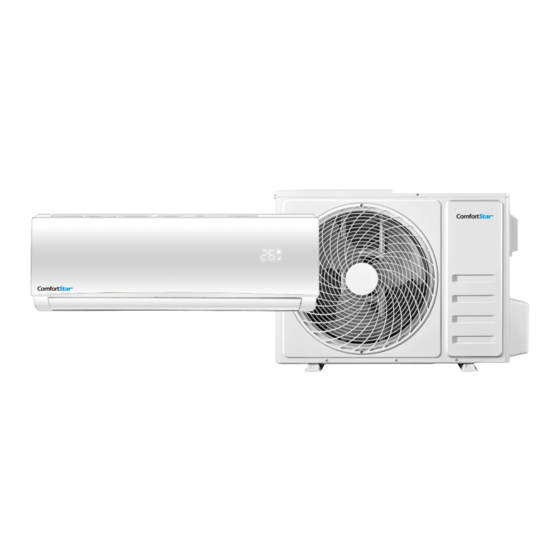

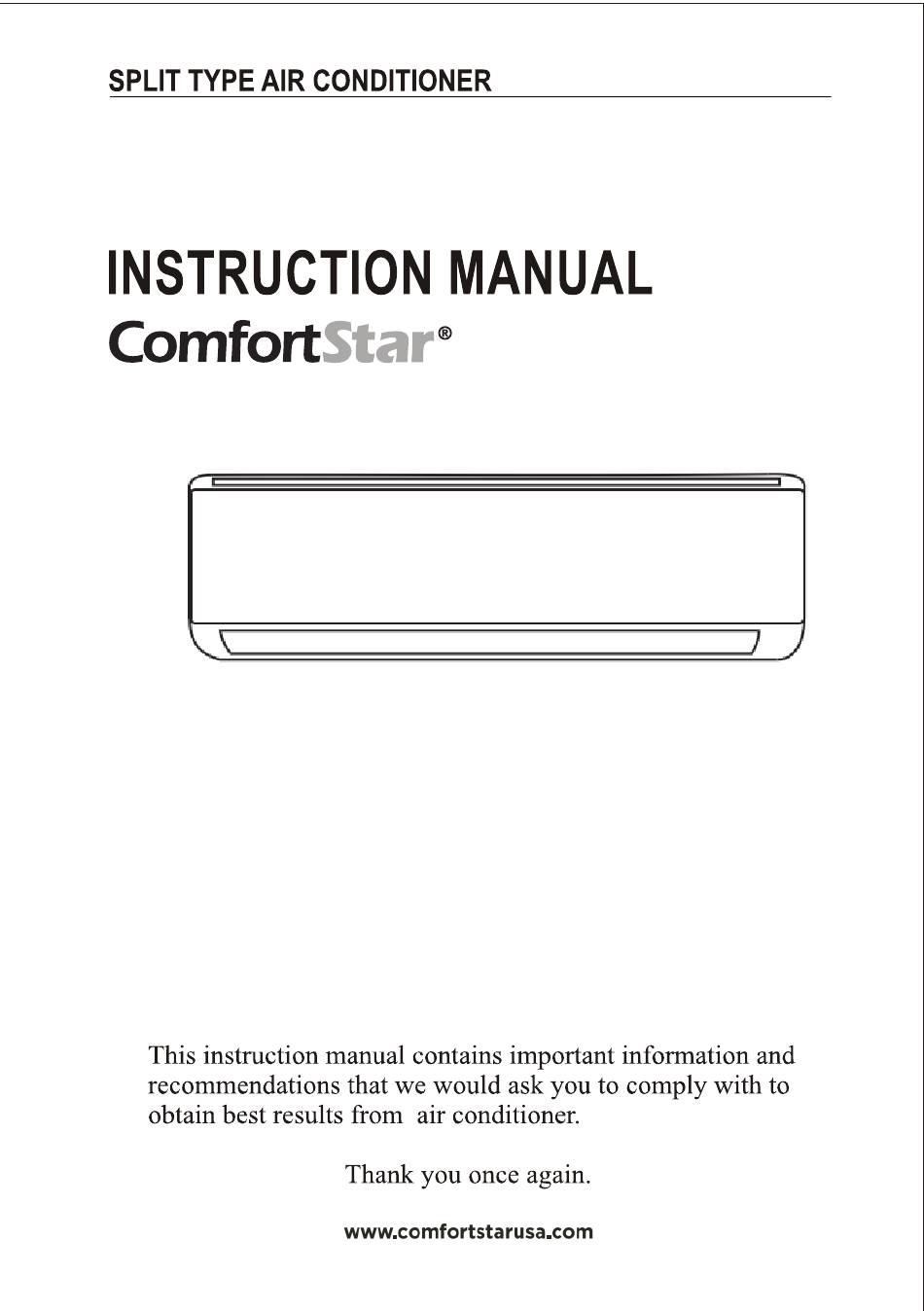

- Page 1 CLA12CA- L CLA12CD- L CLA18CD- L CLA24CD- L CSA12CA- L...
-
Page 3: Table Of Contents
CONTENTS ........................... SAFETY PRECAUTIONS ..........................NAME OF PARTS ..........................REMOTE CONTROL ......................... OPERATION INSTRUCTIONS ......................INSTALLATION PRECAUTIONS ......................INDOOR UNIT INSTALLATION ......................OUTDOOR UNIT INSTALLATION ..........................TEST OPERATION ............................. MAINTENANCE ..........................TROUBLESHOOTING * The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS SAFETY RULES AND RECOMMENDATIONS FOR THE INSTALLER ead this guide before installing and using the appliance. uring the installation of the indoor and outdoor units the access to the working area should be forbidden to children. Unforeseeable accidents could happen. ake sure that the base of the outdoor unit is firmly fixed. - Page 5 SAFETY PRECAUTIONS SAFETY RULES AND RECOMMENDATIONS FOR THE INSTALLER o not try to install the conditioner alone, always contact specialized technical personnel. leaning and maintenance must be carried out by specialized technical personnel. In any case disconnect the appliance from the mains electricity supply before carrying out any cleaning or maintenance.
- Page 6 SAFETY PRECAUTIONS SAFETY RULES AND PROHIBITIONS o not bend, tug or compress the power cord since this could damage it. Electrical shocks or fire are probably due to a damaged power cord. Specialized technical personnel only must replace a damaged power cord. o not use extensions or gang modules.
-
Page 7: Name Of Parts
NAME OF PARTS Indoor Unit Mounting plate Front panel Emergency button Air outlet Air deflector and flap Air filter Refrigerant connecting pipe Outdoor Unit Air inlet Wiring cover Air outlet Drainage pipe Connection wiring Valve protective cover Gas valve (Low pressure valve) Liquid valve ( High pressure valve) With the protective cover removed... - Page 8 NAME OF PARTS Indoor Display Indicator for Timer, temperature and Error codes. Lights up during Timer operation. SLEEP mode The symbol appears when the unit is turned on, and disappear when the unit is turned off. The symbol appears when power on. The shape and position of switches and indicators may be different according to the model, but their function is the same.
-
Page 9: Remote Control
REMOTE CONTROL Remote control DISPLAY Symbols Meaning Battery indicator Auto Mode Cooling Mode Dry Mode Fan only Mode Heating Mode ECO Mode Timer Temperature indicator Fan speed: Auto/low/mid/high Mute function TURBO function Up-down auto swing Left-right auto swing SLEEP function Health function Signal indicator The display and some functions of the remote control may vary according to the model. - Page 10 REMOTE CONTROL Button Function Toturn on/off the air conditioner . Todecrease temperature,orTimersetting hours. Toincreasetemperature,or Timer setting hours. Toselectthe modeofoperation (AUTO,COOL,DRY,FAN,HEAT). MODE Toactivate/deactivate theECOfunction. Toactivate/deactivate theTURBOfunction. TURBO To select the fan speed ofauto/low/mid/high. Tosetthe time for timer on/off. TIMER Toswitch-on/off the function SLEEP. SLEEP Toswitch-on/off the LEDdisplay.
- Page 11 REMOTE CONTROL Replacement of Batteries Remove the battery cover plate from the rear of the remote control, by sliding it in direction as the arrow. Install the batteries according the direction (+ and -) shown on the Remote Control. Reinstall the battery cover by sliding it into place. Use 2 pieces LRO3 AAA (1.5V) batteries.
- Page 12 REMOTE CONTROL COOLING MODE HEATING MODE The cooling function allows the air The heating function allows the air COOL HEAT conditioner to cool the room and conditioner to heat the room. reduce Air humidity at the same To activate the heating function (HEAT), press the time.
- Page 13 REMOTE CONTROL TIMER function ---- TIMER ON SWING function To automatic switch on the SWING SWING TIMER appliance. When the unit is switch-off, you can set the 1 . Press the button SWING to activate the louver, 1 .1 Press to activate the horizontal flaps to TIMER ON.
- Page 14 REMOTE CONTROL SLEEP function ECO function In this mode the appliance Pre-setting automatic operating SLEEP automatically sets the operation to program. save energy. Press button to activate the SLEEP Press the ECO button, the appears on the function, and appears on the display. display, and the appliance will run in ECO mode.
-
Page 15: Operation Instructions
OPERATION INSTRUCTIONS Attempt to use the air conditioner under the temperature beyond the specified range may cause the air conditioner protection device to start and the air conditioner may fail to operate. Therefore, try to use the air conditioner in the following temperature conditions. Fixed air conditioner: MODE Heating... -
Page 16: Installation Precautions
INSTALLATION PRECAUTIONS Pipe Length and Additional Refrigerant Inverter Models Capacity (Btu/h) 9K-12K 18K 36K Lenght of pipe with standard charge Lenght of pipe with standard charge (Like: North American, etc.) 7.5m 7.5m 7.5m 7.5m Maximum distance between indoor and outdoor unit Additional refrigerant charge 20g/m 15g/m... -
Page 17: Indoor Unit Installation
INDOOR UNIT INSTALLATION Step1 : Select Installation location 1 . 1 Ensure the installation complies with the installation minimum dimensions ( defined below) and meets the minimum and maximum connecting piping length and maximum change in elevation as defined in the System Requirements section. 1 . - Page 18 INDOOR UNIT INSTALLATION Step2: Install Mounting Plate 2 .1 Take the mounting plate from the back of indoor unit. 2. 2 Ensure to meet the minimum installation dimension requirements as step 1, according to the size of mounting plate, determine the position and stick the mounting plate close to the wall. 2 .3 Adjust the mounting plate to a horizontal state with a spirit level, then mark out the screw hole positions on the wall.
- Page 19 INDOOR UNIT INSTALLATION Step4 : Connecting Refrigerant Pipe 4 .1 According to the wall hole position, select the appropriate piping mode. There are three optional piping modes for indoor units as shown in the figure below: In Piping Mode 1 or Piping Mode 3, a notch should be made by using scissors to cut the plastic sheet of piping outlet and cable outlet on the corresponding side of the indoor unit.
- Page 20 INDOOR UNIT INSTALLATION Step5 : Connect Drainage Hose 5 . 1 Adjust the drainage hose( if applicable) In some model, both sides of the indoor unit are provided with drainage ports, you can choose one of them to attache the drainage hose. And plug the unused drain port with the rubber attached in one of the ports.
- Page 21 INDOOR UNIT INSTALLATION Step7 : Wrap Piping and Cable After the refrigerant pipes, connecting wires and drainage hose are all installed, in order to save space, protect and insulate them, it must be bundle with insulating tape before passing them through the wall hole.
-
Page 22: Outdoor Unit Installation
OUTDOOR UNIT INSTALLATION Step1 : Select Installation Location Select a site that allows for the following: 1 . 1 Do not install the outdoor unit near sources of heat, steam or flammable gas. 1 . 2 Do not install the unit in too windy or dusty places. 1 .3 Do not install the unit where people often pass. - Page 23 OUTDOOR UNIT INSTALLATION Step4: Install Wiring 4 .1 Use a phillips screwdriver to unscrew wiring cover, grasp and press it down gently to take it down. 4 . 2 Unscrew the cable clamp and take it down. 4 .3 According to the wiring diagram pasted inside the wiring cover, connect the connecting wires to the corresponding terminals, and ensure all connections are firmly and securely.
- Page 24 OUTDOOR UNIT INSTALLATION Step6 : Vacuum Pumping 6 .1 Use a spanner to take down the protective caps from the service port, low pressure valve and high pressure valve of the outdoor unit. 6 .2 Connect the pressure hose of manifold gauge to the service port on the outdoor unit low pressure valve.
-
Page 25: Test Operation
TEST OPERATION Inspections Before Test Run Do the following checks before test run. Inspection method Description Check whether the power supply voltage complies with specification. Electrical Check whether there is any wrong or missing connection between the safety inspection power lines, signal line and earth wires. Check whether the earth resistance and insulation resistance comply with requirements. - Page 26 TEST OPERATION Test Run Instruction 1 . Turn on the power supply. 2 . Press the ON/ OFF button on the remote controller to turn on the air conditioner. 3 . Press the Mode button to switch the mode COOL and HEAT. In each mode set as below: COOL- Set the lowest temperature HEAT- Set the highest temperature...
-
Page 27: Maintenance
MAINTENANCE When cleaning, you must shut down the machine and cut off the power supply for more than 5 minutes. Under no circumstances should the air conditioner be flushed with water. Volatile liquid (e.g. thinner or gasoline) will damage the air conditioner, so only use soft dry cloth or wet cloth dipped with neutral detergent to clean the air conditioner. -
Page 28: Troubleshooting
TROUBLESHOOTING POSSIBLE CAUSES MALFUNCTION Power failure/ plug pulled out. Damaged indoor/ outdoor unit fan motor. Faulty compressor thermomagnetic circuit breaker. Faulty protective device or fuses. The appliance does Loose connections or plug pulled out. operate It sometimes stops operating to protect the appliance. Voltage higher or lower than the voltage range. - Page 29 TROUBLESHOOTING ERROR CODE ON THE DISPLAY In case of error, the display on the indoor unit shown the following error codes: Description of the trouble Display Indoor room temperature sensor fault Indoor pipe temperature sensor fault Outdoor pipe temperature sensor fault Refrigerant system leakage or fault Malfunction of indoor fan motor Outdoor ambient temperature sensor fault...
- Page 32 Heat Sink Compound ( Thermal Paste) radiator to maximize heat...
