Gas Analysis
Sample gas probes
GAS 222.11 Ex2
Installation and Operation Instructions
Original instructions
BE460063
Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen
09/2023
Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20
E-Mail: analyse@buehler-technologies.com
Internet: www.buehler-technologies.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GAS 222.11 Ex2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bühler technologies GAS 222.11 Ex2

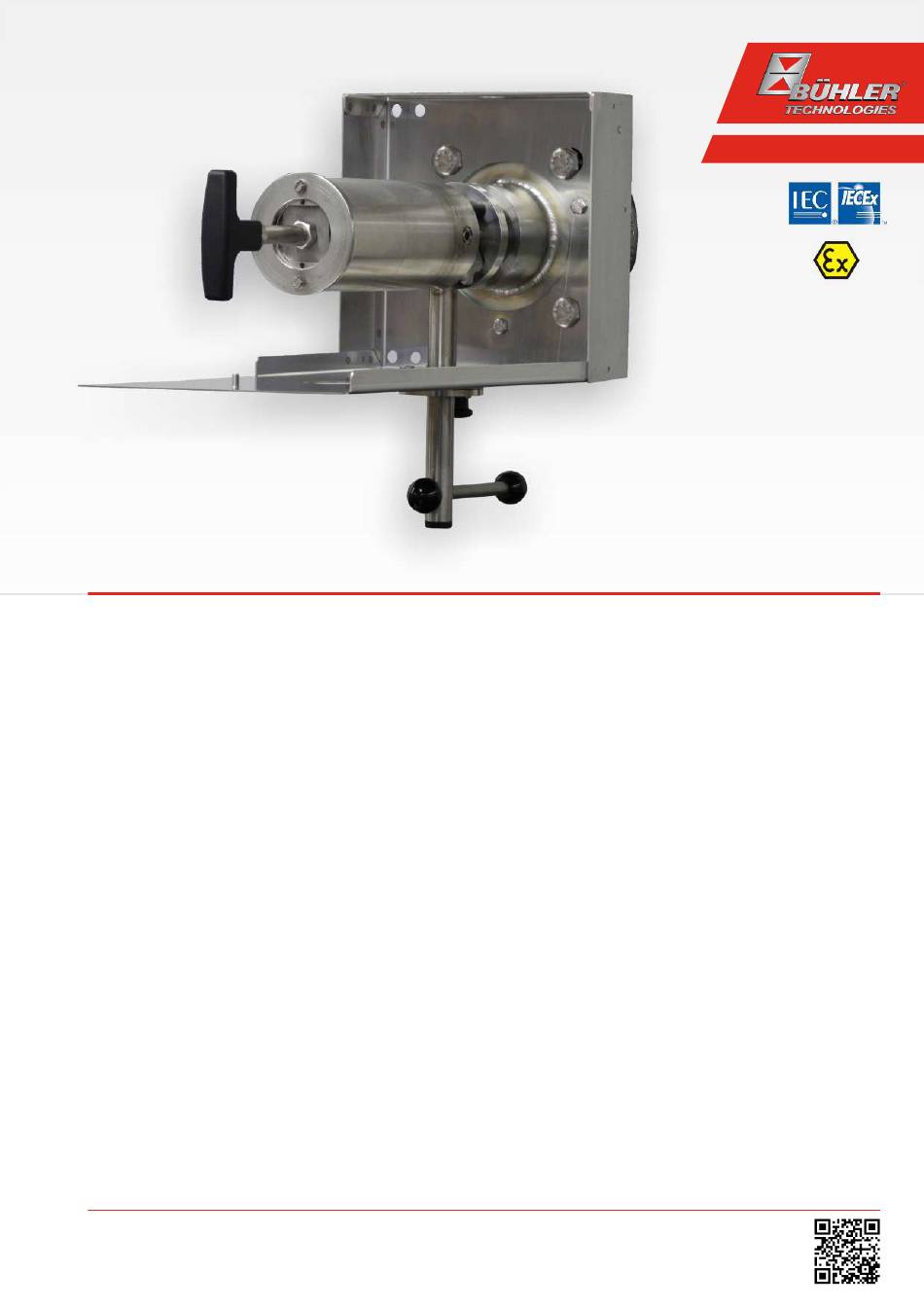

  • Page 1 Gas Analysis Sample gas probes GAS 222.11 Ex2 Installation and Operation Instructions Original instructions BE460063 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen 09/2023 Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 E-Mail: analyse@buehler-technologies.com...
  • Page 2 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 Internet: www.buehler-technologies.com E-Mail: analyse@buehler-technologies.com Read this instruction carefully prior to installation and/or use. Pay at- tention particularly to all advises and safety instructions to prevent in- juries.
  • Page 3: Table Of Contents

    GAS 222.11 Ex2 Table of Contents Introduction .............................................  2 Intended Use.........................................  2 Type Plate.......................................... 2 Contents .......................................... 2 Ordering instructions...................................... 3 Product Description...................................... 3 Safety instructions ......................................... 4 Important Information...................................... 4 General Hazard Warnings .................................... 5 Ambient Temperature range of the equipment ............................ 6 Transport and storage ........................................
  • Page 4: Introduction

    GAS 222.11 Ex2 1 Introduction 1.1 Intended Use The sample gas probe is intended for installation into gas analysis systems in commercial applications. It may be operated in a Zone 2, explosion class IIC, explosive gas atmosphere which is rarely and only temporarily explosive. Zone 2 explosive gas atmospheres may be extracted with or transported with these probes.
  • Page 5: Ordering Instructions

    GAS 222.11 Ex2 1.4 Ordering instructions The item number is a code for the configuration of your unit. Please use the following model key: 4622211 X X X X X X 0 0 X X X X X X Product characteristics...
  • Page 6: Safety Instructions

    GAS 222.11 Ex2 2 Safety instructions 2.1 Important Information This unit may only be used if: – the product is being used under the conditions described in the operating- and installation instructions, used according to the nameplate and for applications for which it is intended. any unauthorized modifications to the device will void the war- ranty provided by Bühler Technologies GmbH,...
  • Page 7: General Hazard Warnings

    GAS 222.11 Ex2 2.2 General Hazard Warnings The maximum surface temperatures of the probes also vary based on operating conditions (steam temperature, sample gas in- let temperature, ambient temperature, fluid flow rate). When used in explosive areas, also particularly note the related hazard warnings.
  • Page 8: Ambient Temperature Range Of The Equipment

    GAS 222.11 Ex2 DANGER Toxic, corrosive gas/condensate Sample gas/condensate may be hazardous to health. a) If necessary, ensure a safe gas/condensate discharge. b) Always disconnect the gas supply when performing maintenance or repairs. c) Protect yourself from toxic/corrosive gasses/condensate when performing mainten- ance.
  • Page 9: Transport And Storage

    GAS 222.11 Ex2 3 Transport and storage Only transport the product inside the original packaging or a suitable alternative. The equipment must be protected from moisture and heat when not in use. They must be stored in a covered, dry and dust-free room at a temperature between -20 °C to 50 °C (-4 °F to 122 °F).
  • Page 10: Installation And Connection

    GAS 222.11 Ex2 4 Installation and connection NOTICE Accessories may limit critical operating parameters of the base unit Adding accessories may limit critical operating parameters. Ambient temperatures, zone classifications, explosion groups, temperature classes or chemical resistances of ac- cessories may vary from the base unit.
  • Page 11: Installing The Downstream Filter

    GAS 222.11 Ex2 4.4 Installing the downstream filter NOTICE The downstream filter and the O-ring for the handle must be inserted prior to first star- tup. Operating without downstream filter prohibited! Attach an O-ring suitable for the expected ambient temperature (see "Spare Parts and Accessories").
  • Page 12: Blowback Connection

    GAS 222.11 Ex2 4.6.1 Blowback Connection Without accessories installed for the blowback device, the blowback connection comes with a sealed G3/8 screw-in connection. If you require blowback, you will need to undo this screw-in connection and ensure the blowback line is connected properly and tight.
  • Page 13: Version With Terminal Box

    GAS 222.11 Ex2 CAUTION Wrong mains voltage Wrong mains voltage may damage the device. Regard the correct mains voltage as given on the type plate. CAUTION Equipment damage Cables damaged Do not damage the cable during installation. Install a strain relief for the cable connec- tion.
  • Page 14: Operation And Control

    GAS 222.11 Ex2 5 Operation and Control NOTICE The device must not be operated beyond its specifications. NOTICE The weather hood (if applicable) must be closed during operation! WARNING Housing or component damage Never exceed the maximum working pressure and temperature range of the drive.
  • Page 15: Maintenance

    GAS 222.11 Ex2 6 Maintenance – Damaged parts must be replaced immediately. – Regularly check the function of the electrical protection. During maintenance, remember: – The equipment must be maintained by a professional familiar with the safety requirements and risks.
  • Page 16: Maintaining The Filter Element

    GAS 222.11 Ex2 CAUTION Excess pressure The unit mustn’t be pressurised or energised when opened. If necessary, close the gas supply and ensure a safe pressure on the process end before opening. CAUTION Drive pressurised Never loosen or remove the cover or any accessories with the drive pressurised.
  • Page 17: Replacing The Upstream Filter

    GAS 222.11 Ex2 6.1.2 Replacing the upstream filter The probe can be equipped with both an upstream filter as well as an downstream filter. When sampling flammable gases, ni- trogen (inert gas) must be used for blowback. Blowback of explosive gases is prohibited.
  • Page 18: Manual Blowback (Without Blowback Control)

    GAS 222.11 Ex2 6.2.1 Manual Blowback (Without Blowback Control) The shut-off valve in the air supply (inert gas supply) to the pressure vessel must be open. The optional pressure gauge on the pressure vessel shows the current operating pressure. – To blowback, first close the shut-off valve in the gas probe (handle below the probe/weather hood).
  • Page 19: Service And Repair

    GAS 222.11 Ex2 7 Service and repair This chapter contains information on troubleshooting and correction should an error occur during operation. Repairs to the unit must be performed by Bühler authorised personnel. Please contact our Service Department with any questions: Tel.: +49-(0)2102-498955 or your agent...
  • Page 20: Disposal

    GAS 222.11 Ex2 8 Disposal The applicable national laws must be observed when disposing of the products. Disposal must not result in a danger to health and environment. The crossed out wheelie bin symbol on Bühler Technologies GmbH electrical and electronic products indicates special disposal notices within the European Union (EU).
  • Page 21: Appendices

    GAS 222.11 Ex2 9 Appendices 9.1 Technical Data Gas Probe Technical Data Ambient temperature without accessories: -20 to +80 °C Ambient temperature for accessories: Component Ambient temperature range Valve for pressurized air: -30 °C < T < +55 °C Solenoid valve for pneumatic actuator: -10 °C <...
  • Page 22: Terminal Diagram Terminal Box Limit Switch

    GAS 222.11 Ex2 9.3 Terminal Diagram Terminal Box Limit Switch OPEN CLOSED The connection diagram shows the limit switch box in the intermediate position. Switches not actuated. 9.4 Flow chart 20 Bühler Technologies GmbH BE460063 ◦ 09/2023...
  • Page 23: Dimensions

    GAS 222.11 Ex2 9.5 Dimensions BE460063 ◦ 09/2023 Bühler Technologies GmbH...
  • Page 24: List Of Chemical Resistance

    GAS 222.11 Ex2 9.6 List of chemical resistance Materials of your device in contact with media are printed on the type plate. Formula Medium Concentration Teflon® FFKM Viton® PTFE COCH Acetone Benzol Chlorine 10 % wet Chlorine 97 % Ethane...
  • Page 25: User Book (Please Make Copies)

    GAS 222.11 Ex2 9.7 User book (Please make copies) Maintained on Unit no. Operating hours Remarks Signature BE460063 ◦ 09/2023 Bühler Technologies GmbH...
  • Page 26: Attached Documents

    GAS 222.11 Ex2 10 Attached Documents – Type Examination Certificate IBExU17ATEXB007X – Certificate IECEx IBE 17.0002X – Declaration of Conformity KX460027 – Accessories Data Sheet 461099 – RMA - Decontamination Statement Bühler Technologies GmbH BE460063 ◦ 09/2023...
  • Page 39 IECEx Certificate of Conformity _ _ _ _ _ INTERNATIONAL ELECTROTECHNICAL COMMISSION IEC Certification System for Explosive Atmospheres for rules and details of the IECEx Scheme visit www.iecex.com IECEx IBE 17.0002X Certificate history: Certificate No.: Page 1 of 5 Issue 0 (2017-06-30) Current Status: Issue No: 1...
  • Page 40 IECEx Certificate of Conformity ____________(1 IECEx IBE 17.0002X Page 2 of 5 Certificate No.: Issue No: 1 Date of issue: 2021-03-09 Manufacturer: Bühler Technologies GmbH Harkortstr. 29 40880 Ratingen Germany Additional manufacturing locations: This certificate is issued as verification that a sample(s), representative of production, was assessed and tested and found to comply with the IEC Standard list below and that the manufacturer's quality system, relating to the Ex products covered by this certificate, was assessed and found to comply with the IECEx Quality system requirements.This certificate is granted subject to the conditions as set out in IECEx Scheme Rules, IECEx 02 and Operational Documents as amended...
  • Page 41 IECEx Certificate of Conformity IECEx IBE 17.0002X Certificate No.: Page 3 of 5 Date of issue: 2021-03-09 Issue No: 1 EQUIPMENT: Equipment and systems covered by this Certificate are as follows: In gas analysis the sample point is a critical interface between the process and the analysis system. Probes are used to take sample gas from the sample point, they can be unheated or heated.
  • Page 42 IECEx Certificate I EC of Conformity Certificate No.: IECEx IBE 17.0002X Page 4 of 5 Date of issue: 2021-03-09 Issue No: 1 Equipment (continued): Change in type code...
  • Page 43 IECEx Certificate of Conformity Page 5 of 5 Certificate No.: IECEx IBE 17.0002X 2021-03-09 Issue No: 1 Date of issue: DETAILS OF CERTIFICATE CHANGES (for issues 1 and above) Change in type code Annex: Annex IECExIBE17_0002X_1.pdf...
  • Page 44 IECEx Certificate IBE* of Conformity - Annex Issue No: 1 Certificate No: IECEx IBE 17.0002X Page 1 of 2 Date of Issue: 2021-03-09 I I I I I 1 4 6 2 2 2 sample probe basis unit GAS 222.10 GAS 222.11 GAS 222.30 GAS 222.35-U...
  • Page 45 IECEx Certificate IBEe of Conformity - Annex 11,1 Certificate No: IECEx IBE 17.0002X Issue No: 1 Date of Issue: 2021-03-09 Page 2 of 2 pressure vessel p u rg e val ve ball valve solenoid valve 110V (marked with "mb") solenoid valve 230V (marked with "mb") solenoid valve 24V (marked with "mb") without...
  • Page 47 Accessories for Sample Gas Probe GAS 222 § Downstream filters § Sample tubes § Capacitive vessel § In-situ filters § Cal gas connections § Pneumatic actuators § Extensions § Adapter flanges § 3/2-way-solenoid valves § Blowback controllers Page 2 - 4 Page 8 Page 5 - 7 For general information, see data sheet “Sample gas probes GAS 222”...
  • Page 48 Sample tubes, in-situ filters and extensions § Various materials § Various dimensions § Heated or nonheated extensions Sample tube T max. Material Length Part No.: 1.4571 462220010300 600°C 300 mm X X X X X X X X X X X X X X 1.4571 500 mm...
  • Page 49 Sample tubes, in-situ filters and extensions § Various materials § Various dimensions § Heated or nonheated extensions In-situ filter Material T max. Length Pore size Part No.: stainless steel 600°C 237 mm 5 µm 46222303 stainless steel 237 mm 0.5 µm 46222303F* 600°C Hastelloy...
  • Page 50 Sample tubes, in-situ filters and extensions § Various materials § Various dimensions § Heated or nonheated extensions Protection shield Part No.: for in-situ filter 03 462223034 for in-situ filter 04 462223044 Extensions Material Mains voltage Length G3/4 nonheated 1.4571 4622230320200 X X X X X X X X X X X X...
  • Page 51 Entnahmerohre / tubes Verlängerungen / extensions ø Unbeheizt / unheated var. G3/4 Тyp var. G3/4 G3/4 0,2-2 m G3/4 var. 21,3 G3/4 G1/2 0,25-1,5m G1/2 var. G3/4 var. G3/4 var. G3/4 ø 02-0,5 24 G3/4 36 Beheizt / heated 02-1,0 1000 24 G3/4 36 Тyp ø...
  • Page 52 Blowback § With ball valve or solenoid valve § Heated or nonheated § Manuell or automatic contro Ambient Capacitive vessel Part No.: temperature PAV 01 46222PAV Accessories for capacitive vessel ball valve 46222PAVKH 2/2-way-MV 24VDC* -10 ... +55°C 46222PAVMV1 2/2-way-MV 110V 50Hz -10 ...
  • Page 53 Details: A) Blowback Ordering note for capacitive vessel: For attachment to GAS 222.11 / 30 / 35-U, a support is required. Ordering note for pneumatic actuator: If a blowback controller is required, only actuator P/N 46222030 is possible. We advise the installation of a position indicator switch to control the pneumatic actuator. Integrated blowback controller in the probe controller In addition to the stand-alone blowback controller (RRS), an integrated blowback controller is optionally available...
  • Page 55 Downstream filter elements and further options Downstream filter Part no.: Material O-Rings Pore size 46222026 Ceramics Viton 3 µm X X X X X X X X X X X X X X Ceramics 3 µm 46222026P X X X X X X X X X X X X X X...
  • Page 56 RMA-Formular und Erklärung über Dekontaminierung RMA-Form and explanation for decontamination RMA-Nr./ RMA-No. Die RMA-Nr. bekommen Sie von Ihrem Ansprechpartner im Vertrieb oder Service. Bei Rücksendung eines Altgeräts zur Entsorgung tragen Sie bitte in das Feld der RMA-Nr. "WEEE" ein./ You may obtain the RMA number from your sales or ser- vice representative.
  • Page 57 Dekontaminierungserklärung DE000011 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen 12/2022 Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 E-Mail: service@buehler-technologies.com Internet: www.buehler-technologies.com...
