Toa AS-100A Specifications

TOA INSTITUTIONAL COMMUNICATION SYSTEM
DESCRIPTION

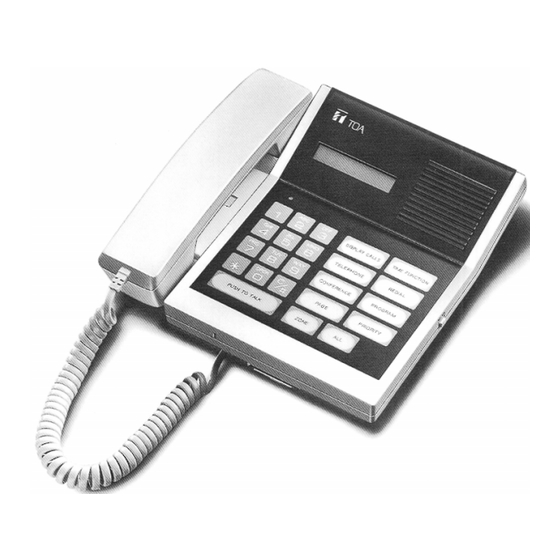

The AS-100A control station with handset is constructed of
high impact ABS, and controls all communication to remote
sub-station handsets and/or speakers. The AS-100A also
controls paging and time functions for the entire system,
which are all indicated with the integrated LCD display.
The AS-100A measures 8.5" (216mm)(W) x
2.8" (69.5mm)(H) x 8.2"(208mm)(D) and weighs
2.2lbs. (960g).
FEATURES
1. Full-duplex communication with remote sub-station
handsets and other AS-100A units.
CONTROL STATION
AS-100A
2. Half-duplex communication with remote sub-station
speakers.
3. Full outside (C/O) telephone line functions.
4. 12-digit LCD shows dialing data, displays priorities,
current time, and messages from personal computer.
5. High/Low selectable speaker volume control.
6. Direct connection of external microphone or headset.
7. Membrane keypad.
8. Controls all paging functions.
9. Controls all time signal functions.
10. Jack for 4-pin STD Modular telephone plug connection.
11. Provides 3-party conferencing.
12. Programming from keypad.
13. Desk or wall mountable.
14. Uses 22-24 AWG, two (2) pair twisted wire.
15. Initiates Duress Alarm.
