Toa ER-1215 Instruction Manual

MEGAPHONES
Thank you for purchasing TOA's Megaphones.
Please carefully follow the instructions in this manual to ensure
long, trouble-free use of your equipment.
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read all the
instructions in this section for correct and safe operation.
• Be sure to follow all the precautionary instructions in this
section, which contain important warnings and/or
cautions regarding safety.
• After reading, keep this manual handy for future
reference.
CAUTION
Indicates a potentially hazardous situation which,
if mishandled, could result in moderate or minor
personal injury, and/or property damage.
• Cautions on Use
Be sure to observe the following instructions. Failing to
observe may cause hearing impairment.
· Reduce the volume to its lowest setting before use.
· Never use the megaphone in close proximity to a
person's ear.
· Point the megaphone toward the ground when
conducting operational tests.
• Make sure to observe the following handling precautions
so that a fire or personal injury does not result from
leakage or explosion of the battery.
· Do not short, disassemble, heat nor put the battery into
a fire.
· Avoid using both new and old batteries together.
· Never charge batteries of the type which are not
rechargeable.
· Do not solder a battery directly.
· Be sure to use the specified type of batteries.
· Note correct polarity (positive and negative orientation)
when inserting a battery in the unit.
· Avoid locations exposed to the direct sunlight, high
temperature and high humidity when storing batteries.

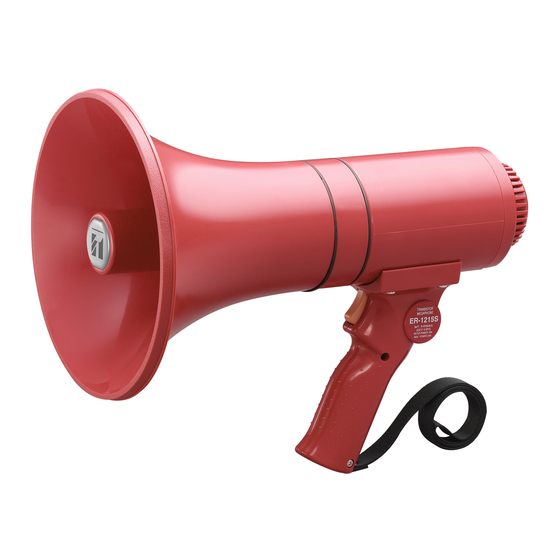

2. GENERAL DESCRIPTION
15 W megaphones.
The ER-1215S is equipped with a siren switch.
Handle and mouthpiece with anti-bacteria treatment improve
hygiene and safety during use.
INSTRUCTION MANUAL
ER-1215
ER-1215S
3. HANDLING PRECAUTIONS
• The ER-1215/1215S megaphones are not waterproof.
Avoid exposure to rain or environments where it may be
splashed by water or other liquids.
• Immediately contact your TOA dealer if the following
irregularities should occur. To avoid unit failure, make no
further attempt to use the unit in these conditions.
· Smoke coming from the unit or a strange smell detected.
· Water or other foreign objects get inside the unit.
· No sound heard (after checking to be sure that the batteries
are loaded in correct orientation, and satisfactorily charged).
• Avoid storing the unit in humid or dusty locations, in locations
exposed to direct sunlight, near heaters, or exposed to sooty
smoke, as these conditions may result in unit failure.
• When batteries are left installed in the megaphone for extended
periods of time, be sure to check them periodically for charge
and leakage.
• Do not use the unit for extended periods of time with a distorted
sound output. This could cause the inner parts to become hot
and possibly result in unit failure.
• Noise may be produced when a mobile phone is used near the
unit. However, this is not a failure. Use the mobile phone as far
as possible from the unit.
• Use a tightly wrung-out damp cloth to clean the unit. If the unit
becomes extremely dirty, use a cloth moistened in a neutral
detergent and tightly wrung-out. Never use volatile liquids such
as benzene or thinner to clean the unit, as these may deform or
discolor its case.
4. SPECIFICATIONS
Model No.
Power Source
Output
Signal
Battery Life* 2
(approx.)
Audible Range*
3
(approx.)
Diaphragm
Anti-bacteria Treatment
Operating Temperature
Finish Horn ABS resin, light gray
Others ABS resin, gray
Dimensions
Weight
(without batteries)
* 1
Sounds at 5 seconds intervals.
* 2 Battery life estimates assume 30 minutes of continuous use
per day.
* 3 Audible range estimates assume use on a relatively quiet
street using new batteries and will vary depending on
remaining battery capacity, surrounding noise, wind direction,
obstacles and other environmental conditions.
Notes
• No accessory batteries are supplied.
• The design and specifications are subject to change without
notice for improvement.
ER-1215 ER-1215S
C (R14P) battery x 6 (9 V DC)
Rated 15 W, Max. 23 W
– Siren*
Voice: 14 hours Voice: 14 hours
Signal: 20 minutes
Voice: 315 m Voice: 315 m
Signal: 500 m
Polyimide film (voice coil, bobbin)
Mouth and handle
–10°C to +40°C
ABS resin, red
210 (w) x 291 (h) x 346 (d) mm
1.1 kg 1.2 kg
(without batteries)
1
