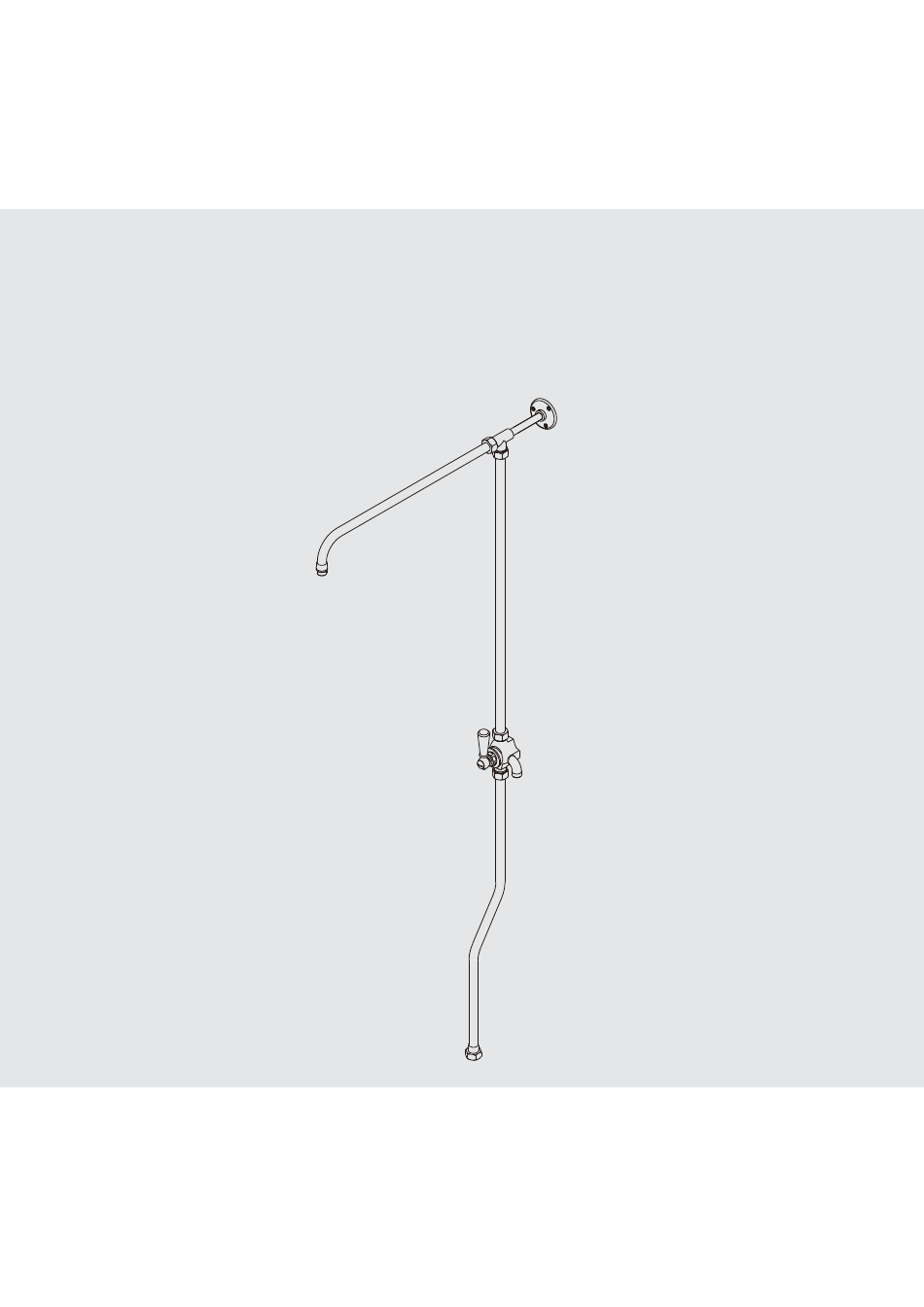

- Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS CW-4624...
-
Page 2: Table Of Contents
Contents Dimensions Instal ation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee... -
Page 3: Dimensions
Dimensions in Inches (& Millimetres) Ø2 3/4" (70mm) 5 3/16 " (131.5mm) 20 7/8 " (530mm) 3/4" 1/2-14NPSM-2A (19mm) 3 1/8 " (80mm) 3/4-14NPSM-2B Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process. -
Page 4: Instal Ation Procedure
Installation Procedure Steps 1-2 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Product shown as example only Fix riser kit with shower cradle of choice (model shown is for example only) by fixing the set screw. - Page 5 Installation Procedure Step 3 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Put the compression olive into the riser bracket and then fix the riser with the bracket. Put the compression olive into the diverter body and then fix the riser with the diverter body.
- Page 6 Installation Procedure Steps 4-5 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Product shown as example only Product shown as example only Product shown as example only Fix riser kit to the faucet of choice (model shown is for example only). Then fix the riser kit with the wall bracket by tightening the set screw.
-
Page 7: Parts List
Parts List Exploded view Oil seal (010077) Slotted head (008247) Screw (008706) Oil seal (009078) Screw (008245) Wall bracket (120289) Riser kit (064296) Lever seat (205461) Plastic anchor (291000) Body (066014) Screw (017094) Hex socket set screw (008003) Diverter Cartridge (507775N) Lever (108924) Connecting tube (017981) O-ring (072055N) -
Page 8: Fault Finder
Fault Finder Fault Cause Rectification Leaks around diverter. Cartridge has come loose or Tighten/reinstall the cartridge or damaged. replacement the cartridge if it is damaged. Leaks around the connection Gasket is misfitted or damaged. Check for gasket placement. between leg and faucet. -
Page 9: Safety Tips, Care And Maintenance
Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation. -
Page 10: Guarantee
Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges. - Page 11 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
