YOSHINO B2000 SST User Manual

Solid-state portable power station
Hide thumbs Also See for B2000 SST:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
B2000 SST
Solid-State Portable Power Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B2000 SST and is the answer not in the manual?

Questions and answers

Related Manuals for YOSHINO B2000 SST

Summary of Contents for YOSHINO B2000 SST

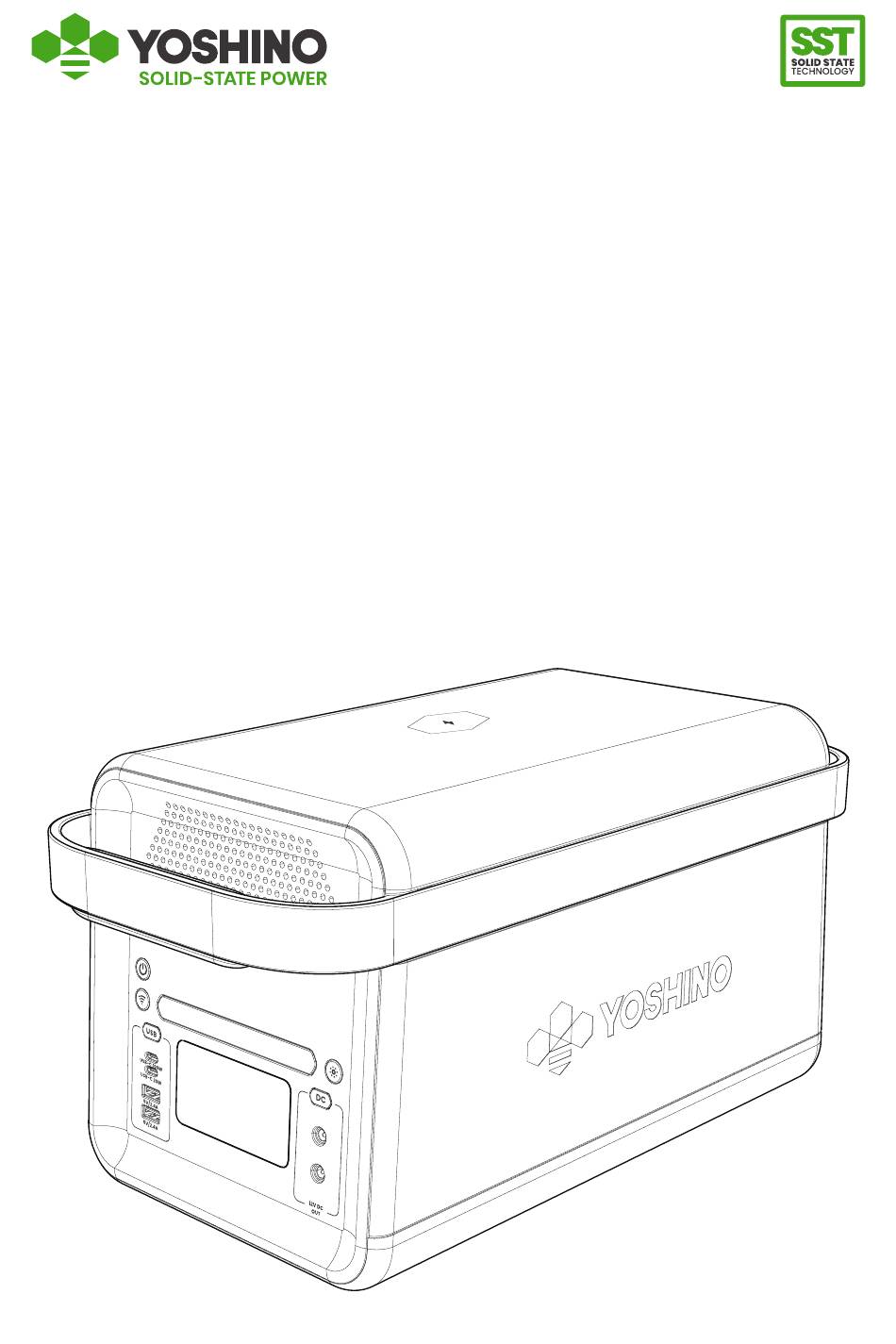

  • Page 1 User Manual B2000 SST Solid-State Portable Power Station...
  • Page 2 Yoshino products in a way that is compliant. Yoshino recommends that you use genuine Yoshino accessories. Yoshino shall not be responsible for any damage or expense that might result from the use of parts other than genuine Yoshino parts.

  • Page 3: Table Of Contents

    CONTENT 1. What’s in the Box 2. Safety Instructions 03-05 3. Overview 06-07 4. Recharging Your Portable Power Station 4.1 AC Charging 4.2 Car Charging 4.3 Solar Charging 5. Operation 5.1 Power Button 5.2 APP Connectivity 5.3 LED Light Bar 5.4 AC Output 5.5 USB Output 5.6 DC Output...

  • Page 4: What's In The Box

    1. What’s in the Box B2000 SST AC Recharge Cable Portable Power Station ( 5.9 ft / 1.8 m ) Cigarette Car Solar Charging Cable Charging Cable MC4 to XT60 ( 9.8 ft / 3 m ) ( 9.8 ft / 3 m )

  • Page 5: Safety Instructions

    To reduce the risk of injury, close supervision is necessary when the product is used near children. c) Do not put fingers or hands into the product. d) Use of an attachment not recommended or sold by Yoshino Technology may result in a risk of fire, electric shock, or injury to persons.
  • Page 6 n) Do not use the product in an environment with strong static electricity/magnetic fields. o) Do not drop or allow the product to fall. If the product has any kind of severe external impact, turn the power off immediately and stop using the product. Dispose of the product properly. p) Do not put heavy objects on top of the product.
  • Page 7 Disposal Guide 1. If possible, fully discharge the battery before disposal in a designated battery recycling bin. It is strictly prohibited to dispose of this product in regular trash bins. Batteries contain chemicals that could be dangerous if not disposed of properly. Please consult your local laws and regulations on battery recycling and disposal.

  • Page 8: Overview

    3. Overview Main Power Button LED Light Bar LED Light Button APP Connectivity Button USB Power Button DC Power Button USB-C Output Ports DC Output Ports USB-A Output Ports LCD Screen Solar/Car Input Port AC Input Port Overload Protection AC Power Button AC Outlet Ports Wireless Charging Pad Tech support based in the USA!
  • Page 9 APP Connectivity Low Temp Warning High Temp Warning Battery Failure Warning Car/Solar Input AC Input Overload Warning Input Power Output Power AC Output Battery Percentage USB-C PD Output Remaining Time DC Output Recharging Time USB-C Output USB-A Output Wireless Charging LCD Screen Guide Tech support based in the USA! 1 (800) 513-2797 customersupport@YoshinoPower.com...

  • Page 10: Recharging Your Portable Power Station

    Please use the AC Charging Cable included in the package for fast charging. Plug directly into AC wall outlet and make sure that the wall outlet output voltage is 110-125V. Yoshino takes no responsibility for any consequences caused by failure to follow instructions, including but not limited to charging with other AC charging cables.

  • Page 11: Solar Charging

    Yoshino SP100 (100W) or Yoshino SP200 (200W) solar panels (not included) can quickly charge the device to 80% in around 2.5 hours (Using 3 SP200 Solar Panels). When using a Yoshino solar panel to charge the product, please follow the instructions that come with the solar panel.

  • Page 12: Led Light Bar

    5.3 LED Light Bar Press and hold the LED Light Button for 1.5 seconds until the LED light turns on. Press and hold the button for 1.5 seconds again to turn the LED light off. 5.4 AC Output *2000W Press and hold the AC Power Button for 1.5 seconds until the button lights. Press and hold the button for 1.5 seconds again to turn off power to the AC outlets.

  • Page 13: Dc Output

    UPS. We recommend that you only charge one device at a time and avoid using multiple devices simultaneously to avoid triggering overload protection. Yoshino assumes no responsibility for any device failures or data losses caused by misuse of this product.

  • Page 14: Ups

    7. Specifications GENERAL Battery Type Capacity Cycle Life 1326Wh, Solid State 2500 Cycles to 40.92V, 32.4Ah Li-NCM 16.2Ah 80%+ Capacity Warranty AC Output (Rated) AC Output (Max) 2000W 3000W 5 Years Net Weight Dimension 31.3 lbs 17.5 x 8.6 x 9.1 inches 14.2 kg 445 x 218 x 231 mm INPUT...

  • Page 15: Warranty

    Yoshino Return & Refund Policy Yoshino Return & Refund Policy We are proud to have you join the Yoshino Solid-State Evolution and appreciate your support! Just in We are proud to have you join the Yoshino Solid-State Evolution and appreciate your support! Just in...
  • Page 16 When receiving service, Yoshino Technology, Inc. is responsible for loss or damage to your product only when it is in Yoshino’s possession. It is not responsible for any loss or damage that may occur in transit. when it is in Yoshino’s possession. It is not responsible for any loss or damage that may occur in transit.

  • Page 17: Troubleshooting

    Yoshino customer service. If the alarm prompt appears on the product LCD screen during use and remains on the screen after a restart, please stop using the product immediately. Please contact Yoshino Customer Service for further assistance. Tech support based in the USA! 1 (800) 513-2797 customersupport@YoshinoPower.com...

  • Page 18: Faq

    The calculation would be 602wh x 0.95 x 0.9 / 60W = 8.5 hours. 4. Can the B2000 SST charge and discharge at the same time? Yes, the B2000 SST can charge and discharge at the same time. Please keep the equipment on a level surface during use, charging, and discharging.

  • Page 19: Fcc Warning

    11. FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s warranty to operate the equipment.

  • Page 20: Tech Support Based In The Usa

    For FAQs and more information, please Visit: YoshinoPower.com Yoshino Technology Inc. Tech support based in the USA! 1 (800) 513-2797 customersupport@YoshinoPower.com Operating hours are 8:00 am - 4:30 pm PST (M-F). 18529 East Gale Avenue, City of Industry, CA 91748...
