Summary of Contents for YOSHINO B330 SST

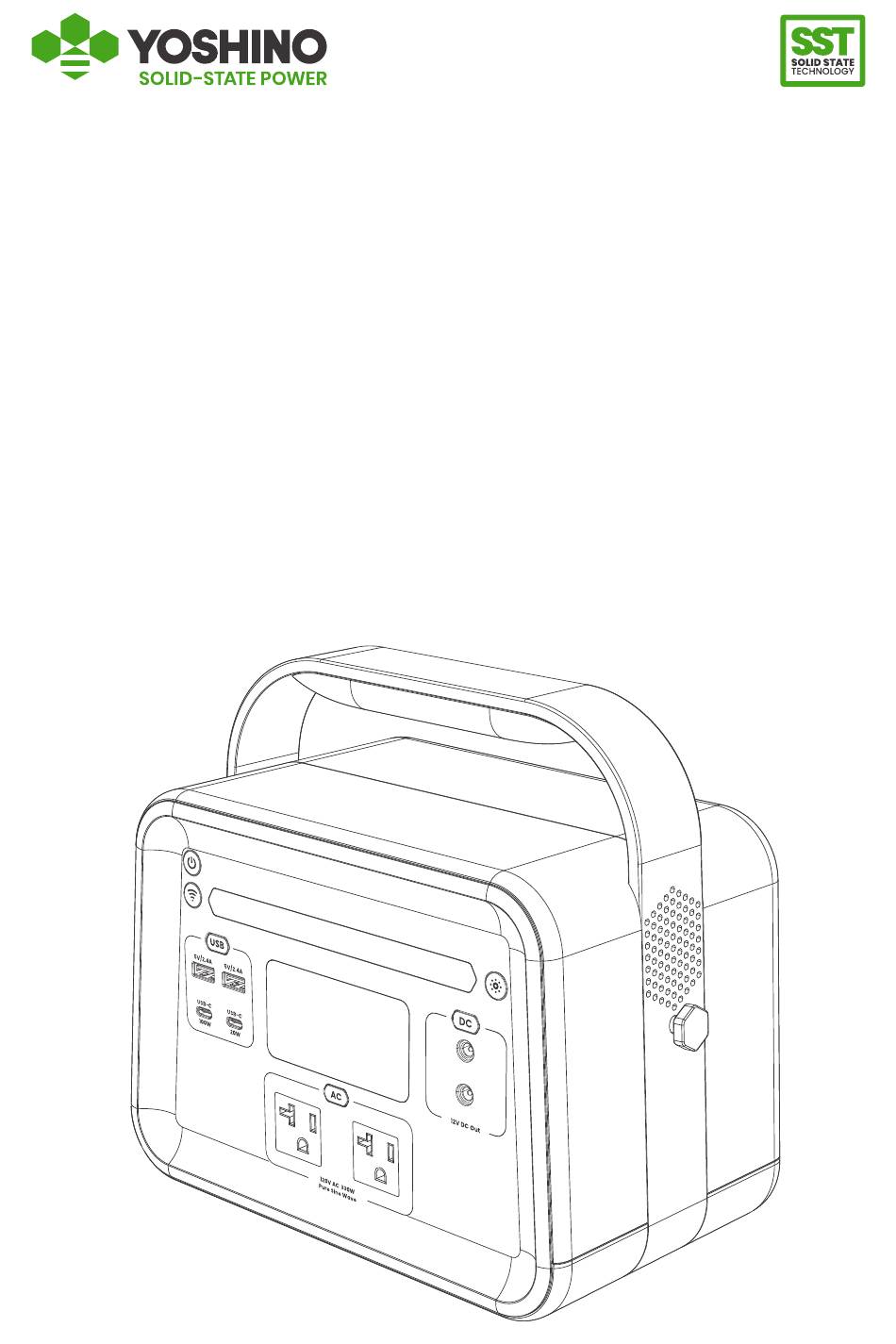

- Page 1 User Manual B330 SST Solid-State Portable Power Station...
- Page 2 Yoshino products in a way that is compliant. Yoshino recommends that you use genuine Yoshino accessories. Yoshino shall not be responsible for any damage or expense that might result from the use of parts other than genuine Yoshino parts.
-
Page 3: Table Of Contents
CONTENT 1. What’s in the Box 2. Safety Instructions 03-05 3. Overview 06-07 4. Recharging Your Portable Power Station 4.1 AC Charging 4.2 Car Charging 4.3 XT60 Input 4.4 USB-C PD Charging 5. Operation 5.1 Power Button 5.2 APP Connectivity 5.3 LED Light Bar 5.4 AC Output 5.5 USB Output... -
Page 4: What's In The Box
1. What’s in the Box B330 SST AC to DC Recharge Adapter Portable Power Station (Two Parts) Cigarette Car XT60 Input Cable Charging Cable MC4 to XT60 ( 9.8 ft / 3 m ) ( 4.9 ft / 1.5 m ) -
Page 5: Safety Instructions
To reduce the risk of injury, close supervision is necessary when the product is used near children. c) Do not put fingers or hands into the product. d) Use of an attachment not recommended or sold by Yoshino Technology may result in a risk of fire, electric shock, or injury to persons. - Page 6 n) Do not use the product in an environment with strong static electricity/magnetic fields. o) Do not drop or allow the product to fall. If the product has any kind of severe external impact, turn the power off immediately and stop using the product. Dispose of the product properly. p) Do not put heavy objects on top of the product.
- Page 7 Disposal Guide 1. If possible, fully discharge the battery before disposal in a designated battery recycling bin. It is strictly prohibited to dispose of this product in regular trash bins. Batteries contain chemicals that could be dangerous if not disposed of properly. Please consult your local laws and regulations on battery recycling and disposal.
-
Page 8: Overview
3. Overview Main Power Button LCD Screen LED Light Bar APP Connectivity Button LED Light Button USB Power Button DC Power Button USB-A Output Ports DC Output Ports USB-C PD Input/Output Ports AC Power Button USB-C Output Ports AC Outlet Ports XT60 Input Port AC to DC Adapter Input Port Shoulder Strap Hook... - Page 9 APP Connectivity Low Temp Warning High Temp Warning Battery Failure Warning Overload Warning DC/Car/XT60/USB-C PD Input Input Power Output Power Battery Percentage AC Output Remaining Time USB-C PD Output DC Output Recharging Time USB-C Output USB-A Output LCD Screen Guide Tech support based in the USA! 1 (800) 513-2797 customersupport@yoshinopower.com Operating hours are 8:00 am - 4:30 pm PST (M-F).
-
Page 10: Recharging Your Portable Power Station
Please use the AC to DC recharge adapter cable included in the package, plug directly into an AC wall outlet and make sure that the wall outlet output voltage is 110-125V. Yoshino takes no responsibilities for any consequences caused by failures to follow instructions, including but not limited to charging with other AC to DC recharge adapter cable. -
Page 11: Xt60 Input
3 Hrs *Note: Using Yoshino SP100 (100W) (not included) can charge the device to 80% in around 3 hours. When using a Yoshino SP100 (100W) to charge the product, please follow the instructions that come with the Yoshino SP100 (100W). -
Page 12: Operation
5. Operation 5.1 Power Button Press and hold the main power button for 2 seconds to turn on the product. The LCD screen will light up and the main power indicator will turn pulse white. Press and hold the main power button again for 2 seconds to turn the device off. -
Page 13: Ac Output
5.4 AC Output *330W Press and hold the AC Power Button for 1.5 seconds until the button lights. Press and hold the button for 1.5 seconds again to turn off power to the AC outlets. *Note: When the portable power station is connected to a refrigerator or other device that needs to have a continuous power supply, set the AC output to “Always on”... -
Page 14: Specifications
6. Specifications GENERAL Battery Type Capacity Cycle Life 241Wh, Solid State 2500 Cycles to 14.88V, 16.2Ah Li-NCM 16.2Ah 80%+ Capacity Warranty AC Output (Rated) AC Output (Max) 330W 480W 5 Years Net Weight Dimension 9.9 lbs 10 x 6.1 x 9.5 inches 4.5 kg 255 x 156 x 242 mm INPUT... -
Page 15: Warranty
Yoshino Return & Refund Policy Yoshino Return & Refund Policy We are proud to have you join the Yoshino Solid-State Evolution and appreciate your support! Just in We are proud to have you join the Yoshino Solid-State Evolution and appreciate your support! Just in... - Page 16 When receiving service, Yoshino Technology, Inc. is responsible for loss or damage to your product only when it is in Yoshino’s possession. It is not responsible for any loss or damage that may occur in transit. when it is in Yoshino’s possession. It is not responsible for any loss or damage that may occur in transit.
-
Page 17: Troubleshooting
Yoshino customer service. If the alarm prompt appears on the product LCD screen during use and remains on the screen after a restart, please stop using the product immediately. Please contact Yoshino Customer Service for further assistance. Tech support based in the USA! 1 (800) 513-2797 customersupport@yoshinopower.com... -
Page 18: Faq
The calculation would be 602wh x 0.95 x 0.9 / 60W = 8.5 hours. 4. Can the B330 SST charge and discharge at the same time? Yes, the B330 SST can charge and discharge at the same time. Please keep the equipment on a level surface during use, charging, and discharging. -
Page 19: Fcc Warning
10. FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s warranty to operate the equipment. -
Page 20: Tech Support Based In The Usa
For FAQs and more information, please Visit: yoshinopower.com Yoshino Technology Inc. Tech support based in the USA! 1 (800) 513-2797 customersupport@yoshinopower.com Operating hours are 8:00 am - 4:30 pm PST (M-F). 18529 East Gale Avenue, City of Industry, CA 91748...
