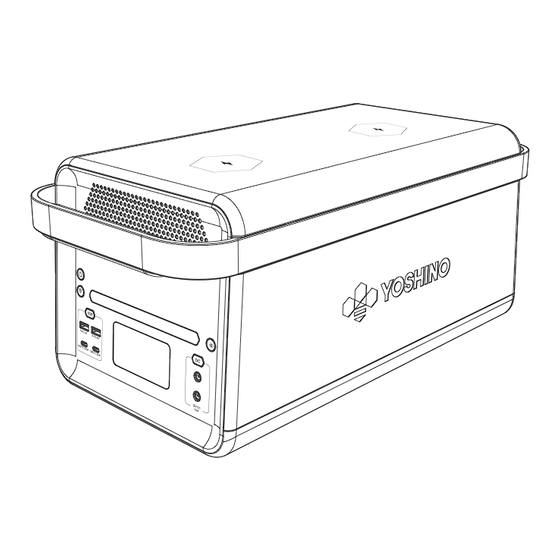

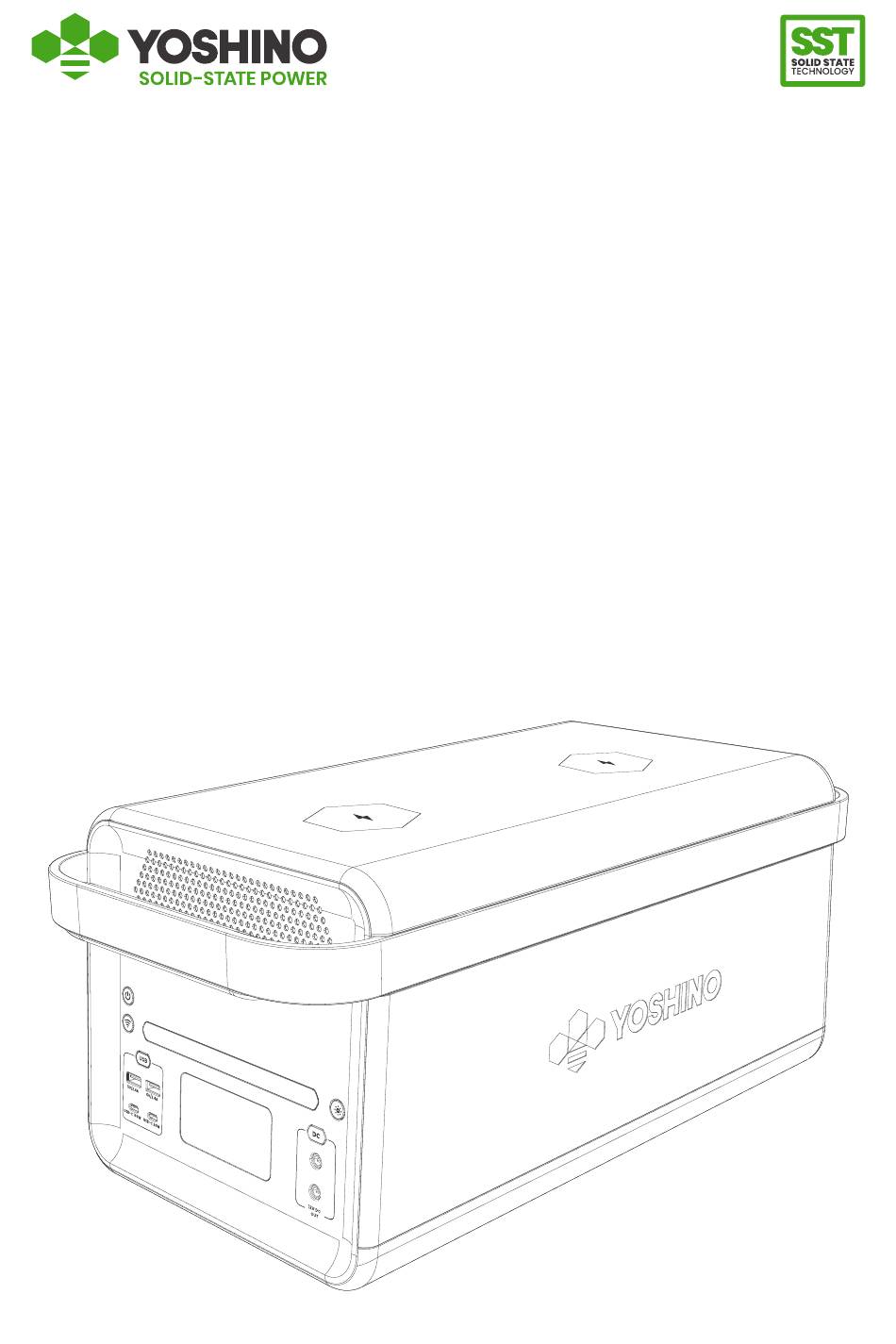

- Page 1 User Manual B4000 SST Solid-State Portable Power Station...
- Page 2 Yoshino products in a way that is compliant. Yoshino recommends that you use genuine Yoshino accessories. Yoshino shall not be responsible for any damage or expense that might result from the use of parts other than genuine Yoshino parts.
-
Page 3: Table Of Contents
CONTENT 1. What’s in the Box 2. Safety Instructions 03-04 3. Overview 05-06 4. Recharging Your Portable Power Station 4.1 AC Charging 4.2 Car Charging 4.3 Solar Charging 5. Operation 5.1 Power Button 5.2 APP Connectivity 5.3 LED Light Bar 5.4 AC Output 5.5 USB Output 5.6 DC Output... -
Page 4: What's In The Box
1. What’s in the Box B4000 SST AC Recharge Cable Portable Power Station ( 5.9 ft / 1.8 m ) Cigarette Car Solar Charging Cable Charging Cable MC4 to XT60 ( 9.8 ft / 3 m ) ( 4.9 ft / 1.5 m ) -
Page 5: Safety Instructions
To reduce the risk of injury, close supervision is necessary when the product is used near children. c) Do not put fingers or hands into the product. d) Use of an attachment not recommended or sold by Yoshino Technology may result in a risk of fire, electric shock, or injury to persons. - Page 6 Grounding Instructions This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment grounding conductor and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes ordinances.
-
Page 7: Overview
3. Overview Main Power Button LED Light Bar LED Light Button APP Connectivity Button USB Power Button DC Power Button USB-A Output Ports DC Output Ports USB-C Output Ports LCD Screen Solar/Car Input Port AC Input Port Overload Protection Smart Link Circuit Breaker AC Power Button TT-30R Outlet Ports... - Page 8 APP Connectivity Low Temp Warning High Temp Warning Battery Failure Warning Car/Solar Input AC Input Overload Warning Input Power Output Power AC Output Smart Link USB-C PD Output Battery Percentage DC Output Remaining Time USB-C Output Recharging Time USB-A Output Wireless Charging LCD Screen Guide Tech support based in the USA!
-
Page 9: Recharging Your Portable Power Station
Please use the AC Charging Cable included in the package for fast charging. Plug directly into AC wall outlet and make sure that the wall outlet output voltage is 110-125V. Yoshino takes no responsibility for any consequences caused by failure to follow instructions, including but not limited to charging with other AC charging cables. -
Page 10: Solar Charging
Yoshino SP100 (100W) or Yoshino SP200 (200W) solar panels (not included) can quickly charge the device to 80% in around 4.5 hours. When using a Yoshino solar panel to charge the product, please follow the instructions that come with the solar panel. -
Page 11: Led Light Bar
5.3 LED Light Bar Press and hold the LED Light Button for 1.5 seconds until the LED light turns on. Press and hold the button for 1.5 seconds again to turn the LED light off. 5.4 AC Output *4000W Press and hold the AC Power Button for 1.5 seconds until the button lights. Press and hold the button for 1.5 seconds again to turn off power to the AC outlets. -
Page 12: Dc Output
UPS. We recommend that you only charge one device at a time and avoid using multiple devices simultaneously to avoid triggering overload protection. Yoshino assumes no responsibility for any device failures or data losses caused by misuse of this product. -
Page 13: Smart Link Technology - Expansion Battery
7. Smart Link Technology - Expansion Battery The B4000 SST can be connected with a Smart Expansion Battery (E2611) to expand capacity to meet most any application via the battery expansion cable. Please refer to the user manual of E2611 Smart Expansion Battery for detailed instructions. -
Page 14: Specifications
8. Specifications GENERAL Battery Type Capacity Cycle Life 2611Wh Solid State 2500 Cycles to 48.36V, 54Ah Li-NCM 54Ah 80%+ Capacity Warranty AC Output (Rated) AC Output (Max) 4000W 6000W 5 Years Net Weight Dimension 53.6 lbs 21.4 x 10.2 x 9.4 inches 24.3 kg 543 x 260 x 240 mm INPUT... -
Page 15: Warranty
Yoshino Return & Refund Policy Yoshino Return & Refund Policy We are proud to have you join the Yoshino Solid-State Evolution and appreciate your support! Just in We are proud to have you join the Yoshino Solid-State Evolution and appreciate your support! Just in... - Page 16 When receiving service, Yoshino Technology, Inc. is responsible for loss or damage to your product only when it is in Yoshino’s possession. It is not responsible for any loss or damage that may occur in transit. when it is in Yoshino’s possession. It is not responsible for any loss or damage that may occur in transit.
-
Page 17: Troubleshooting
Yoshino customer service. If the alarm prompt appears on the product LCD screen during use and remains on the screen after a restart, please stop using the product immediately. Please contact Yoshino Customer Service for further assistance. Tech support based in the USA! 1 (800) 513-2797 customersupport@yoshinopower.com... -
Page 18: Faq
The calculation would be 602Wh x 0.95 x 0.9 / 60W = 8.5 hours. 4. Can the B4000 SST charge and discharge at the same time? Yes, the B4000 SST can charge and discharge at the same time. Please keep the equipment on a level surface during use, charging, and discharging. -
Page 19: Fcc Warning
12. FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s warranty to operate the equipment. -
Page 20: Tech Support Based In The Usa
For FAQs and more information, please Visit: yoshinopower.com Yoshino Technology Inc. Tech support based in the USA! 1 (800) 513-2797 customersupport@yoshinopower.com Operating hours are 8:00 am - 4:30 pm PST (M-F). 18529 East Gale Avenue, City of Industry, CA 91748...
