CipherLab 256 Series Quick Start Manual

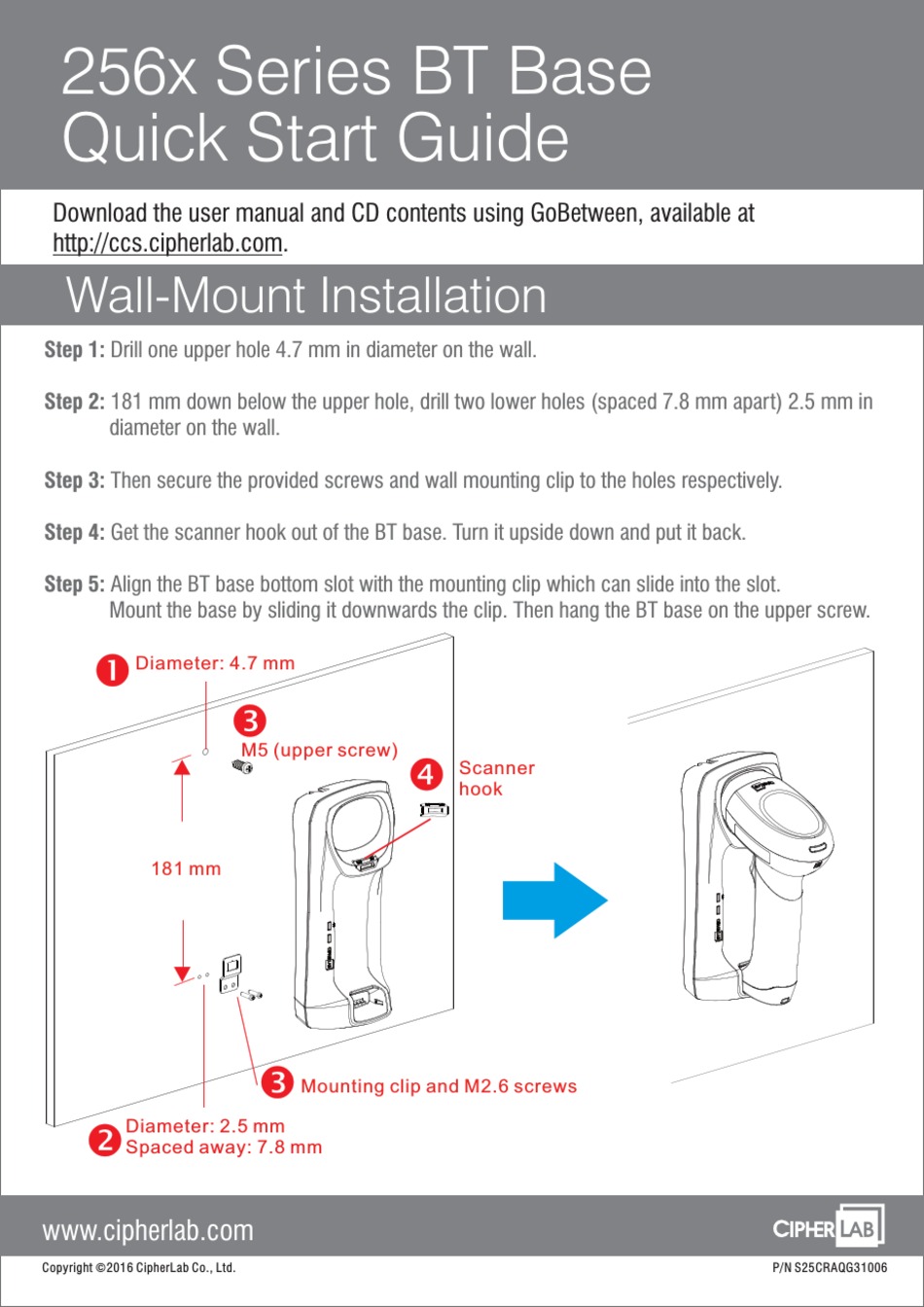

256x Series BT Base
Quick Start Guide
Download the user manual and CD contents using GoBetween, available at
http://ccs.cipherlab.com

Wall-Mount Installation

Step 1:
Drill one upper hole 4.7 mm in diameter on the wall.
Step 2:
181 mm down below the upper hole, drill two lower holes (spaced 7.8 mm apart) 2.5 mm in
diameter on the wall.
Step 3:
Then secure the provided screws and wall mounting clip to the holes respectively.
Step 4:
Get the scanner hook out of the BT base. Turn it upside down and put it back.
Step 5:
Align the BT base bottom slot with the mounting clip which can slide into the slot.
Mount the base by sliding it downwards the clip. Then hang the BT base on the upper screw.
Diameter: 4.7 mm
181 mm
Diameter: 2.5 mm
Spaced away: 7.8 mm
www.cipherlab.com
Copyright ©2016 CipherLab Co., Ltd.
.
M5 (upper screw)
Mounting clip and M2.6 screws
Scanner
hook
P/N S25CRAQG31006
